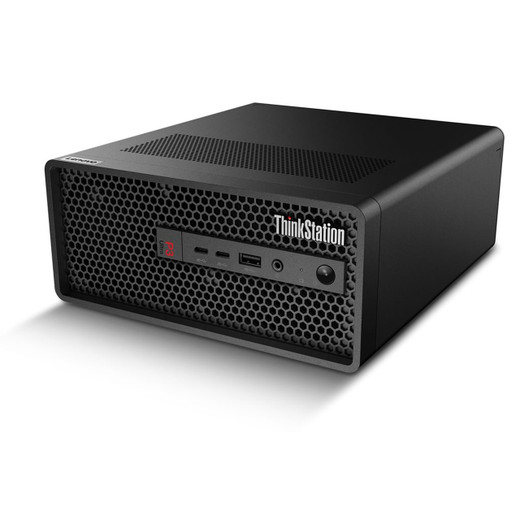

Lenovo 30J5002WUS ThinkStation P3 Ultra Small Form Factor Workstation

Overview

The Lenovo ThinkStation P3 Ultra SFF G2, model 30J5002WUS, is a compact small form factor workstation built around Intel's Core Ultra 5 235 processor — a 14-core, 14-thread chip from Intel's latest architecture that brings genuine workstation-class compute into a chassis that takes up a fraction of the desk or rack space of a traditional tower. For commercial workstations deployments where physical footprint is constrained — branch offices, trading floors, control rooms, or VMS operator stations — this unit delivers meaningful processing headroom without requiring a full-size tower footprint. The 9 lb chassis ships manufactured in Mexico and is positioned as a channel-direct commercial-grade system.

Key Features

• Intel Core Ultra 5 235 — 14 Cores / 14 Threads: The Core Ultra 5 235 is part of Intel's latest hybrid-architecture lineup. 14 cores handling 14 threads simultaneously keeps multi-stream VMS decode, CAD, or data processing tasks running without the scheduler bottlenecks you see on older quad- or hex-core workstations. For operators managing 30+ camera feeds in a video management system, the thread headroom is where you feel the difference.
• 16 GB DDR5-6400 in a Single SO-DIMM Slot: The system ships with one 16 GB DDR5-6400 module in a 2-slot SO-DIMM configuration. DDR5-6400 runs roughly 60% faster memory bandwidth than DDR4-3200, which matters for applications that move large data sets through CPU cache frequently — analytics engines, real-time transcoding, or simulation workloads. The single-module configuration means the second slot is free: you can add another 16 GB stick for dual-channel performance without pulling the existing module.
• Expandable to 128 GB Maximum RAM: The 2× SO-DIMM slots support up to 128 GB total. That ceiling is relevant for workloads that would normally require a rack-mounted server — virtualized VMS servers, edge AI inference with large model weights, or dense multi-tenant environments. A $P3 Ultra at 128 GB is a legitimate alternative to a small server node for the right use case.
• 512 GB PCIe 5.0 NVMe SSD: PCIe 5.0 NVMe delivers sequential read/write speeds in the 10,000+ MB/s range — roughly double what PCIe 4.0 drives achieve. For workstation tasks, this means application load times measured in under a second and near-instant file I/O on large project assets. The 512 GB capacity is adequate for an OS + primary applications; plan on external or network storage if the use case involves local video archiving or large dataset work.
• Small Form Factor (SFF) Chassis: The SFF designation means this unit is designed for environments where a mini-tower or desktop tower won't fit. At 9 lb, it's light enough to VESA-mount behind a monitor or install in a compact rack shelf. Control rooms, compact NOCs, or surveillance operator desks with limited credenza depth are natural homes for this form factor.
• No Optical Drive: The 30J5002WUS ships without an optical drive — a deliberate design tradeoff that keeps the chassis compact. Software deployment via USB or network is assumed. If optical media is a hard requirement, plan for an external USB drive.

Integration and Compatibility

As a Lenovo ThinkStation platform, the P3 Ultra SFF G2 is designed for compatibility with Windows 11 Pro and enterprise management frameworks including Microsoft Endpoint Manager and Intel vPro (verify vPro enablement for this specific SKU before ordering if out-of-band management is required). The DDR5 SO-DIMM memory architecture is standard — replacement or upgrade modules are widely available from multiple vendors. The PCIe 5.0 SSD interface is current-generation; replacement drives are available but confirm M.2 form factor and key type before purchasing. For network video recorder and VMS server deployments, pair this unit with a PoE switch and confirm GPU requirements with your VMS vendor, as dedicated GPU may be needed for hardware-accelerated decoding at high camera counts — the 30J5002WUS configuration listed here does not specify a discrete GPU in the available evidence. Review your surveillance camera system's VMS hardware requirements against the Core Ultra 5 235 specifications before committing to this unit for large-scale decode workloads. For storage planning on longer retention deployments, consider adding a network-attached storage solution alongside this workstation.

Frequently Asked Questions

Q: What processor is in the Lenovo 30J5002WUS?

A: The 30J5002WUS ships with an Intel Core Ultra 5 235, a 14-core, 14-thread processor from Intel's latest hybrid architecture lineup.

Q: Can the RAM be upgraded on the 30J5002WUS?

A: Yes. The system has 2× SO-DIMM slots and ships with a single 16 GB DDR5-6400 module. The second slot is open, and the maximum supported memory is 128 GB total across both slots.

Q: What type of storage does the 30J5002WUS use?

A: The system includes a 512 GB SSD on a PCIe 5.0 interface — the current-generation NVMe standard with sequential speeds in the 10,000+ MB/s range. No optical drive is included.

Q: Is the 30J5002WUS a desktop tower or a compact unit?

A: It is a Small Form Factor (SFF) unit weighing 9 lb — significantly more compact than a standard desktop tower. It is suited for space-constrained deployments such as operator desks, control rooms, or compact office environments.

Q: Where is the Lenovo ThinkStation P3 Ultra SFF G2 manufactured?

A: The 30J5002WUS is manufactured in Mexico (Country of Origin: MX) per distribution channel data.

Karl Wilson

The 30J5002WUS stands out to me specifically because of that PCIe 5.0 SSD interface — it's not a spec you see standardized across commercial workstations at this price tier yet, and it meaningfully changes application responsiveness on I/O-heavy workloads. Paired with the Core Ultra 5 235's 14-thread compute budget, this is a machine that handles concurrent VMS client sessions, analytics dashboards, and OS overhead without the performance cliff you hit when CPU threads are exhausted on older 6- or 8-core platforms.

Technical Highlights:

• DDR5-6400 Memory: Running at 6400 MHz, this is faster memory than most commercial workstations ship with at this class. The bandwidth advantage shows in analytics and real-time data tasks that cycle large working sets through CPU cache.
• 128 GB Maximum RAM Ceiling: Two SO-DIMM slots supporting up to 128 GB means this SFF unit can be configured to handle workloads typically requiring a rack server — meaningful for edge AI inference or dense virtualized environments.
• 9 lb SFF Chassis: The weight and form factor make this mountable behind a monitor via VESA bracket or deployable in compact equipment shelves — a real consideration for control rooms where rack space is allocated, not assumed.

Deployment Considerations:

• The system ships with one RAM module in a dual-slot board — add a matching DDR5-6400 SO-DIMM to the open slot for dual-channel operation, which will improve memory bandwidth over the single-channel baseline configuration.
• No discrete GPU is specified in the evidence for this SKU. If you're deploying this as a VMS decode station with hardware acceleration requirements, verify GPU availability for this specific configuration before ordering — the Core Ultra 5 235 includes integrated graphics, but high camera-count hardware decode typically benefits from a dedicated GPU.

For a VMS operator workstation, branch-office engineering station, or compact edge compute node where tower footprint is not acceptable, the ThinkStation P3 Ultra SFF G2 in this configuration is a well-matched platform — particularly in environments already standardizing on Lenovo commercial hardware for endpoint management consistency.
