Lenovo 30HH008YUS Thinkstation P8 AMD Threadripper PRO 9985WX (3.20GHZ 256MB) W11P64 ENG 64.0G

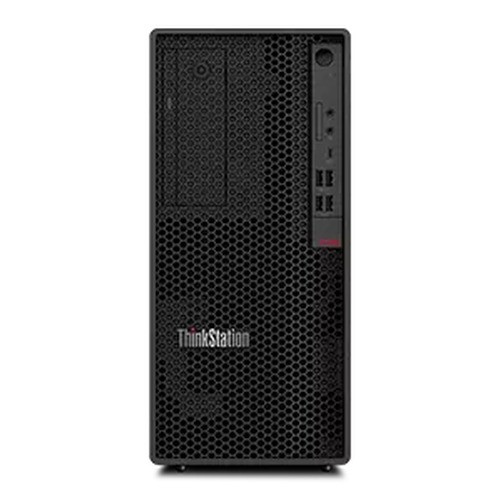

Lenovo 30HH008YUS ThinkStation P8 Tower Workstation

Overview

The Lenovo ThinkStation P8 (30HH008YUS) is a high-core-count tower workstation built around AMD's Threadripper Pro 9985WX — 64 physical cores and 128 threads in a single-socket platform. This configuration ships with 64 GB of DDR5-6400 ECC-capable memory installed across one of eight available DIMM slots, a 2 TB PCIe 4.0 NVMe SSD, and Windows 11 Pro 64-bit. It is the right choice when the workload outgrows conventional desktop processors and demands parallelism at a level that most enterprise tower platforms cannot deliver.

For security integrators and IT architects running large-scale VMS environments, the P8's core density lets you consolidate what would otherwise require multiple decode servers — running simultaneous high-resolution stream decoding, analytics processing, and forensic export without saturating a 16-core workstation CPU. For warehouse and AI-compute workflows, 128 threads map directly to parallel inference queues, simulation jobs, and batch transcoding tasks that measure throughput in thread-hours.

Key Features

• AMD Threadripper Pro 9985WX — 64 Cores / 128 Threads: A 3.2 GHz base clock with 5.4 GHz single-core boost means the platform handles both sustained all-core parallel loads and latency-sensitive single-thread operations without compromise. Most VMS decoding, analytics pipelines, and rendering jobs are highly parallel — 64 cores keeps those queues from stalling even under peak load.
• DDR5-6400 Memory at 64 GB Installed, 1 TB Maximum: DDR5 at 6400 MHz provides substantially higher memory bandwidth than DDR4 platforms — important when feeding a 64-core CPU that can exhaust a slower memory bus. Seven DIMM slots remain open, meaning you can scale from 64 GB today to 1 TB without replacing the platform. For AI inference or large-dataset video analytics, that headroom is the difference between on-box processing and an external memory bottleneck.
• 2 TB PCIe 4.0 NVMe SSD: PCIe 4.0 drives deliver sequential read/write throughput roughly double that of PCIe 3.0 — relevant when staging large video exports, loading AI model weights, or running high-frame-rate multi-channel VMS recording locally. 2 TB installed provides a practical working volume for on-box buffering and software installations without immediately requiring secondary storage expansion.
• Single-Slot DDR5 Installation with 7 Open Slots: Memory is installed as 1x64 GB, which means all seven remaining DIMM slots are available for future expansion. For deployments that anticipate growing analytics workloads or larger in-memory datasets, this is a more flexible starting point than a dual- or quad-channel configuration that fills slots at lower capacities.
• Windows 11 Pro 64-bit Pre-installed: Ships ready for enterprise domain join, BitLocker encryption, and Hyper-V virtualization without additional OS licensing. For IT architects managing a standardized Windows fleet, this eliminates the OS provisioning step and ensures driver compatibility from day one.
• 9 lb Tower Form Factor: At 9.00 lb, the P8 is designed as a desktop tower — deployable under a desk, on a rack shelf with an appropriate shelf kit, or in a dedicated workstation bay. The weight reflects a chassis built for expandability (full-length GPU slots, PCIe lanes from the Threadripper Pro platform) rather than a compact SFF unit.

Integration and Compatibility

The 30HH008YUS runs Windows 11 Pro 64-bit, making it compatible with all major network video recorder software platforms and VMS applications that publish Windows system requirements. The Threadripper Pro 9985WX platform supports PCIe 5.0 lanes for GPU expansion — relevant for integrators planning to add a professional GPU for hardware-accelerated video decode or AI inference alongside the installed 2 TB NVMe SSD on the PCIe 4.0 bus.

For enterprise security deployments, the P8 pairs well with managed PoE network switches and dedicated storage arrays when on-box capacity is not sufficient for long-retention recording. Its DDR5 platform supports ECC memory configurations, which matters for 24/7 unattended server-role deployments where memory error correction is a reliability requirement — verify specific ECC support with your memory expansion vendor against this platform's BIOS configuration.

Explore the full Lenovo workstation and server catalog for complementary compute platforms, or review the servers and workstations category for side-by-side comparison with other high-core-count options. If your deployment requires GPU-accelerated analytics at scale, pairing this platform with a compatible professional GPU is the logical next step — the PCIe lane count from a 64-core Threadripper Pro platform gives you the bus bandwidth to support multiple high-power cards simultaneously.

Frequently Asked Questions

Q: What processor does the 30HH008YUS ship with, and what is the core count?

A: The 30HH008YUS ships with the AMD Threadripper Pro 9985WX — 64 physical cores, 128 threads, 3.2 GHz base clock, and 5.4 GHz maximum boost frequency.

Q: How much memory is installed, and what is the maximum supported?

A: The system ships with 64 GB of DDR5-6400 memory installed in one DIMM slot. The platform has 8 DIMM slots total and supports up to 1 TB of maximum installed memory, leaving seven slots available for expansion.

Q: What is the storage configuration on the 30HH008YUS?

A: One 2 TB SSD is installed, using a PCIe 4.0 interface. No optical drive is included.

Q: What operating system does the 30HH008YUS ship with?

A: Windows 11 Pro 64-bit (English) is pre-installed.

Q: What does the 30HH008YUS weigh, and where is it manufactured?

A: The unit weighs 9.00 lb and is manufactured in Mexico.

Q: Is the 30HH008YUS suitable as a VMS server or AI inference workstation?

A: The 64-core / 128-thread Threadripper Pro 9985WX with DDR5-6400 memory and PCIe 4.0 NVMe storage makes this platform well-suited for high-channel VMS decoding, analytics processing, and parallel inference workloads. The 7 open DIMM slots allow memory scaling to 1 TB as workloads grow.

Ted Perry

The 30HH008YUS lands in a specific sweet spot: it is a single-socket platform delivering 64 cores and 128 threads at 3.2 GHz base — territory that previously required dual-socket Xeon configurations with all the added complexity of NUMA-aware software tuning. For large-scale physical security deployments where the VMS server is also running edge analytics, the Threadripper Pro 9985WX's thread count matters more than raw single-core clock speed.

Technical Highlights:

• 5.4 GHz Boost / 3.2 GHz Base: The 2.2 GHz spread between base and boost means lightly-threaded tasks — GUI operations, license checks, single-stream exports — still get fast single-core response while sustained all-core analytics workloads run at the full 3.2 GHz base. Most workstation deployments see a mix of both; this processor handles it without thermal throttling compromising either mode.
• DDR5-6400 at 6400 MHz: Memory bandwidth at this clock rate feeds the 64-core pipeline efficiently. Running 128 threads simultaneously requires a memory subsystem that doesn't create a bottleneck before the CPU does — DDR5-6400 is designed for exactly this class of Threadripper Pro workload.
• PCIe 4.0 NVMe at 2 TB: For any deployment writing high-bitrate video to local storage — on-box buffering, forensic capture, AI training datasets — PCIe 4.0 sequential throughput keeps write queues clear under sustained load. 2 TB gives you a meaningful working volume before you need to offload to a NAS or SAN.

Deployment Considerations:

• Memory is installed as 1x64 GB — single-channel configuration. Adding a second matched 64 GB DIMM in the appropriate paired slot will activate dual-channel mode and nearly double effective memory bandwidth, a meaningful gain for workloads that are currently memory-bandwidth-limited rather than core-count-limited. Plan this upgrade before deployment if the workload profile is memory-intensive.
• No GPU is specified in this SKU's evidence. For hardware-accelerated video decode or AI inference at scale, a compatible professional GPU will need to be added separately. Verify the chassis power supply capacity and PCIe slot availability before specifying a high-TDP GPU alongside this CPU configuration.

This platform is the right call for a centralized VMS analytics server in a large enterprise physical security deployment — one where you are aggregating 100+ camera feeds, running simultaneous deep-learning analytics, and need the platform to handle that load without a second server in the rack.
