Lenovo 30HH0053US Thinkstation P8 AP7995WX 16G X2 W11P

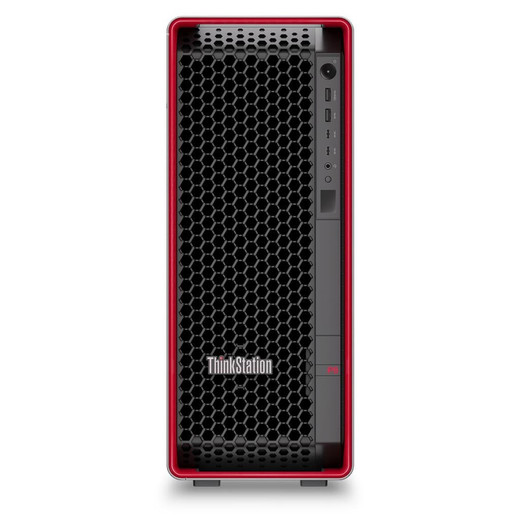

Lenovo 30HH0053US ThinkStation P8 Workstation

Overview

The Lenovo ThinkStation P8 (30HH0053US) is a high-core-count professional workstation built around the AMD Ryzen Threadripper PRO 7995WX — a 96-core processor from AMD's 7000 WX-Series — configured here with 32 GB of ECC DDR5-4800 across a dual-channel pair and a 1 TB primary drive, running Windows 11 Pro out of the box. At 9 lb, it's denser than it looks for what's inside. This is a machine positioned for compute-intensive professional workloads: large-dataset rendering, multi-stream video processing, simulation, or any environment where core count and memory bandwidth are the binding constraints. If you're evaluating the 30HH0053US against lighter workstations, the deciding factor is almost always whether your workload saturates cores — if it does, this processor architecture has substantial headroom; if it doesn't, you're paying for idle silicon.

Key Features

• AMD Ryzen Threadripper PRO 7995WX Processor (96 Cores): The 7000 WX-Series sits at the top of AMD's workstation lineup. With a base clock of 2.5 GHz and a boost ceiling of 5.1 GHz, tasks that can distribute across many threads — video encoding, CFD simulation, large renders — see real throughput gains versus 8- or 16-core alternatives. Single-threaded peak at 5.1 GHz keeps interactive workloads responsive. The Socket sTR5 platform also means this board generation supports future processor upgrades within the WX ecosystem.
• 384 MB L3 Cache: The Threadripper PRO 7995WX carries 384 MB of L3 cache — an unusually large on-die pool. For workloads that repeatedly access large working sets (volumetric data, large point clouds, multi-layer neural net inference), keeping that data on-chip rather than routing it to system RAM cuts latency meaningfully. This is one of the architectural differences that separates this class of processor from consumer-grade desktop parts.
• 32 GB ECC DDR5-4800 (2 x 16 GB), Expandable to 1 TB: The system ships with 32 GB across two of the eight available DIMM slots, running at 4800 MHz in an octa-channel memory architecture. ECC (error-correcting code) memory matters in professional environments: it detects and corrects single-bit memory errors silently, which matters when a long render or simulation run should not be invalidated by a transient hardware fault. The platform supports up to 1 TB total memory — relevant for in-memory databases, large finite-element models, or workloads that cannot page to disk without unacceptable latency.
• Octa-Channel DDR5 Memory Architecture: Eight memory channels running simultaneously deliver aggregate bandwidth that consumer platforms with two or four channels cannot match. For memory-bandwidth-bound workloads — large matrix operations, high-resolution multi-stream video pipelines, scientific computing — the octa-channel configuration is a structural advantage, not a marketing specification. The two installed DIMMs occupy two of eight channels; filling additional slots scales bandwidth proportionally.
• 1 TB Primary Storage: The 1 TB drive provides baseline working storage. For production environments handling large project files, raw video, or dataset scratch space, secondary storage expansion should be part of the deployment plan — the platform's workstation-class chassis is designed to accommodate it.
• Windows 11 Pro Pre-Installed: Ships with Windows 11 Pro activated, eliminating OS licensing overhead at deployment. Pro includes domain join, BitLocker, remote desktop, and Hyper-V — all relevant for enterprise and professional deployment environments where the consumer Home SKU is not an option.
• Single Processor, Socket sTR5: One processor socket is occupied; the board does not support multi-socket configurations. This is a single-CPU workstation — core parallelism comes from the 96-core die, not from a second socket. Plan accordingly if your workload assumes dual-socket NUMA topology.

Integration and Compatibility

The ThinkStation P8 30HH0053US runs Windows 11 Pro and is built on AMD's Socket sTR5 platform, which supports standard workstation peripherals, PCIe expansion, and enterprise management tools compatible with Lenovo's ThinkStation line. The DDR5-4800 ECC memory is compatible with registered DIMM (RDIMM) expansion modules appropriate for this platform — confirm DIMM type before purchasing expansion memory. For workloads requiring GPU acceleration, the platform's PCIe architecture supports professional GPU cards, though specific GPU configuration for this SKU is not confirmed in available evidence; verify current configuration at point of purchase. The octa-channel memory bus is most effective when DIMMs are installed in matched pairs across channels per Lenovo's population guidelines.

Frequently Asked Questions

Q: What processor does the Lenovo 30HH0053US include?

A: The 30HH0053US is configured with the AMD Ryzen Threadripper PRO 7995WX, a 96-core processor from the 7000 WX-Series with a 2.5 GHz base clock, 5.1 GHz boost clock, and 384 MB L3 cache, installed in a Socket sTR5 socket.

Q: How much memory does the ThinkStation P8 30HH0053US ship with, and how far can it expand?

A: It ships with 32 GB of ECC DDR5-4800 installed as two 16 GB DIMMs across eight available slots. The platform supports up to 1 TB of total installed memory, giving substantial room for memory-intensive workloads.

Q: Does the 30HH0053US support ECC memory?

A: Yes. The system ships with ECC (error-correcting code) DDR5-4800 memory, which detects and corrects single-bit memory errors — important for long-running professional workloads where silent data corruption is unacceptable.

Q: What operating system does the ThinkStation P8 30HH0053US ship with?

A: It ships with Windows 11 Pro pre-installed. The Pro edition includes BitLocker, domain join, remote desktop, and Hyper-V — the standard requirement for enterprise deployment environments.

Q: How many memory channels does the 30HH0053US support?

A: The AMD Threadripper PRO 7995WX platform supports eight memory channels (octa-channel). The system ships with two DIMMs installed; adding matched pairs across the remaining six slots increases both capacity and memory bandwidth.

Q: What is the weight of the ThinkStation P8 30HH0053US?

A: The unit weighs 9.00 lb per verified distribution data.

Karl Wilson

The 30HH0053US is one of the few workstation SKUs where the on-die cache spec alone warrants attention: 384 MB of L3 on the Threadripper PRO 7995WX is not a rounding-error difference from other workstation processors — it is an architectural shift that changes how memory-intensive applications behave at scale. If you're sourcing this for a team running multi-stream surveillance analytics, large-format GIS processing, or simulation workloads with large working sets, that cache pool keeps data closer to execution units and reduces round-trips to system RAM in ways that show up in real benchmark numbers, not just spec sheets.

Technical Highlights:

• 384 MB L3 Cache: Largest on-die cache in a workstation processor as of this platform generation — directly reduces latency for working sets that exceed what typical 32–64 MB cache processors can hold on-chip.
• Octa-Channel ECC DDR5-4800: Eight memory channels with error correction delivers both bandwidth and reliability. The 32 GB shipping configuration uses two of eight slots — there is substantial bandwidth headroom left on the table until additional DIMMs are installed in matched pairs.
• 5.1 GHz Single-Core Boost: Despite being a 96-core part, the 7995WX boosts to 5.1 GHz on lightly threaded tasks, so interactive responsiveness does not degrade on workloads that are not fully parallelized.

Deployment Considerations:

• The system ships with two 16 GB DIMMs in an 8-slot platform. If your workload is memory-bandwidth-bound, populate additional slots in matched pairs per AMD's channel population guidelines before assuming you're getting full octa-channel throughput — with only two DIMMs installed, you are not.
• GPU configuration is not confirmed in available evidence for this SKU. If GPU compute or display output beyond the processor's integrated capability is required, verify the as-shipped GPU configuration before ordering rather than assuming a discrete card is included.

This configuration is well-suited to small-team compute environments — a surveillance operations center running edge analytics ingestion, a GIS or CAD shop with large dataset processing requirements, or a video production pipeline where per-core render speed and memory capacity are the binding variables. It is not the right pick for light office tasks where a mid-range workstation covers the requirement at lower cost.
