Lenovo 30HH003HUS Thinkstation P8 AP7965WX 16G X2 W11P

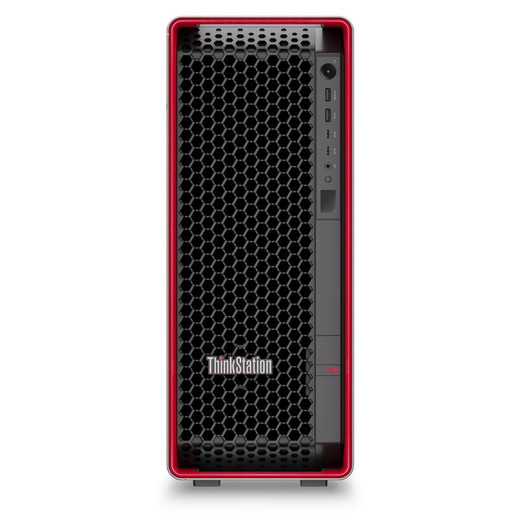

Lenovo 30HH003HUS ThinkStation P8 Professional Workstation

Overview

The Lenovo ThinkStation P8 (30HH003HUS) is a professional-grade tower workstation built around AMD's Ryzen Threadripper PRO 7965WX — a 24-core, 48-thread processor designed for workloads that demand sustained parallel compute: video analytics processing, large-scale VMS deployments, simulation, rendering, and data-intensive engineering applications. With DDR5 memory running at 4800 MHz and support for up to 1 TB of RAM across eight DIMM slots, the P8 is positioned for organizations that outgrow mainstream desktop workstations but don't need a full rack server. It ships with Windows 11 Pro and is sourced factory-new from US distribution channels.

For security integrators and surveillance architects evaluating on-premise VMS servers, this platform offers the core count and memory ceiling to run enterprise-grade video management software at scale — a use case where CPU thread count and RAM capacity directly translate to camera channel capacity and analytics throughput. Explore the broader Lenovo workstation and server catalog for additional configurations in this family.

Key Features

• 24-Core / 48-Thread Threadripper PRO 7965WX: The 7000 WX-Series processor delivers 24 physical cores with SMT — practical for running concurrent analytics engines, multiple VMS services, or parallel rendering tasks without the context-switching overhead that bogs down lower-core-count platforms. Boost clocks reach 5.3 GHz for single-threaded bursts; base sits at 4.2 GHz for sustained multi-threaded loads.
• 128 MB L3 Cache: A 128 MB L3 cache on the 7965WX is one of the largest in any desktop-class processor — meaning frequently accessed data (video frame buffers, analytics model weights, database indices) stays on-die rather than round-tripping to RAM. For workloads with hot working sets, this reduces latency meaningfully.
• 32 GB DDR5-4800 Installed (Expandable to 1 TB): Ships with 2 x 16 GB DDR5 modules across 8 available DIMM slots. The 1 TB maximum is relevant for in-memory database work, large AI inference models, or VMS deployments archiving high-resolution streams in RAM-backed caches. DDR5 at 4800 MHz provides roughly 50–70% more bandwidth than DDR4-3200 — bandwidth matters when feeding a high-core-count processor at full utilization.
• Socket sTR5 Platform: The sTR5 socket anchors the P8 to AMD's PRO workstation ecosystem, which includes ECC memory support (verify with your specific memory configuration) and a wider PCIe lane count than consumer AM5 platforms — relevant when adding multiple GPU cards, high-speed storage controllers, or capture/accelerator cards simultaneously.
• Windows 11 Pro Included: Ships with Windows 11 Pro pre-installed, which matters for enterprise environments requiring BitLocker, domain join, Remote Desktop host capability, and Group Policy management out of the box — no separate OS licensing cost to factor into your deployment budget.
• 9 lb Form Factor: At 9.00 lb, the P8 is a tower workstation sized for under-desk or workstation-room deployment — not a rack unit. Factor this into your physical installation plan if you're integrating it into a rack environment (a rack shelf or workstation-to-rack conversion kit would be required).
• Mexico Manufacturing Origin: Country of Origin is MX. For projects with domestic manufacturing requirements or Buy American Act considerations, confirm this against your procurement specifications before ordering.

Integration and Compatibility

The ThinkStation P8 30HH003HUS targets workflows that require sustained high-core-count compute with large memory headroom. In VMS and NVR server deployments, the 24-core Threadripper PRO handles concurrent decoding, motion analysis, and recording across large camera counts — platforms like Milestone XProtect, Genetec Security Center, and Avigilon Control Center publish minimum CPU and RAM specifications that this workstation comfortably exceeds for mid-to-large deployments. Pair it with a qualified network switch and dedicated storage array for a complete on-premise recording infrastructure.

For security integrators building dedicated VMS servers, review your VMS server sizing and storage planning guide to match camera channel count, retention period, and analytics load to hardware specifications before committing to a configuration. The P8's 8 DIMM slots give room to scale RAM incrementally as your channel count grows — start at 32 GB and expand without replacing the base unit.

The sTR5 platform supports a wide range of PCIe add-in cards: GPU accelerators for AI-based analytics, RAID controllers, 10GbE or 25GbE NICs for high-bandwidth recording backbones, and video capture cards. Confirm specific card compatibility against Lenovo's ThinkStation P8 option list for your configuration.

Frequently Asked Questions

Q: What processor does the Lenovo 30HH003HUS ship with?

A: The 30HH003HUS ships with the AMD Ryzen Threadripper PRO 7965WX — a 24-core, 48-thread processor from the 7000 WX-Series, with a boost clock of 5.3 GHz and 128 MB of L3 cache.

Q: How much RAM does the ThinkStation P8 30HH003HUS come with, and what is the maximum?

A: It ships with 32 GB of DDR5-4800 RAM installed as 2 x 16 GB modules. The platform supports up to 1 TB of RAM across 8 DIMM slots, making it suitable for memory-intensive workloads that need room to grow.

Q: Is the 30HH003HUS a tower or rack-mount workstation?

A: The ThinkStation P8 is a tower workstation weighing 9.00 lb. It is not a rack-mount unit. If rack installation is required, a compatible rack shelf or conversion kit would be needed.

Q: Can the ThinkStation P8 30HH003HUS run enterprise VMS software like Milestone or Genetec?

A: The hardware specifications — 24 cores, 48 threads, 32 GB DDR5 expandable to 1 TB — are well above the minimum requirements published by major VMS platforms. Always verify the specific version requirements for your VMS of choice and your target camera channel count and analytics load.

Q: What operating system does the 30HH003HUS ship with?

A: The 30HH003HUS ships with Windows 11 Pro pre-installed.

Q: What memory type does the ThinkStation P8 use, and how many slots are available?

A: It uses DDR5-SDRAM running at 4800 MHz. There are 8 DIMM slots total; 2 are occupied by the included 2 x 16 GB modules, leaving 6 slots available for expansion.

Marty Allison

The 30HH003HUS is the configuration I'd reach for when a security integrator needs a purpose-built VMS server that won't hit a CPU ceiling within 18 months of deployment. The Threadripper PRO 7965WX's 24 cores and 48 threads handle the kind of parallel workload that enterprise video management generates — simultaneous decode, motion detection, analytics, and archival — without the thermal throttling and core contention you see on high-clock-speed but low-core-count desktop chips.

Technical Highlights:

• 5.3 GHz Boost / 24 Cores: The 7000 WX-Series hits 5.3 GHz on boost while maintaining 24 physical cores — a combination that handles both latency-sensitive single-threaded operations (UI, API calls) and sustained multi-threaded workloads (video transcoding, analytics inference) without trade-offs between the two.
• 128 MB L3 Cache: On a VMS server processing dozens of high-resolution streams, a 128 MB on-die cache keeps video buffers and analytics model weights resident — reducing the penalty of frequent memory accesses that would otherwise cap effective throughput.
• 1 TB Max RAM on 8 DIMM Slots: Starting at 32 GB with 6 slots open, this platform lets you scale RAM to match growing channel counts and retention requirements without a hardware refresh. DDR5-4800 bandwidth is a meaningful improvement over DDR4 for data-intensive workloads.

Deployment Considerations:

• The P8 is a tower form factor — if you're deploying into a rack enclosure, budget for a compatible rack shelf; this unit does not mount directly into a standard 19-inch rack without an adapter.
• Country of origin is Mexico. If your project is subject to Buy American Act, TAA compliance, or domestic content procurement rules, confirm this against your contract requirements before purchase — this information is not always surfaced in standard quote workflows.

This workstation is the right fit for a physical security operations center or mid-to-large enterprise VMS server room where you need sustained compute headroom, large memory capacity for camera channel growth, and a Windows 11 Pro base that integrates cleanly into an Active Directory-managed environment.
