Lenovo 30HA00AGUS Thinkstation P3 Ultra I514600K 16G X1

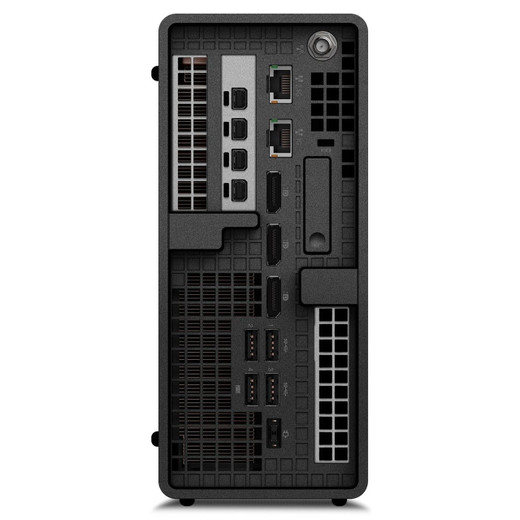

Lenovo 30HA00AGUS ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra (30HA00AGUS) is a compact, high-performance workstation built around Intel's 14th-generation Core i5-14600K — a 14-core, 20-thread processor that handles parallel compute workloads most small-form-factor machines simply can't sustain. At 9.00 lb, the P3 Ultra is dense enough to anchor a fixed workstation deployment while staying portable enough to move between control rooms or staging environments without a cart. If you're provisioning video management server (VMS) client workstations, security operations centers, or analyst desks that need headroom beyond a standard business PC, the P3 Ultra sits in the right tier. Explore the full Lenovo workstation and computing line for related configurations.

Key Features

• Intel Core i5-14600K — 14 Cores / 20 Threads at up to 5.3 GHz: The i5-14600K's hybrid core architecture (6 P-cores + 8 E-cores) handles concurrent VMS decoding, analytics processing, and operator UI without the thread-starvation you see on quad- and hex-core platforms. The 5.3 GHz boost clock means single-threaded response — opening live views, running reports, switching layouts — stays fast even under full background load.
• 16 GB DDR5-4800 (1 of 4 SO-DIMM Slots Used): DDR5 at 4800 MHz delivers roughly 50–70% higher memory bandwidth than DDR4-3200, which directly benefits applications that stream large datasets — live video decoding, forensic playback of high-resolution recordings, or running multiple VMS client sessions. More importantly, only one of four SO-DIMM slots is populated at ship time, so scaling to 32, 64, or even 192 GB is a straightforward field upgrade without replacing anything already installed.
• Maximum Memory: 192 GB DDR5: A 192 GB ceiling is unusual at this platform size — it means the P3 Ultra can grow into roles that start as a VMS client workstation and evolve into a lightweight analytics server or edge AI inference node without a forklift upgrade. Plan your RAM procurement at purchase time to avoid later sourcing friction.
• 512 GB NVMe SSD (Single Drive, Expandable): The 512 GB SSD handles OS, VMS client software, and local clip caching without the latency penalties of spinning media. For deployments that need local storage buffers — temporary evidence holds, local export staging, or edge recording — you have expansion headroom available given the single-drive-installed baseline. Check dedicated NVR appliances if primary video storage is a core requirement rather than a secondary function.
• No Optical Drive: The optical drive bay is eliminated in favor of thermal and density efficiency. Software deployment should be planned via network push or USB — standard in any modern enterprise imaging workflow, but worth noting if your provisioning process still relies on disc media.
• Compact Form Factor at 9.00 lb: Sub-10-lb workstations in this performance class are genuinely rare. The P3 Ultra fits standard rack shelves, under-desk mounts, and control room credenzas where a full tower would be impractical. For commercial workstation deployments in space-constrained security booths or AV racks, the physical footprint matters as much as the compute spec.
• Intel Platform Ecosystem: The i5-14600K sits on Intel's LGA1700 socket architecture, which means broad driver support across Windows 10/11, common VMS platforms, and enterprise imaging tools. Intel's platform has the longest validated compatibility tail in commercial software certification lists — fewer surprises when deploying against an existing validated hardware list.

Integration & Compatibility

The 30HA00AGUS is a general-purpose commercial workstation, which means VMS compatibility is a function of the software vendor's OS and hardware requirements rather than any camera-specific protocol. Most major VMS platforms — including those commonly deployed in commercial security infrastructure — publish minimum and recommended hardware specs; the P3 Ultra's 14-core / 20-thread configuration and DDR5 memory bandwidth will clear the recommended tier for most mid-scale deployments. Confirm GPU requirements separately: integrated graphics handle operator UI and moderate decode loads, but high-channel-count H.265 hardware decode or AI analytics acceleration may require a discrete GPU add-in card, which should be specified at time of order. For guidance on matching workstations to VMS channel counts and storage requirements, see our VMS workstation selection guide. If this unit is being paired with IP cameras, review compatible PoE switches to complete the infrastructure stack.

Frequently Asked Questions

Q: How much RAM can the Lenovo ThinkStation P3 Ultra 30HA00AGUS support, and can it be upgraded in the field?

A: The 30HA00AGUS ships with 16 GB of DDR5-4800 RAM installed in one of four SO-DIMM slots, and supports a maximum of 192 GB. The remaining three slots are unpopulated, so field upgrades are straightforward — no memory needs to be replaced, only added.

Q: Is the storage expandable beyond the 512 GB SSD that ships with this unit?

A: The unit ships with a single 512 GB SSD installed. Storage expansion depends on available internal bays in the P3 Ultra chassis — confirm available M.2 and SATA slots in the Lenovo hardware maintenance manual for this configuration before ordering additional drives.

Q: Does the ThinkStation P3 Ultra 30HA00AGUS include an optical drive?

A: No. The 30HA00AGUS does not include an optical drive. Software deployment should be handled via network imaging, USB media, or enterprise provisioning tools.

Q: What processor does the 30HA00AGUS use, and how does it perform in multi-threaded workloads?

A: It uses the Intel Core i5-14600K with 14 cores (6 performance + 8 efficiency), 20 threads, a 3.5 GHz base clock, and a 5.3 GHz boost clock. The hybrid architecture handles mixed single-threaded and multi-threaded workloads well — suitable for running VMS client software, forensic video playback, and operator applications concurrently.

Q: What memory type does this workstation use, and why does that matter?

A: The 30HA00AGUS uses DDR5-SDRAM at 4800 MHz. DDR5 provides significantly higher memory bandwidth than DDR4, which benefits data-intensive applications like live video decoding and multi-stream playback. The 4800 MHz clock speed is the native JEDEC standard for this platform generation.

Eden Phillips

The 30HA00AGUS is the configuration I'd specify for a mid-scale VMS client or security operations analyst desk where the standard business PC hits its ceiling fast — specifically, that 192 GB DDR5 ceiling and the 14-core i5-14600K boosting to 5.3 GHz are what set this apart from generic corporate desktops. For integrators quoting workstation tiers, that memory expandability alone changes the conversation.

Technical Highlights:

• 14-Core / 20-Thread i5-14600K: The hybrid P-core + E-core design means background tasks (indexing, export jobs, antivirus scans) don't compete directly with foreground VMS decode threads — the scheduler routes them to efficiency cores. That's a real-world behavior difference from older uniform-core designs at this price tier.
• DDR5-4800 with 3 Open SO-DIMM Slots: Starting at 16 GB with three open slots is the right factory configuration for staged deployments — buy what you need now, expand in the field without touching existing modules. DDR5's bandwidth advantage matters most in multi-stream decode scenarios where memory throughput is the binding constraint.
• 512 GB SSD, No Optical Drive: The SSD baseline is adequate for OS + VMS client + local clip staging, but integrators should account for this in storage architecture — the P3 Ultra is not a primary recording appliance. Pair it with a dedicated NVR or NAS for any retention requirement beyond short-term evidence holds.

Deployment Considerations:

• Verify GPU requirements against your VMS vendor's hardware certification list before finalizing the order — the i5-14600K's integrated graphics handle standard decode loads, but high-channel H.265 or AI analytics workloads typically require a discrete add-in card that must be specified separately.
• At 9.00 lb, the P3 Ultra fits under-desk and rack-shelf mounts in control room builds, but confirm chassis dimensions against your specific mounting hardware before deployment — physical clearance is the detail that delays installs.

This unit is a strong fit for security operations center (SOC) analyst workstations, VMS client stations in mid-scale camera deployments, or forensic review desks where analysts need sustained multi-stream playback performance without stepping up to a full tower workstation footprint.
