Lenovo 30HA006LUS Thinkstation P3 Ultra I714700 32G X1

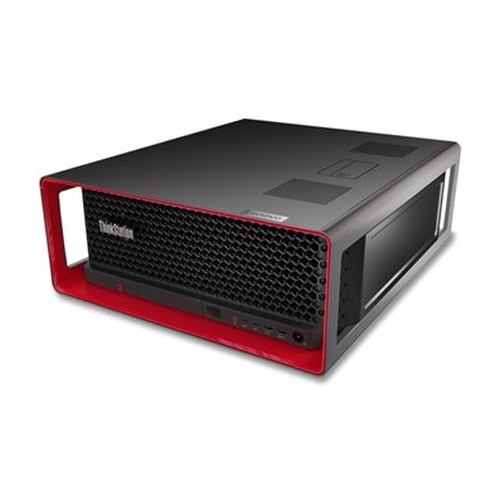

Lenovo 30HA006LUS ThinkStation P3 Ultra Compact Workstation

Overview

The Lenovo ThinkStation P3 Ultra (30HA006LUS) is a compact professional workstation built around Intel's 14th-generation Core i7-14700 processor — a 20-core, 28-thread chip that delivers sustained throughput for compute-intensive workloads including multi-stream video analytics, VMS processing, engineering simulation, and parallel encoding tasks. Weighing in at 9.00 lb, the P3 Ultra occupies a small footprint without sacrificing the processing headroom that demanding professional workstations require. This configuration ships with 32GB of RAM, giving you enough memory headroom to run a full video management software stack alongside edge analytics engines without constant paging to disk.

Key Features

• Intel Core i7-14700 — 20 Cores, 28 Threads: The hybrid architecture splits into 8 Performance cores (up to 5.3 GHz turbo) and 12 Efficient cores (up to 4.2 GHz turbo). In practice this means single-threaded tasks — codec decode, UI responsiveness, live view — get the full P-core boost, while background indexing, analytics inference, and parallel encoding offload to the E-cores without stealing clock cycles from foreground work. For a VMS server handling 32+ camera streams, that thread separation matters more than raw GHz.
• 5.4 GHz Max Boost Frequency: The ceiling of 5.4 GHz on the i7-14700 means latency-sensitive operations — database lookups, motion-event triggers, alert dispatching — execute with minimal delay. In surveillance applications where alarm-to-response latency is measured and audited, this clock speed provides headroom you won't have to engineer around.
• 33 MB Intel Smart Cache: A 33 MB on-die cache reduces memory round-trips on repetitive workloads. For video analytics pipelines that repeatedly access the same model weights or frame buffers, this translates to lower effective latency and more consistent frame-processing throughput than a smaller cache would allow.
• 65 W Base / 219 W Maximum Turbo Power Envelope: The 65 W base TDP keeps idle and light-load power consumption manageable — relevant for 24/7 always-on deployments where electricity cost compounds over three to five years. The 219 W turbo ceiling means the CPU can spike aggressively when burst workloads arrive (batch export, model retraining, large archive searches) without being thermally throttled into sustained low performance.
• 32 GB RAM: 32 GB is the practical minimum for running a production VMS instance with live analytics enabled. It comfortably handles Milestone XProtect, Genetec Security Center, or Avigilon Control Center alongside the OS and a handful of concurrent operator clients without swapping. If your deployment grows beyond 64 cameras or adds GPU-accelerated inference, plan to expand — but for mid-scale deployments this is the right starting point.
• Compact 9 lb Form Factor: At 9.00 lb, the P3 Ultra ships in a small-form-factor chassis designed to mount in tight rack spaces, under-desk, or inside a server closet where a full tower would be impractical. For distributed security operations centers or branch deployments where physical space is constrained, this matters at procurement time.

Integration and Compatibility

The i7-14700 platform supports standard PCIe expansion, DDR5 memory, and Thunderbolt 4 connectivity found across the Lenovo ThinkStation line, making it straightforward to add capture cards, GPU accelerators, or 10GbE NICs as deployment requirements evolve. The P3 Ultra is designed for enterprise environments and integrates with standard domain authentication, remote management, and asset-tracking tools used across commercial IT infrastructure. For physical security deployments, pair this with a network video recorder for edge-side recording or deploy it as a centralized VMS server handling stream management and analytics across an IP camera network. When evaluating storage and PoE switch requirements to accompany this workstation, size the switch's power budget and the storage array's throughput to match the camera count and retention policy your deployment requires.

Frequently Asked Questions

Q: What processor does the 30HA006LUS use, and how many cores does it have?

A: The 30HA006LUS uses the Intel Core i7-14700, a 14th-generation processor with 20 cores (8 Performance cores + 12 Efficient cores) and 28 threads. Max boost frequency reaches 5.4 GHz.

Q: How much RAM does the 30HA006LUS ship with?

A: This configuration ships with 32 GB of RAM, as indicated in the product specification string from the distribution feed.

Q: Is the 30HA006LUS suitable for running video management software like Milestone or Genetec?

A: Yes. The 20-core i7-14700 with 32 GB RAM provides sufficient compute and memory headroom for mid-scale VMS deployments. Specific camera count limits depend on resolution, codec, analytics load, and whether a discrete GPU is added for accelerated inference.

Q: What is the power consumption of the i7-14700 in the 30HA006LUS?

A: The i7-14700 has a base power of 65 W and a maximum turbo power of 219 W. Under sustained light loads (idle VMS, no active exports), the system will draw significantly less than the 219 W ceiling.

Q: How much does the 30HA006LUS weigh, and will it fit in a rack or small space?

A: The unit weighs 9.00 lb. The ThinkStation P3 Ultra uses a compact small-form-factor chassis suited for under-desk, wall-mount bracket, or tight server closet installations where a full tower is not practical.

Ted Perry

The 30HA006LUS sits in a useful middle ground that I see integrators overlook: it is powerful enough to run a 32–64 camera VMS deployment with analytics enabled, yet compact enough at 9.00 lb that it doesn't require a dedicated rack bay or dedicated server room. The i7-14700's 20-core hybrid architecture is the spec I'd point to first — the separation of 8 Performance cores (5.3 GHz turbo) from 12 Efficient cores (4.2 GHz turbo) means you can run live stream decoding, motion analytics, and background archive indexing concurrently without those workloads competing destructively for the same cores.

Technical Highlights:

• 20-Core Hybrid CPU at 5.4 GHz Peak: The i7-14700's P-core/E-core split is a genuine operational advantage for VMS workloads — P-cores handle the latency-critical decode and UI path while E-cores absorb parallel background tasks. On a 32-camera deployment running H.265 streams with object detection, this matters for keeping live view smooth under full analytics load.
• 65 W Base TDP for 24/7 Deployment: A 65 W base power draw means this platform runs efficiently during the 95% of time it is sitting at idle or light load — critical for always-on security infrastructure where power and cooling costs are real operating expenses over a multi-year lifecycle. The 219 W turbo envelope is available for burst tasks without being the sustained draw.
• 33 MB Smart Cache with 32 GB System RAM: For inference workloads that repeatedly access the same model weights — object classification, license plate recognition, people counting — the 33 MB on-die cache reduces main-memory latency. Paired with 32 GB RAM, this configuration won't hit memory pressure on a mid-scale deployment without a discrete GPU accelerator.

Deployment Considerations:

• The product name encoding ('N' for no discrete GPU) means GPU-accelerated analytics inference — NVIDIA DeepStream, Intel OpenVINO with dGPU backend, or Genetec GPU decode offload — will require adding a PCIe graphics card. Verify the P3 Ultra chassis has the necessary PCIe slot and power headroom before specifying GPU-accelerated analytics at scale.
• The 219 W maximum turbo power is the CPU alone. Factor total system power (storage, RAM, GPU if added, peripherals) when sizing the UPS and power circuit for a 24/7 security operations center installation — the nameplate draw under full load will be meaningfully higher than 219 W system-wide.

This is the right platform for a distributed physical security deployment where the VMS server needs to sit at a remote branch, a retail backroom, or a warehouse edge node — compact enough to mount discreetly, powerful enough to handle full-resolution H.265 decode and analytics without a dedicated server rack.
