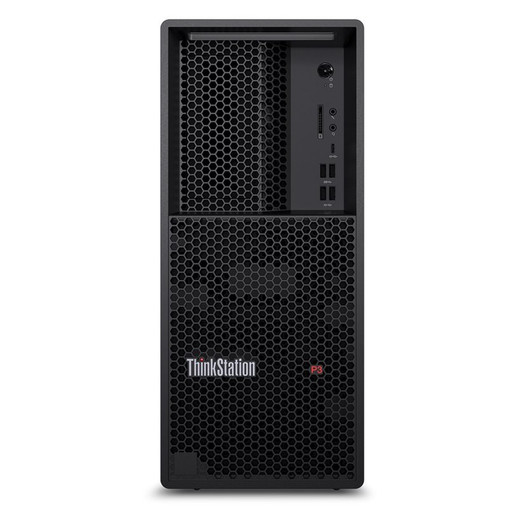

Lenovo 30GS00GSUS ThinkStation P3 Tower Workstation

Overview

The Lenovo ThinkStation P3 Tower 30GS00GSUS is a commercial-grade desktop workstation built around Intel's Core i9-14900 processor — a 24-core, 32-thread chip that handles compute-intensive workloads without the overhead of a full Xeon platform. At 9 lb, it ships in a tower form factor sized for under-desk or rack-shelf deployment in operations centers, network operations rooms, or engineering workstations running video management software, BIM tools, or multi-stream surveillance analytics. If you're standing up a VMS host, a forensic review station, or a high-throughput encoding box, the 30GS00GSUS positions itself squarely in that territory.

Key Features

• Intel Core i9-14900, 24 Cores / 32 Threads: The i9-14900 combines 8 performance cores and 16 efficiency cores with a 5.4 GHz boost clock. In practice this means single-threaded tasks like VMS UI rendering get full boost speed while background analytics and encoding threads run on the efficiency cores simultaneously — no artificial bottleneck between foreground and background workloads.
• 5.4 GHz Boost / 2 GHz Base Frequency: The wide base-to-boost spread (2 GHz to 5.4 GHz) means the chip can idle efficiently during low-demand periods and burst hard when decoding a multi-stream 4K forensic review or running deep-learning analytics locally. For 24/7 operations environments this translates to meaningful energy savings over a processor that runs hot at all times.
• 32 GB DDR5-4400 (1 x 32 GB DIMM), Expandable to 128 GB: DDR5-4400 delivers roughly double the bandwidth of DDR4-3200 — relevant when feeding a 24-core processor simultaneous data streams. The single-channel 1x32 GB configuration leaves three DIMM slots open; adding a second 32 GB stick moves you to dual-channel and measurably improves throughput for memory-bandwidth-sensitive analytics workloads. Maximum supported is 128 GB across four slots.
• 4x DIMM Slots, DDR5 Architecture: Four available DIMM slots give you a clear upgrade path from 32 GB to 64, 96, or 128 GB without replacing existing modules. For integrators deploying this as a VMS server expected to grow in channel count over time, that headroom is meaningful — you're not forced into a platform replacement to double memory capacity.
• 1 TB NVMe SSD (No Spinning Disk): An SSD-only storage configuration eliminates the mechanical failure point that traditionally limits workstation uptime in always-on environments. 1 TB is adequate for the OS, VMS software, and short-term local clip storage, but plan for external or NAS-attached storage if this unit will serve as a primary recording host for more than a few cameras.
• No Optical Drive: The absence of an optical drive keeps the chassis cleaner and reduces failure points. Deployment via USB or network is the expected path — note this if your provisioning workflow still relies on optical media.
• Tower Form Factor, 9 lb: At 9 lb the P3 Tower is lighter than many full-size workstations, making it practical to relocate during system buildout. The tower chassis allows full-length PCIe expansion cards — relevant if you intend to add a capture card, GPU for analytics acceleration, or additional NIC for network segmentation.

Integration and Compatibility

The ThinkStation P3 Tower runs Windows 11 Pro and supports standard x86 enterprise software deployments. The i9-14900's PCIe lanes support multi-GPU configurations, high-throughput NVMe arrays, and 10GbE NICs — all relevant for high-channel-count VMS installations. DDR5 memory architecture is not backward compatible with DDR4, so any memory expansions must use DDR5 DIMMs at 4400 MHz or compatible speed. Confirm PCIe slot availability and power supply headroom before adding discrete GPUs for inference workloads; the base 30GS00GSUS configuration does not include a discrete GPU.

Frequently Asked Questions

Q: How many memory slots does the 30GS00GSUS have, and what is the maximum RAM?

A: The 30GS00GSUS ships with four DDR5 DIMM slots. It comes configured with a single 32 GB DDR5-4400 module, leaving three slots open. The maximum supported memory is 128 GB.

Q: Does the 30GS00GSUS include a discrete GPU?

A: Based on available specifications, the base configuration does not include a discrete GPU. The i9-14900 includes integrated Intel graphics. For GPU-accelerated analytics or multi-monitor VMS deployments, you would need to add a compatible discrete card via the PCIe slots.

Q: Is the 30GS00GSUS suitable as a VMS server for multi-camera surveillance?

A: The i9-14900's 24 cores and 32 threads, combined with 32 GB of DDR5 RAM (expandable to 128 GB), make it a capable host for mid-to-large VMS deployments running Milestone, Genetec, or similar platforms. Storage expansion beyond the included 1 TB SSD will be needed for longer retention on high-channel-count systems.

Q: What operating system does the 30GS00GSUS ship with?

A: The 30GS00GSUS ships with Windows 11 Pro.

Q: Can I upgrade the storage in the 30GS00GSUS?

A: The unit ships with a single 1 TB SSD. The tower form factor and ThinkStation platform support additional storage via available drive bays and PCIe slots, though the exact number of open bays should be confirmed against the full Lenovo ThinkStation P3 Tower chassis specifications.

Q: What is the weight of the 30GS00GSUS?

A: The 30GS00GSUS weighs 9.00 lb.

Jerry Tildsen

When I spec a VMS host or forensic review workstation, I look hard at core count and memory bandwidth before anything else — and the 30GS00GSUS delivers both with the i9-14900's 24-core architecture running up to 5.4 GHz boost and DDR5-4400 memory. That combination handles parallel decode streams without the thread starvation you hit on older quad-core boxes running 32+ camera channels simultaneously.

Technical Highlights:

• 24-Core i9-14900 at 5.4 GHz Boost: The hybrid core architecture handles mixed workloads cleanly — VMS UI and analytics on performance cores, background encoding and indexing on efficiency cores, without manual thread affinity tuning.
• DDR5-4400 with 128 GB Ceiling: Starting at 1x32 GB leaves three DIMM slots open. Move to 2x32 GB dual-channel and you'll see measurable throughput gains on memory-bandwidth-sensitive workloads like simultaneous multi-stream H.265 decode.
• 1 TB SSD, No Spinning Disk: Eliminates mechanical failure risk in always-on deployments. The SSD handles OS and application I/O cleanly, but for any serious recording load you'll want to provision additional storage — NAS, DAS, or a second internal NVMe — before go-live.

Deployment Considerations:

• The single-channel memory configuration (1x32 GB) out of box limits memory bandwidth compared to a dual-channel setup — if the workload is analytics-heavy, budget for a second matched DDR5-4400 DIMM at deployment time rather than retrofitting later.
• No discrete GPU is included; if your VMS or analytics platform offloads inference to GPU (Nvidia DeepStream, Intel OpenVINO), you'll need to add a compatible card and verify the power supply headroom before ordering.

This workstation is a strong fit for a mid-size physical security operations center needing a single-box VMS host that can grow from 32 to 128 GB RAM as channel counts increase — particularly where a dedicated server rack isn't available and a tower footprint under the desk is the practical constraint.
