Lenovo 30GA00AEUS Thinkstation P5 W32425 16G X2 W11PWS

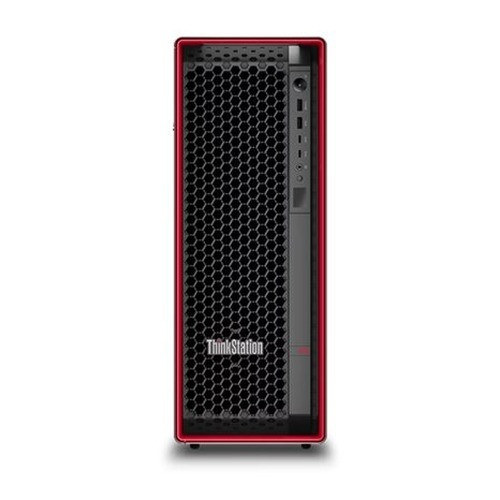

Lenovo 30GA00AEUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 30GA00AEUS is a professional-grade tower workstation built around the Intel Xeon W3-2425 processor — a 6-core, 12-thread platform running at 3.0 GHz base with a 4.4 GHz boost clock. With 32GB of DDR5-4800 memory across two 16GB DIMMs and a 512GB SSD, this configuration is a strong fit for surveillance workstation deployments running demanding VMS software, as well as CAD, data processing, and multi-display commercial environments. If you're provisioning a dedicated server for a mid-to-large NVR or VMS server installation, the P5's ECC-capable DDR5 platform and expansion headroom make it worth serious consideration.

Key Features

• Intel Xeon W3-2425 (6C/12T, 3.0–4.4 GHz): The Xeon W-2400 series sits above consumer Core processors in the reliability stack — designed for continuous workloads. The 4.4 GHz boost means single-threaded VMS decoding tasks (live view, export, analytics rendering) don't get starved when the system is under multi-stream load. 12 threads let you run concurrent decode, analytics, and database operations without the CPU becoming the bottleneck.
• 32GB DDR5-4800 (2x16GB, expandable to 512GB): DDR5-4800 delivers roughly double the bandwidth of DDR4-2666 at comparable pricing tiers — relevant when the VMS engine is streaming dozens of high-resolution channels simultaneously. The 2x16GB configuration leaves six of eight DIMM slots open, so you can scale to 128GB or beyond without pulling existing modules. A 512GB ceiling means this platform won't force a chassis swap as your deployment grows.
• 512GB SSD (boot/OS drive): A solid-state boot drive eliminates the mechanical-drive latency that slows VMS application startup and database queries. On a server that may be rebooted remotely after a power event, fast boot-to-ready matters. The 512GB capacity is sufficient for OS, VMS application, and a moderate event database — high-volume footage storage should be offloaded to dedicated NAS or a multi-drive expansion.
• 8x DIMM Slots: Unlike workstation platforms with 4 slots, the P5's 8-slot memory bus means you can add capacity incrementally without discarding installed modules. For a growing VMS server installation, this translates to a lower total cost of ownership over a 3–5 year lifecycle.
• DDR5-SDRAM Platform: DDR5's on-die ECC (error correction) provides a base level of data integrity at the memory bus level — relevant for always-on workstations running unattended overnight. This is distinct from full ECC DIMM support (which depends on specific module selection), but it represents a meaningful step up from standard desktop DDR4 platforms.
• 9.0 lb Tower Form Factor: At 9.0 lbs, the P5 is a full tower-class machine — plan for rack shelf or dedicated desk space rather than a 1U rack slot. For control room and NOC deployments with dedicated workstation space, the tower form factor allows simpler field servicing and component access compared to rack-optimized units.
• Windows 11 Pro for Workstations: The included OS is specifically optimized for high-core-count Xeon processors and large memory configurations — it supports ReFS (Resilient File System), persistent memory, and higher RAM ceilings than standard Win 11 Pro. VMS vendors including Milestone, Genetec, and Avigilon certify their server-side software on the Pro for Workstations SKU.

Integration and Compatibility

The ThinkStation P5 30GA00AEUS runs Windows 11 Pro for Workstations, which is on the supported OS list for major enterprise VMS platforms including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Axis Camera Station. The Xeon W3-2425's PCIe lane count and the P5 chassis's expansion slots accommodate dedicated GPU cards for AI-accelerated analytics offload — a practical upgrade path if you're deploying deep-learning analytics on high-camera-count systems. Pair with a managed PoE switch and a dedicated NAS or DAS storage shelf for a complete server-side surveillance stack. The platform is sourced factory-new with no grey-market or parallel-import risk.

Frequently Asked Questions

Q: What processor does the 30GA00AEUS include?

A: The 30GA00AEUS ships with the Intel Xeon W3-2425 — a 6-core, 12-thread processor with a 3.0 GHz base clock and 4.4 GHz boost frequency.

Q: How much memory is installed and what is the maximum supported?

A: It ships with 32GB DDR5-4800 across two 16GB DIMMs. The platform supports up to 512GB across 8 DIMM slots, leaving 6 slots open for future expansion.

Q: What storage is included and is it sufficient for VMS footage?

A: A 512GB SSD is included as the system drive. For high-volume surveillance footage retention, a dedicated NAS or additional storage expansion is recommended — the 512GB SSD is best used for OS, VMS application, and event database.

Q: Is this workstation compatible with enterprise VMS software like Milestone or Genetec?

A: Windows 11 Pro for Workstations is on the certified OS list for Milestone XProtect, Genetec Security Center, and Avigilon Control Center. Verify your specific VMS version's hardware requirements against the Xeon W3-2425 CPU and RAM configuration before commissioning.

Q: Does this ship with an optical drive?

A: No — the 30GA00AEUS does not include an optical drive. Software installation should be handled via USB media or network deployment.

Q: What country is this unit manufactured in?

A: Per distribution records, the country of origin is Mexico.

Ted Perry

When I'm sizing a VMS server for a mid-size deployment — say 32 to 64 cameras at 4K or 8MP — the 30GA00AEUS hits a useful sweet spot: the Xeon W3-2425's 12 threads handle concurrent decode and database writes without the memory contention you see on 4-core consumer platforms, and DDR5-4800 gives you the bus bandwidth to keep up with high-bitrate streams from multiple channels simultaneously.

Technical Highlights:

• 4.4 GHz Boost Clock: Single-threaded VMS tasks — live view rendering, export encoding, alert processing — benefit directly from the 4.4 GHz ceiling. On a busy 64-camera system, this headroom prevents the UI sluggishness that plagues lower-clocked server CPUs under load.
• DDR5-4800 with 6 Open DIMM Slots: Starting at 32GB with six slots open means you can double or quadruple RAM without pulling existing modules — useful when your analytics footprint grows as you add AI-based detection rules. The DDR5 platform's on-die ECC also adds a layer of memory integrity for always-on operation.
• 512GB SSD Boot Drive + No Optical Drive: Fast SSD boot is the right call for a headless VMS server that may restart after a power event at 2AM. Plan your imaging and software deployment workflow around USB or network — there's no optical drive on this SKU.

Deployment Considerations:

• The tower form factor requires dedicated desk or shelf space — not rack-mountable without a third-party shelf kit. Factor that into your control room layout before ordering.
• The 512GB SSD is the system drive only — do not plan on storing more than a few days of local footage without adding external NAS or a DAS expansion chassis. High-retention deployments need a separate storage plan from day one.

This platform is well-matched to a dedicated VMS server role in a 30–80 camera enterprise deployment running Milestone XProtect Corporate or Genetec Security Center, where you need a reliable Xeon-class CPU, room to grow memory, and a supported OS out of the box — without paying for a full rack server.
