Lenovo 30GA0081US Thinkstation P5 W52465X 16G X4 W11PWS

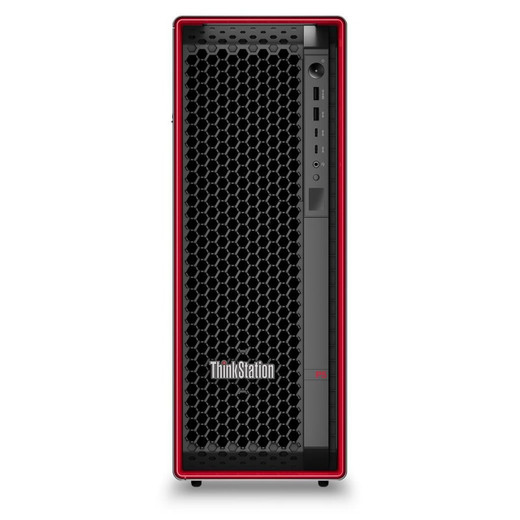

Lenovo 30GA0081US ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 30GA0081US is a tower workstation built around Intel's Xeon W platform — specifically the w5-2465X, a 16-core/32-thread processor that targets compute-intensive workloads where you need reliable multi-threaded throughput without stepping up to a full dual-socket configuration. This is a purpose-built professional workstation, not a repackaged consumer desktop, and the platform choices reflect that: DDR5 memory, PCIe 5.0 support, and a 200W base TDP processor give you the headroom to run demanding applications around the clock. If your environment involves professional workstations for video management software, simulation, rendering, or data processing at scale, the P5 is worth serious consideration as a primary or secondary compute node.

Key Features

• Intel Xeon w5-2465X — 16 Cores / 32 Threads: The w5-2465X runs at 3.1 GHz base with a 4.7 GHz max turbo across its 32 threads — that spread matters when your VMS or rendering workload can saturate multiple cores simultaneously. Compared to a high-end consumer Core i9, the Xeon W platform adds ECC memory support and validated ISV compatibility for professional software stacks.
• 33.75 MB Intel Smart Cache: A large on-die cache at this size means frequently accessed data sets — database indexes, simulation state, video decode buffers — stay closer to execution units. The practical effect is reduced main-memory latency under sustained multi-threaded load.
• 64 GB DDR5 RAM (Expandable to 512 GB): Ships with 64 GB of DDR5-SDRAM, and the platform supports up to 512 GB. That ceiling is the key differentiator if you're evaluating this against workstations capped at 128 or 192 GB — at 512 GB you can load large in-memory datasets or run multiple isolated VMs without memory pressure.
• PCIe 5.0 and 4.0 Slots: PCIe 5.0 support doubles the bandwidth ceiling versus Gen 4 — relevant when pairing with a high-throughput NVMe storage array or a next-generation GPU. Gen 4 slots remain available for existing expansion cards, so you're not forced to replace existing hardware at the same time.
• LGA 4677 (Socket E) Platform: The Intel Socket E platform is the current-generation Xeon W foundation. It's not a consumer socket — it's the same physical platform used across Intel's workstation and entry server lineup, which matters for long-term parts availability and platform stability.
• 200W Base / 240W Max Turbo Power Envelope: The w5-2465X draws up to 240W under sustained turbo — plan your rack or desk power budget accordingly. This is a full-performance workstation, not a low-power appliance. Make sure the circuit and UPS capacity account for the full system load including GPU and storage.
• Windows 11 Pro for Workstations Included: Ships with Windows 11 Pro for Workstations — the SKU name (W11PWS) confirms this. That edition includes ReFS file system support, persistent memory support, and is the version Lenovo validates against ISV workstation applications. No separate OS licensing cost to factor in.

Integration and Compatibility

The 30GA0081US is positioned for enterprise and commercial deployments where the compute platform needs to run under ISV-validated configurations. The Xeon W processor family carries Intel's stability and predictability guarantees for professional software. The Lenovo workstation line is broadly validated against major VMS platforms, CAD/CAM suites, and simulation environments — check Lenovo's ISV compatibility database for your specific software title before committing. The DDR5 memory architecture means any RAM upgrades need to use DDR5 DIMMs; DDR4 is not compatible with this platform. PCIe slot mix (Gen 5 + Gen 4) gives you flexibility to add storage controllers, capture cards, GPU compute cards, or network interface cards as your workload demands. Weight is listed at 9 lbs, which is light for a full tower workstation — verify this against Lenovo's published spec sheet as it may reflect a base configuration weight.

Frequently Asked Questions

Q: What processor is in the Lenovo ThinkStation P5 30GA0081US?

A: The 30GA0081US ships with the Intel Xeon w5-2465X — a 16-core, 32-thread processor based on the LGA 4677 (Socket E) platform, running at 3.1 GHz base and 4.7 GHz max turbo with 33.75 MB of Smart Cache.

Q: How much RAM does the ThinkStation P5 30GA0081US come with, and what is the maximum?

A: It ships with 64 GB of DDR5-SDRAM. The platform supports up to 512 GB maximum, making it viable for large in-memory workloads or multi-VM deployments that would exhaust a lower-ceiling platform.

Q: Does the ThinkStation P5 30GA0081US support PCIe 5.0?

A: Yes. The P5 on the Xeon W platform includes both PCIe 5.0 and PCIe 4.0 slots, giving you the bandwidth headroom needed for current-generation NVMe drives and GPUs while maintaining backward compatibility with existing Gen 4 expansion cards.

Q: What operating system does the 30GA0081US ship with?

A: The SKU designation includes W11PWS, confirming it ships with Windows 11 Pro for Workstations — the edition that includes ReFS support, persistent memory capabilities, and Lenovo ISV application validation.

Q: What is the processor power envelope on the ThinkStation P5 30GA0081US?

A: The Intel Xeon w5-2465X has a 200W base power and 240W maximum turbo power. Plan your power infrastructure — circuit capacity, UPS runtime, and cooling — for the full system load including GPU and storage, not just the processor TDP.

Q: Is the ThinkStation P5 30GA0081US suitable for running video management software (VMS)?

A: The Xeon W platform, ISV validation history, and 512 GB RAM ceiling make it a capable VMS server platform. Specific VMS compatibility (Milestone, Genetec, Avigilon, etc.) depends on the software vendor's tested hardware list — verify against the VMS vendor's HCL before deploying.

Marty Allison

The 30GA0081US is one of the cleaner Xeon W builds I've seen in the mid-tower workstation space — the w5-2465X's 4.7 GHz max turbo combined with 32 threads means single-threaded burst performance doesn't fall off a cliff the way older Xeon platforms did, which makes it viable for mixed workloads that need both bursty responsiveness and sustained parallel throughput.

Technical Highlights:

• 512 GB DDR5 Ceiling: Starting at 64 GB with a path to 512 GB DDR5 is a genuine differentiator — most mid-tier workstations cap at 128 or 192 GB. If you're running a VMS with 50+ camera streams plus analytics processes in parallel, that headroom matters.
• PCIe 5.0 Expansion: Having Gen 5 slots available means you're not immediately bottlenecked when you add a current-gen NVMe array or a GPU compute card — bandwidth ceiling is double what Gen 4 provides.
• 200W Base / 240W Turbo TDP: The w5-2465X pulls up to 240W under sustained turbo. Factor the full system draw into your UPS and power distribution planning — this is not a 65W desktop chip.

Deployment Considerations:

• Verify your VMS vendor's hardware compatibility list against the specific Xeon W generation before procurement — ISV validation cycles lag hardware releases by months.
• The 9 lb listed weight is unusually light for a full-capability tower workstation; confirm against Lenovo's published spec sheet before planning any rack or shelf mounting.

Best fit for a centralized VMS server role in a mid-to-large surveillance deployment — 32 threads and the 512 GB RAM ceiling give you room to consolidate camera streams, analytics engines, and recording to a single well-specified machine rather than distributing across multiple lower-spec nodes.
