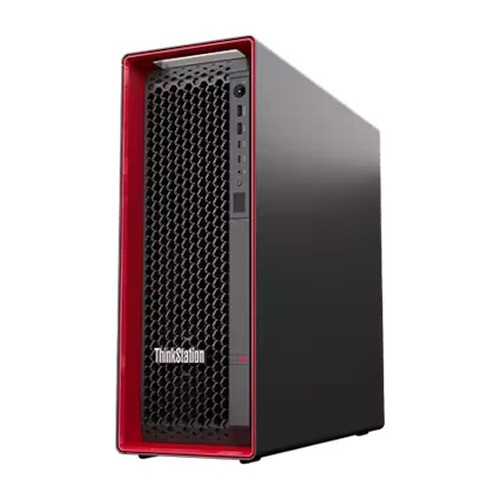

Lenovo 30GA0060US ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA0060US) is a tower workstation built around Intel's Xeon w3-2423 processor — a 6-core, 12-thread chip running at 2.1 GHz base with 4.2 GHz max turbo frequency. At 9 lb, this is a compact tower form factor designed for environments where sustained compute throughput matters: VMS recording servers, video analytics edge nodes, physical security operations centers, and engineering workstations running GPU-accelerated inference. With DDR5 memory architecture and support for both PCIe 4.0 and 5.0 expansion slots, the 30GA0060US is positioned at the intersection of current-generation performance and next-cycle expandability.

Key Features

• Intel Xeon w3-2423, 6C/12T at 2.1–4.2 GHz: The Xeon W family is Intel's workstation-class line — ECC memory support, higher TDP headroom, and better sustained throughput under load than consumer Core processors. The 4.2 GHz turbo ceiling means single-threaded decode tasks (live view in VMS) stay snappy even when background recording threads are saturating the cores.
• 32 GB DDR5-SDRAM (expandable to 512 GB): DDR5 delivers higher bandwidth per channel than DDR5 — relevant when multiple high-resolution camera streams are being decoded simultaneously. The 512 GB ceiling means this chassis can grow with the deployment: add RAM as channel counts scale without replacing the platform.
• PCIe 5.0 and 4.0 slot support: PCIe 5.0 slots double the per-lane bandwidth of Gen 4 — critical if you plan to install a high-throughput NVMe storage controller or a modern GPU accelerator for deep learning analytics. Gen 4 slots provide backward compatibility for existing expansion cards.
• 120 W base TDP / 144 W max turbo power: The Xeon w3-2423 draws up to 144 W under full turbo load. Size your UPS and rack power circuit accordingly — on a shared circuit with other rack equipment, this is a non-trivial draw that needs to be planned, not assumed.
• LGA 4677 (Socket E) platform: Socket E is Intel's current-generation Xeon W socket, which means the platform supports the broader Xeon W-2400 and W-3400 family. If workload requirements grow beyond the w3-2423, the socket provides a path to higher core-count processors within the same chassis.
• 15 MB Smart Cache: The larger last-level cache reduces memory fetch latency for workloads with repetitive access patterns — video codec pipelines and database-backed VMS indexing both benefit from keeping hot data on-die rather than hitting DDR5.
• 9 lb tower chassis: At 9 lb, this is deployable on a desk, on a shelf, or in a rack with an appropriate tray. The compact weight is relevant for distributed deployments where the workstation ships to a remote site and gets installed by local staff rather than a dedicated systems engineer.

Integration and Compatibility

The 30GA0060US runs Windows 11 Pro for Workstations (included), which is compatible with all major VMS platforms including Milestone XProtect, Genetec Security Center, Avigilon Control Center, and Hanwha Wisenet WAVE. The Xeon W platform supports ECC memory — verify your DDR5 ECC DIMMs are on Lenovo's qualified vendor list before ordering RAM upgrades for mission-critical deployments. PCIe slot availability for GPU and capture card expansion depends on the specific build configuration; confirm slot count and primary GPU before ordering add-in cards. For a deeper look at the broader Lenovo workstation and server line, the brand catalog covers the full ThinkStation and ThinkSystem range.

For VMS server deployments, pair this workstation with a qualified network video recorder or use it directly as a software-based recording server. If you are planning a full IP camera deployment, this platform handles the compute side — match it to your camera count and resolution requirements when sizing the recording server role. For guidance on storage and retention planning, see our surveillance storage planning guide. When expanding the workstation's storage capacity, surveillance-grade hard drives and SSDs are the correct media class for continuous write workloads.

Frequently Asked Questions

Q: What processor does the 30GA0060US use?

A: The 30GA0060US is configured with the Intel Xeon w3-2423, a 6-core, 12-thread processor with a 2.1 GHz base frequency and 4.2 GHz max turbo frequency. It has a 15 MB Smart Cache and a 120 W base TDP.

Q: How much RAM does the ThinkStation P5 30GA0060US ship with, and what is the maximum?

A: It ships with 32 GB of DDR5-SDRAM and supports up to 512 GB maximum internal memory. DDR5 provides higher bandwidth than previous-generation DDR4, which benefits multi-stream video decode workloads.

Q: Does the 30GA0060US support PCIe 5.0 expansion cards?

A: Yes. The platform supports both PCIe 5.0 and PCIe 4.0 slots, allowing installation of current-generation GPUs, NVMe storage controllers, and other high-bandwidth expansion cards.

Q: What operating system is included with the 30GA0060US?

A: The 30GA0060US ships with Windows 11 Pro for Workstations, which is compatible with all major VMS platforms used in physical security deployments.

Q: How heavy is the ThinkStation P5 30GA0060US, and can it be rack-mounted?

A: The unit weighs 9 lb. It is a tower form factor; rack mounting requires a compatible tower-to-rack conversion kit, which is not included.

Q: What is the processor socket on the 30GA0060US?

A: The processor uses the LGA 4677 (Socket E) socket, which is Intel's current-generation Xeon W workstation socket and supports the broader Xeon W-2400 and W-3400 processor family.

Jerry Tildsen

When I spec a software-based VMS recording server, the first question is always whether the platform can sustain multi-stream decode under real 24/7 load — not just in a lab demo. The 30GA0060US answers that with the Xeon w3-2423's 12 threads and 4.2 GHz turbo headroom, plus DDR5 bandwidth that keeps up when you are decoding 30-plus 4K streams simultaneously. The 15 MB Smart Cache is not a marketing footnote here — it genuinely reduces latency on the codec pipelines that VMS platforms hammer continuously.

Technical Highlights:

• DDR5 up to 512 GB: Starting at 32 GB gives you headroom to grow without replatforming. A 64-camera 4K deployment with AI analytics running on-box will push past 32 GB — plan the upgrade budget upfront.
• PCIe 5.0 slots: If you are installing a GPU for deep learning inference (license plate recognition, object classification), PCIe 5.0 delivers double the lane bandwidth of Gen 4. That matters when the GPU and the NVMe storage controller are competing for bus bandwidth on a dense recording server.
• 120–144 W TDP envelope: The spread between base (120 W) and max turbo (144 W) means power draw is not flat. On a UPS-backed circuit shared with PoE switches and NAS, budget for the 144 W ceiling plus 20% headroom — not the nameplate average.

Deployment Considerations:

• The LGA 4677 socket supports the full Xeon W-2400 and W-3400 family, so if you are deploying this as a recording server today and expect camera counts to double in 18 months, the processor upgrade path exists within the same chassis — confirm with Lenovo's compatibility matrix before committing.
• Windows 11 Pro for Workstations is included, but VMS vendors (Milestone, Genetec, Avigilon) each have their own OS version support matrices. Verify your VMS version supports Win11 WS before deployment — some enterprise VMS builds lag OS certification by 6-12 months.

This platform is the right call for a 30-to-80-camera software VMS server where you need ECC memory stability, PCIe 5.0 GPU expandability, and a processor that handles sustained decode workloads without thermal throttling — specifically in a command center or server closet where a tower form factor is acceptable and rack density is not the primary constraint.
