Lenovo 30GA005AUS Thinkstation P5 W32435 16G X4 W11PWS

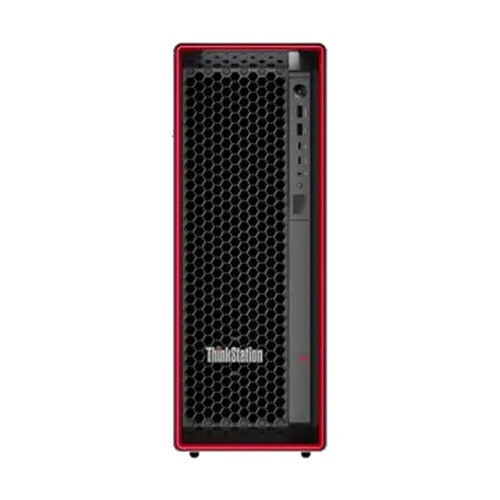

Lenovo 30GA005AUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 (30GA005AUS) is a tower workstation built around Intel's Xeon w3-2435 processor — an 8-core, 16-thread LGA 4677 chip that runs at 3.1 GHz base and boosts to 4.5 GHz under sustained single-threaded load. With 64 GB of DDR5-SDRAM installed and a platform ceiling of 512 GB, this machine is sized for security operations centers, VMS server roles, forensic review stations, and multi-application engineering environments where memory headroom matters more than raw clock speed alone. If you're running Milestone XProtect, Genetec Security Center, or similar VMS platforms that benefit from fast RAM bandwidth, DDR5 moves data noticeably faster than the DDR4 platforms it replaces. At 9 lb, the 30GA005AUS is a full tower form factor designed for permanent rack-adjacent or under-desk deployment — not a compact or rack-mount unit.

Key Features

• Intel Xeon w3-2435 — 8 Cores, 16 Threads: The w3-2435 delivers 3.1 GHz base with a 4.5 GHz boost ceiling across 8 performance cores. For VMS workloads that spawn per-camera decode threads, 16 logical processors mean you're not bottlenecking on thread count at moderate channel densities. The 22.5 MB Smart Cache keeps frequently accessed codec tables close to the execution units, reducing memory round-trips on live-decode scenarios.
• 165 W TDP / 198 W Max Turbo Power: The processor is rated at 165 W base power with a 198 W turbo envelope. This matters for facility planning — factor this into UPS sizing and rack PDU load calculations if this unit shares a circuit with other workstations or displays. It's not a low-power workstation; it's a professional-grade processor designed for sustained multi-threaded performance, not minimal draw.
• 64 GB DDR5-SDRAM Installed: DDR5 delivers roughly double the per-channel bandwidth of DDR4 at equivalent speeds. For VMS platforms that stream decoded video frames into system memory for analytics or multi-monitor display, this translates to smoother live-view performance at higher channel counts. 64 GB installed gives you room to run a VMS server instance alongside a forensic review client and still have headroom for OS overhead.
• 512 GB Maximum Memory Capacity: The platform supports up to 512 GB of DDR5-SDRAM across the LGA 4677 socket's memory channels. That ceiling matters if this workstation doubles as a VMS recording server or AI-inference node — workloads like deep-learning analytics engines or large video buffer caches can consume memory faster than disk I/O can compensate.
• PCIe 4.0 and 5.0 Slot Support: Both PCIe generations are available on this platform. PCIe 5.0 slots double the bandwidth of Gen 4 — relevant if you're installing a high-throughput NVMe storage card, a capture card for high-bitrate video ingest, or a professional GPU for GPU-accelerated video analytics. Gen 4 slots remain available for standard NVMe SSDs, capture cards, and network adapters.
• LGA 4677 (Socket E) Platform: The Xeon W workstation platform on Socket E is Intel's current professional-tier architecture for single-socket tower workstations. It's distinct from the consumer Core i9 or server Xeon Scalable lines — the w3-2435 sits in the entry tier of this platform, meaning the motherboard and memory architecture support ECC memory (verify ECC support on the specific configuration before ordering if ECC is a hard requirement).

Integration and Compatibility

The 30GA005AUS ships with Windows 11 Pro for Workstations, which provides native support for most commercial VMS clients, access control management software, and enterprise security platforms. The PCIe expansion capability means you can add dedicated GPU resources for GPU-accelerated analytics (check your VMS vendor's GPU compatibility list), additional NVMe storage controllers for high-channel recording, or 10GbE network cards for high-bitrate camera networks. The Xeon W platform is compatible with workstation-class professional GPUs from major vendors — relevant for Genetec, Milestone, or Avigilon analytics workloads that offload processing to a discrete GPU. Verify specific GPU and RAM compatibility with Lenovo's configuration guide for the P5 chassis before ordering expansion components.

Frequently Asked Questions

Q: What processor does the ThinkStation P5 30GA005AUS use?

A: The 30GA005AUS ships with the Intel Xeon w3-2435, an 8-core, 16-thread processor running at 3.1 GHz base and boosting to 4.5 GHz. It uses the LGA 4677 (Socket E) platform with a 22.5 MB Smart Cache and a 165 W base TDP.

Q: How much RAM comes installed, and what is the maximum?

A: It ships with 64 GB of DDR5-SDRAM. The platform supports a maximum of 512 GB of DDR5 memory, providing substantial headroom for future expansion as workloads grow.

Q: Does the 30GA005AUS support PCIe 5.0 expansion cards?

A: Yes. The ThinkStation P5 platform supports both PCIe 4.0 and PCIe 5.0 slots, allowing you to install Gen 5 NVMe storage controllers, professional GPUs, or high-bandwidth capture cards.

Q: What operating system does this workstation ship with?

A: The 30GA005AUS ships with Windows 11 Pro for Workstations, as indicated by the product designation (W11PWS in the model name).

Q: Is the 30GA005AUS suitable as a VMS recording server?

A: The Xeon w3-2435 with 64 GB DDR5 and PCIe 5.0 expansion capability makes this workstation a viable platform for mid-range VMS recording and management roles. Specific channel capacity depends on your VMS software, camera bitrates, and any additional storage or GPU cards installed. Consult your VMS vendor's hardware sizing guide for precise recommendations.

Q: What is the weight of the 30GA005AUS?

A: The unit weighs 9.00 lb as sourced from distribution data. This reflects the base chassis weight; actual shipping weight will be higher.

Jerry Tildsen

The 30GA005AUS ThinkStation P5 is the right call when you need a workstation that can handle sustained multi-threaded decode without the memory constraints that hamstring consumer-grade hardware. The Xeon w3-2435's 22.5 MB Smart Cache is a practical differentiator on live VMS decode workloads — it keeps the codec state resident rather than thrashing DDR5 on every frame, which matters when you're managing 32 or more concurrent streams on a single display node.

Technical Highlights:

• DDR5 Memory Architecture: 64 GB installed with a 512 GB platform ceiling — DDR5 bandwidth is roughly double DDR4 at equivalent channel count, which directly benefits VMS platforms streaming decoded frames to analytics engines or multi-monitor walls.
• PCIe 5.0 Expansion: Gen 5 slot availability means you're not stuck negotiating bandwidth between a high-throughput NVMe array and a professional GPU on a shared Gen 4 root complex — each can occupy its own lane budget.
• 4.5 GHz Boost on 8 Cores: The w3-2435 doesn't sacrifice single-thread performance for core count — 4.5 GHz turbo keeps latency-sensitive workloads like access control event processing or alarm management responsive even under concurrent recording load.

Deployment Considerations:

• The 165 W base / 198 W max turbo power envelope requires a UPS and PDU sized accordingly — don't share this unit's circuit with high-draw peripherals like large display arrays or unmanaged PoE switches without calculating aggregate load first.
• ECC memory support should be verified against your specific memory configuration before ordering if your VMS or analytics platform requires error-correcting RAM — the LGA 4677 platform supports ECC, but confirm the installed DIMM configuration matches that requirement.

This workstation is a natural fit for a mid-tier VMS management and recording node in a 64–128 camera deployment where the operator needs sustained decode performance, fast memory for analytics buffering, and expansion room to grow into GPU-accelerated video intelligence without swapping the host platform.
