Lenovo 30GA004EUS Thinkstation P5 W32425 16G X1 W11PWS

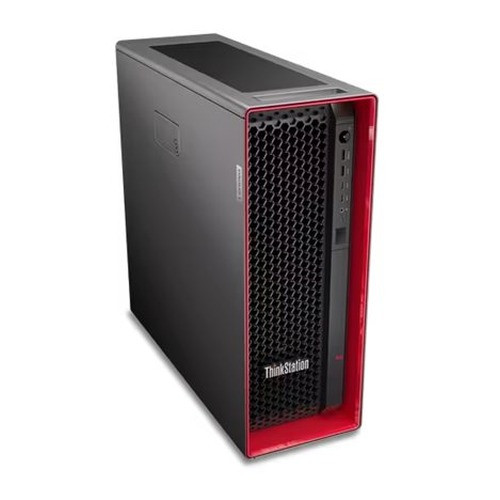

Lenovo 30GA004EUS ThinkStation P5 Tower Workstation

Overview

The Lenovo ThinkStation P5 30GA004EUS is a professional tower workstation built around Intel's Xeon w3-2425 processor — a 6-core, 12-thread chip from the Lenovo workstation lineup designed for compute-intensive security, surveillance, and enterprise workflows. At 3.0 GHz base with a 4.4 GHz maximum turbo frequency, it handles the sustained multi-threaded loads that VMS servers, video analytics platforms, and CAD environments demand without the thermal throttling that plagues desktop-class silicon under continuous operation.

Where this machine earns its place in professional workstations is the memory architecture: DDR5-SDRAM at 16 GB standard with a ceiling of 512 GB. For a VMS operator expanding from 16 channels to 128, or a security integrator standing up an on-premises analytics server, that headroom matters — you are not buying a new chassis when the deployment grows. Pair that with PCIe 4.0 and 5.0 slot support and you have a platform that can absorb next-generation GPU accelerators and high-bandwidth capture cards without a platform change.

Key Features

• Intel Xeon w3-2425 (6C/12T, 3.0–4.4 GHz): The LGA 4677 (Socket E) processor delivers 12 concurrent threads at up to 4.4 GHz turbo — enough headroom to run simultaneous video decoding, analytics inference, and OS tasks without contention. The 130W base power envelope (156W turbo) is manageable in a standard rack or tower deployment without exotic cooling.
• 15 MB Intel Smart Cache: The on-die cache reduces main-memory round-trips on latency-sensitive workloads — frame buffering, database lookups in access-control systems, and rapid context switches in multi-application VMS environments all benefit directly. Larger cache means fewer stalls when the working set fits.
• 16 GB DDR5-SDRAM (expandable to 512 GB): DDR5's higher memory bandwidth compared to DDR4 directly benefits applications that move large video buffers — expect measurably better throughput on concurrent HD and 4K stream handling. The 512 GB ceiling means you can configure this platform for enterprise-scale analytics or simulation without hitting a memory wall.
• PCIe 5.0 and 4.0 slot support: PCIe 5.0 doubles the per-lane bandwidth of PCIe 4.0. If you install a high-bandwidth GPU for AI-accelerated video analytics, or an NVMe RAID card for high-write surveillance storage, the slot bandwidth won't be your bottleneck. This is a forward-compatible platform for hardware that is only beginning to ship at PCIe 5.0 speeds.
• Intel Xeon W platform (LGA 4677 / Socket E): The Xeon W socket targets workstation-class ISV certification requirements — professional GPU drivers, ECC memory support, and long-lifecycle platform stability. For integrators deploying VMS or PSIM software with ISV certifications tied to specific CPU platforms, Xeon W is the correct choice over Core-series alternatives.
• Windows 11 Pro for Workstations (W11PWS): The pre-installed OS is the workstation variant of Windows 11 Pro, which enables ReFS file system support, persistent memory optimization, and higher RAM ceilings than standard Pro. This is the correct OS tier for multi-GPU and high-memory configurations rather than standard Pro.
• 9 lb chassis weight: At 9.0 lb, the ThinkStation P5 is a tower-format machine sized for under-desk or equipment-room deployment. Verified country of origin is Mexico, which is relevant for procurement teams with TAA or domestic sourcing requirements — confirm TAA compliance status independently for your specific contract vehicle.

Integration and Compatibility

The 30GA004EUS ships with a single 16 GB DDR5 DIMM, leaving additional memory slots available for expansion without removing the base module. The PCIe 5.0 and 4.0 slot mix supports professional GPU cards (NVIDIA RTX Ada series, for example) that major VMS platforms require for hardware-accelerated decoding. Integrators pairing this workstation with a network video recorder infrastructure should verify GPU SKU compatibility with their specific VMS — Milestone XProtect, Genetec Security Center, and Avigilon Control Center each publish their own hardware compatibility matrices.

For storage configuration, the base SKU ships without a specified storage drive in the evidence provided — confirm the exact storage configuration at the time of order. The Xeon w3-2425 platform supports NVMe M.2 and SATA configurations standard for ThinkStation P5 chassis. For teams building out surveillance storage planning, review the storage and retention planning guide to size correctly before configuring the drive bay.

Network connectivity and GPU selection are determined by the installed expansion cards — this platform does not constrain either. The ThinkStation P5 chassis accommodates full-length, double-wide GPU cards that compact workstations cannot, which is relevant when deploying AI-accelerated video analytics requiring high-end compute cards. For PoE infrastructure planning alongside this workstation deployment, the PoE network switches category covers the edge-layer infrastructure.

Frequently Asked Questions

Q: What processor does the Lenovo ThinkStation P5 30GA004EUS use?

A: The 30GA004EUS is configured with the Intel Xeon w3-2425, a 6-core, 12-thread processor running at 3.0 GHz base and up to 4.4 GHz maximum turbo frequency, with 15 MB Intel Smart Cache. It is mounted in the LGA 4677 (Socket E) socket and has a 130W base TDP (156W turbo).

Q: How much RAM does the ThinkStation P5 30GA004EUS ship with, and what is the maximum?

A: It ships with 16 GB of DDR5-SDRAM. The platform supports expansion up to 512 GB maximum internal memory, which provides significant headroom for memory-intensive workloads such as large-scale video analytics or virtualization environments.

Q: Does the 30GA004EUS support PCIe 5.0?

A: Yes. The ThinkStation P5 30GA004EUS supports both PCIe 5.0 and PCIe 4.0 expansion slots. PCIe 5.0 delivers double the per-lane bandwidth of PCIe 4.0, which benefits high-bandwidth GPU and NVMe storage card installations.

Q: What operating system does this workstation ship with?

A: The 30GA004EUS ships with Windows 11 Pro for Workstations (W11PWS), which supports ReFS, higher memory ceilings, and workstation-optimized features not present in standard Windows 11 Pro.

Q: Is the ThinkStation P5 30GA004EUS TAA compliant?

A: The verified country of origin is Mexico. TAA compliance status should be confirmed independently with Lenovo or your contract vehicle administrator for your specific procurement requirement, as TAA eligibility can vary by configuration and contract.

Karl Wilson

The 30GA004EUS is a workstation configuration I'd put in front of integrators standing up a mid-scale VMS server or security analytics node. The Xeon w3-2425's 4.4 GHz turbo and 12 threads give you the burst performance that matters when operators are scrubbing video or running simultaneous analytics inference — and the 512 GB DDR5 ceiling means this chassis won't become the constraint as camera counts and AI workloads grow over a 5–7 year deployment window.

Technical Highlights:

• 6-Core Xeon w3-2425 at 130W TDP: 130W base power (156W turbo max) keeps thermal management straightforward in a tower or equipment-room environment — no exotic cooling infrastructure required, and the LGA 4677 platform carries workstation-class stability expectations.
• DDR5 expandable to 512 GB: Starting at 16 GB with DDR5's higher memory bandwidth means you are not memory-constrained on day one, and the 512 GB ceiling gives you a platform that can scale to enterprise analytics or VM-dense configurations without a chassis swap.
• PCIe 5.0 slot support: Most analytics GPU cards shipping today are PCIe 4.0, but PCIe 5.0 slot availability means this platform is ready for next-generation accelerators without a motherboard replacement — a meaningful factor on a 5-year hardware refresh cycle.

Deployment Considerations:

• The base configuration ships with a single 16 GB DDR5 module — verify your target channel configuration (dual-channel requires a matched pair) and storage drive spec at order time, as those details were not confirmed in available evidence.
• At 9.0 lb, this is a tower-format machine; rack integration requires a tower-to-rack conversion kit. Plan accordingly if this is going into a structured cabling room rather than a desk deployment.

This platform is the right call for a surveillance operations center build-out or a mid-size enterprise VMS server where the workload will grow — the Xeon W socket, DDR5 memory architecture, and PCIe 5.0 slots give the deployment room to scale without a platform change inside a normal refresh cycle.
