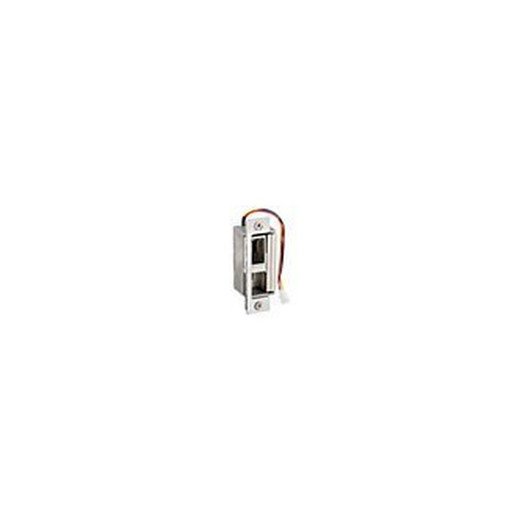

HES RP-36 LED Faceplate
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

HES RP-36 LED Faceplate

Overview

The RP-36 is an LED faceplate accessory designed to mount on HES electric strike bodies, delivering at-a-glance visual confirmation of strike state (locked or unlocked). In access control installations where door operators, maintenance staff, or security personnel need instant status verification without consulting a remote panel, the integrated LED eliminates guesswork and reduces support calls. Install it on strike frames where visual feedback improves operational certainty and troubleshooting speed.

Compatibility

The RP-36 is compatible with HES electric strike product lines. Verify the exact strike model (e.g., HES 1006, 5000, 7000, or 8000 series) against your current strike body before ordering — faceplate mounting points vary by strike housing design. Contact the manufacturer or your integrator if you need confirmation for a specific strike SKU.

Installation Notes

Mount the faceplate directly onto the compatible HES strike body using the supplied fastening points. The LED is powered by the same 24VDC supply line that energizes the strike itself — no separate power connection is required. Ensure the strike power supply remains stable at 24VDC to guarantee consistent LED operation. Position the faceplate on the door frame or strike housing face so the LED is clearly visible to personnel monitoring the door.

Expert Analysis
Specifications
Weight: 2 lb
Country of Origin: US
Door Capacity: 92 Door
Reader Type: Keypad
Communication: Wiegand
Strike Type: Electric Strike
Input Voltage: 24VDC
Product Type: Reader
Poe Budget: Supplies
Poe Power: PoE (802.3af)
Mount Type: Rack
door_capacity: 92 Door
reader_type: Keypad
strike_type: Electric Strike
voltage: 24VDC
product_type: Reader
PoE_Budget: Supplies
Compatible With: HES
Type: LED Faceplate
Product_Type: LED Faceplate
Q&A
Reviews
Product Video

HES RP-36 LED Faceplate

$39.00
$38.99
Add to Cart
