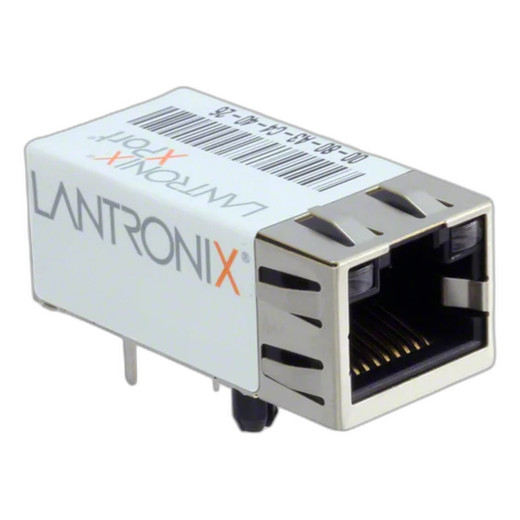

Lantronix XP1001000-05R IC Module
Overview
The Lantronix XP1001000-05R is an integrated circuit module within the XPort XE product line — a 25MHz processor-based component rated for extended temperature operation. This module handles serial-to-Ethernet bridging in DSTNI-EX distributed systems where processing density and temperature resilience matter. The XP1001000-05R variant ships without encryption and without MODBUS support, making it the baseline option for installations where those features are not required. RoHS compliance ensures compatibility with modern procurement standards.
Compatibility
The XP1001000-05R integrates into Lantronix DSTNI-EX infrastructure and XPort-family platforms. Verify your system model documentation before ordering — IC socket compatibility with your host platform is required. This module is a direct form-factor replacement within compatible Lantronix systems; however, board-level integration specifics (pinout, firmware revision, voltage rails) must match your existing deployment. If your application requires MODBUS support or encryption, the XP1001000M-05R (MODBUS variant) or XP1002000-05R (encryption variant) may be more suitable.
Installation Notes
The XP1001000-05R mounts directly into a compatible IC socket on the host Lantronix platform. No external tools are typically required beyond standard ESD precautions. Verify power supply voltage and thermal clearance within your enclosure — the extended temperature rating (full operational range not specified in available documentation) allows deployment in non-climate-controlled environments, but board-level thermal design of the host system remains critical. Minimum order quantity is 50 units per Lantronix; contact the manufacturer or a channel partner for smaller quantities or evaluation samples.
