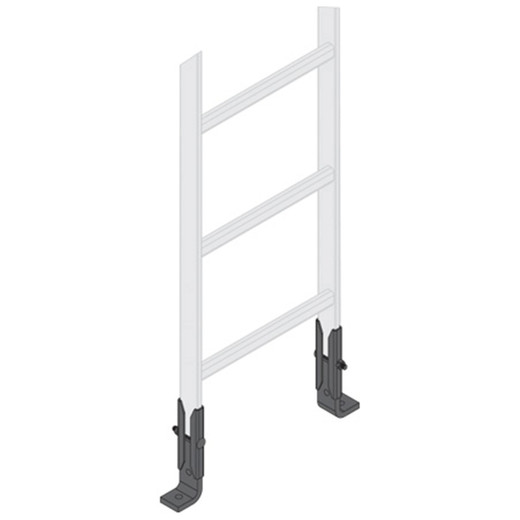

Middle Atlantic Ladder End Support Hardware Kit Steel Black Zinc finish - CLH-RES

Middle Atlantic CLH-RES Cable Ladder End Support Hardware Kit

Overview

The CLH-RES is a steel end-support hardware kit for terminating Middle Atlantic cable ladder runs cleanly at rack enclosures or structural endpoints. The black zinc coat finish (matching standard CLH-series ladder stock) prevents corrosion in the plenum and overhead infrastructure environments where cable ladders typically live. At 6.67 in tall × 2 in wide × 1.86 in deep, the CLH-RES is purpose-sized to close off a ladder run without consuming meaningful overhead real estate — a detail that matters in congested above-ceiling spaces. Specify one CLH-RES per ladder end requiring structural support termination.

Compatibility

Designed for use with Middle Atlantic CLH-series cable ladders — the standard cable management ladder line from Middle Atlantic (a Legrand AV brand). Confirm your ladder width (typically 6 in, 9 in, or 12 in CLH variants) against the kit's 2 in mount footprint before ordering; the CLH-RES is a fixed-width end bracket, not adjustable. Pairs with Middle Atlantic rack enclosures and ladder splice kits as part of a complete structured cabling infrastructure. Not intended for non-Middle Atlantic cable tray or wire mesh systems — cross-brand ladder rail profiles differ enough in rung pitch and side-rail geometry to make compatibility unreliable.

Installation Notes

Ships at 2.5 lbs — light enough for a single-tech overhead install. The black zinc coat is a corrosion-inhibiting finish suited to indoor plenum and equipment room environments; it is not rated for wet or outdoor exposure. Verify structural anchor capacity at the termination point before mounting: the end support transfers ladder load (cable weight + ladder weight) to the mounting surface, so a solid backing — strut channel, threaded rod drop, or structural ceiling — is required. Use standard hardware appropriate to your mounting substrate; no proprietary fasteners are included per the available evidence.

What's in the Box

• 1× CLH-RES cable ladder end support hardware kit
