Lenovo
SKU: 4XG7A63439
Lenovo 4XG7A63439 SR630 V2 Gold 6336Y 24C 185W 2.4GHZ
In stock · Ships same business day
$11,019.99

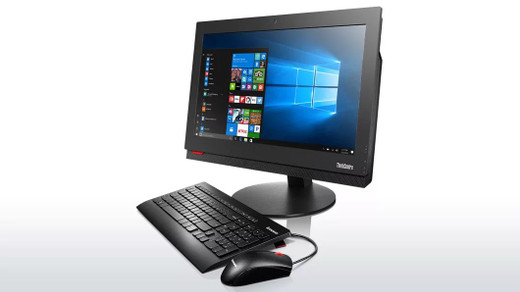

Product images are provided for reference and may not represent the exact model, configuration, or included
components.
Overview
SKU:
7Z71SHLK00
Condition:
New
Lenovo LA CTO SR630 V2 XE 6336Y MC00116675 4/23 - 7Z71SHLK00
Lenovo 7Z71SHLK00 ThinkSystem SR630 V2 CTO 1U Rack ServerOverviewThe Lenovo 7Z71SHLK00 is a configure-to-order (CTO) variant of the ThinkSystem SR630 …
Lenovo LA CTO SR630 V2 XE 6336Y MC00116675 4/23 - 7Z71SHLK00
$21,001.99
Build Your Complete System
Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product. Adjust quantities and add the entire bundle to your cart in one click.
Item
Qty
Status
Price
Mounts & Accessories recommended
Recorders, NVRs & Storage recommended
Licenses & Software where applicable
Services & Training optional
Bundle Summary
Bundle Subtotal:
$0.00
Mounts & Accessories:
$0.00
Recorders & NVRs:
$0.00
Licenses:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
7Z71SHLK00
Condition:
New
No Bots, Just Experts
Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.
Send Laura a Message
Senior Specialist · Typically replies within 1 business day
Description
Lenovo 7Z71SHLK00 ThinkSystem SR630 V2 CTO 1U Rack Server
Overview
The Lenovo 7Z71SHLK00 is a configure-to-order (CTO) variant of the ThinkSystem SR630 V2 — a 1U, dual-socket rack server built on the Intel Ice Lake-SP Xeon Scalable platform. This specific CTO is configured with an Intel Xeon Gold 6336Y (24-core, 185W, 2.4GHz base) and carries a 3-year warranty under machine type 7Z71. At 60 lbs shipping weight, plan rack infrastructure accordingly. It fits deployments where compute density, memory headroom, and redundant power matter more than raw footprint: video analytics servers, multi-channel NVR back-ends, or enterprise edge compute nodes.
Compatibility
The SR630 V2 (machine types 7Z70/7Z71) runs on the Intel C621A 'Lewisburg' chipset (Whitley platform). It accepts up to 32x DDR4 RDIMMs — reaching 8TB with 256GB 3DS RDIMMs — and supports Intel Optane Persistent Memory modules for configurations up to 12TB. Storage connectivity covers 12Gb SAS/SATA with 8- and 16-port RAID adapters, up to 10x 2.5-inch NVMe front bays, 4x onboard NVMe ports, and 2x internal M.2 slots with optional RAID 1. Up to 3x PCIe 3.0 slots accommodate single-wide GPUs or additional HBAs. Networking options include selectable LOM at 1GbE or 10GbE, optional ML2 and PCIe adapters, and a dedicated 1GbE management port. OS support covers Windows Server, RHEL, SUSE Linux Enterprise Server, and VMware ESXi. Management integrates with XClarity Controller and the full XClarity Administrator software suite.
Installation Notes
The chassis measures 440mm wide × 43mm tall × 773mm deep (17.3 × 1.7 × 30.4 in.) — standard 1U EIA rack. Cooling relies on up to 8x N+1 dual-rotor hot-swap 40mm fans; configuration and thermal load determine exact fan count. Power supply options include dual hot-swap PSUs up to 1100W Platinum or a 750W Titanium hot-swap unit; -48V DC and 240V HVDC variants are available for Telco and CN deployments respectively. Drives, PSUs, and fans are all hot-swap — factor this into maintenance planning for always-on workloads. No internal optical or tape drive bays; external solutions required for those use cases.
Specifications
Weight:
60.00 lb
Country Origin:
MX
Country Of Origin:
MX
Unspsc Code:
43211502
Feature:
SR630
Disk:
Up to 4x 3.5-inch or 10x 2.5-inch front bays 2x 2.5-inch rear SAS/SATA Up to 10x 2.5-inch NVMe 2x Internal M.2 with optional RAID 1
Raid:
12Gb SAS/SATA/RAID support PCIe 3.0 adapters Range of 8-, and 16-port RAID adapters 8- and 16-port HBAs 4x Onboard NVMe ports NVMe switch adapter support
Networking:
Selectable LOM, 1GbE or 10GbE Optional ML2 and PCIe adapters 1GbE dedicated management port
Pcie:
Up to 3x PCIe 3.0 slots Supports 1x 75W GPU 1x internal RAID slot
Management And Security:
XClarity Controller with upgrades Full XClarity software suite including XClarity Administrator Optional lockable front bezel
Power Supplies:
2x Hot-swap PSUs up to 1100W, Platinum 750W Hot-swap Titanium PSU -48V DC power for Telco 240V HVDC support in China
Components:
Specification
Machine Types:
7Z70 - 1 year warranty 7Z71 - 3 year warranty
Form Factor:
1U rack.
Chipset:
Intel C621A "Lewisburg" chipset, part of the platform codenamed "Whitley"
Memory Maximum:
With RDIMMs: Up to 8TB by using 32x 256GB 3DS RDIMMs With Persistent Memory: Up to 12TB by using 16x 256GB 3DS RDIMMs and 16x 512GB Pmem modules
Memory Protection:
ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Platinum or Gold processors), and memory mirroring.
Optical Drive Bays:
No internal optical drive.
Tape Drive Bays:
No internal backup drive.
Gpu Support:
Supports up to 3x single-wide GPUs
Cooling:
Up to 8x N+1 dual-rotor redundant hot-swap 40 mm fans, configuration dependent. One fan integrated in each power supply.
Video:
G200 graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz.
Hot-Swap Parts:
Drives, power supplies, and fans.
Operating Systems Supported:
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics.
Dimensions:
Width: 440 mm (17.3 in.), height: 43 mm (1.7 in.), depth: 773 mm (30.4 in.). See Physical and electrical specifications for details.
Machine Type/Model General Purpose:
Machine Type/Model for AI and HPC
7Z71Cto1Ww:
7Z71CTOLWW
7Z71Ctoaww:
7Z71CTOHWW
7Z70Cto1Ww:
7Z70CTOLWW
Feature Code:
Description
B8N6:
ThinkSystem 1U 2.5" Chassis with 8 or 10 Bays
B8N5:
ThinkSystem 1U 3.5" Chassis with 4 Bays
Model:
Description
7Z71A014Ap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A019Ap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A01Lap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A01Rap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A03Bap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A03Kap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A09Pap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A09Qap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A09Rap:
1x Silver 4309Y 8C 105W 2.8G
7Z71A01Jap:
1x Silver 4310 12C 120W 2.1G
7Z71A01Pap:
1x Silver 4310 12C 120W 2.1G
7Z71A027Ap:
1x Silver 4310 12C 120W 2.1G
7Z71A02Eap:
1x Silver 4310 12C 120W 2.1G
7Z71A03Cap:
1x Silver 4310 12C 120W 2.1G
7Z71A03Hap:
1x Silver 4310 12C 120W 2.1G
7Z71A09Sap:
1x Silver 4310 12C 120W 2.1G
7Z71A09Tap:
1x Silver 4310 12C 120W 2.1G
7Z71A01Hap:
1x Silver 4314 16C 135W 2.4G
7Z71A02Bap:
1x Silver 4314 16C 135W 2.4G
7Z71A03Dap:
1x Silver 4314 16C 135W 2.4G
7Z71A03Rap:
1x Silver 4314 16C 135W 2.4G
7Z71A01Bap:
1x Silver 4316 20C 150W 2.3G
7Z71A024Ap:
1x Silver 4316 20C 150W 2.3G
7Z71A02Cap:
1x Silver 4316 20C 150W 2.3G
7Z71A031Ap:
1x Silver 4316 20C 150W 2.3G
7Z71A016Ap:
1x Gold 5315Y 8C 140W 3.2G
7Z71A02Dap:
1x Gold 5315Y 8C 140W 3.2G
7Z71A015Ap:
1x Gold 5317 12C 150W 3.0G
7Z71A02Zap:
1x Gold 5317 12C 150W 3.0G
7Z71A01Xap:
1x Gold 5318Y 24C 165W 2.1G
7Z71A034Ap:
1x Gold 5318Y 24C 165W 2.1G
7Z71A020Ap:
1x Gold 6330 28C 205W 2.0G
7Z71A02Jap:
1x Gold 6330 28C 205W 2.0G
7Z71A02Aap:
1x Gold 6336Y 24C 185W 2.4G
7Z71A02Fap:
1x Gold 6336Y 24C 185W 2.4G
7Z71A018Au:
1x Silver 4309Y 8C 105W 2.8G
7Z71A06Uau:
1x Silver 4309Y 8C 105W 2.8G
7Z71A013Au:
1x Silver 4310 12C 120W 2.1G
7Z71A06Tau:
1x Silver 4310 12C 120W 2.1G
7Z71A030Au:
1x Silver 4314 16C 135W 2.4G
7Z71A06Sau:
1x Silver 4314 16C 135W 2.4G
7Z71A032Au:
1x Silver 4316 20C 150W 2.3G
7Z71A02Wau:
1x Gold 5318Y 24C 165W 2.1G
7Z71A05Sbr:
2x Silver 4310 12C 120W 2.1G
7Z71A05Tbr:
2x Silver 4310 12C 120W 2.1G
7Z71A05Ubr:
2x Silver 4314 16C 135W 2.4G
7Z71A05Vbr:
2x Silver 4314 16C 135W 2.4G
7Z71A05Rbr:
2x Gold 5318Y 24C 165W 2.1G
7Z711006Br:
1x Silver 4309Y 8C 105W 2.8G
7Z71A04Ebr:
1x Silver 4309Y 8C 105W 2.8G
7Z71A06Rbr:
1x Silver 4309Y 8C 105W 2.8G
7Z71A07Hbr:
1x Silver 4309Y 8C 105W 2.8G
7Z71A098Br:
1x Silver 4309Y 8C 105W 2.8G
7Z71A099Br:
1x Silver 4309Y 8C 105W 2.8G
7Z71A04Dbr:
1x Silver 4310 12C 120W 2.1G
7Z71A06Hbr:
1x Silver 4310 12C 120W 2.1G
7Z71A06Pbr:
1x Silver 4310 12C 120W 2.1G
7Z71A07Gbr:
1x Silver 4310 12C 120W 2.1G
7Z71A08Kbr:
1x Silver 4310 12C 120W 2.1G
7Z71A08Qbr:
1x Silver 4310 12C 120W 2.1G
7Z71A09Abr:
1x Silver 4310 12C 120W 2.1G
7Z71A09Bbr:
1x Silver 4310 12C 120W 2.1G
7Z71A09Hbr:
1x Silver 4310 12C 120W 2.1G
7Z71A09Jbr:
1x Silver 4310 12C 120W 2.1G
7Z71A06Kbr:
1x Silver 4314 16C 135W 2.4G
7Z71A06Lbr:
1x Silver 4316 20C 150W 2.3G
7Z71A06Jbr:
1x Gold 5318Y 24C 165W 2.1G
7Z71A062Ea:
2x Silver 4310 12C 120W 2.1G
7Z71A01Gea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A02Uea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A03Tea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A040Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A04Cea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A052Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A055Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A05Aea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A05Gea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A05Nea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A05Qea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A063Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A067Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A068Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A06Gea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A070Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A075Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A07Bea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A07Jea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A086Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A088Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A08Bea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A08Fea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A08Mea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A091Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A094Ea:
1x Silver 4309Y 8C 105W 2.8G
7Z71A01Cea:
1x Silver 4310 12C 120W 2.1G
7Z71A025Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A02Rea:
1x Silver 4310 12C 120W 2.1G
7Z71A03Lea:
1x Silver 4310 12C 120W 2.1G
7Z71A03Zea:
1x Silver 4310 12C 120W 2.1G
7Z71A04Bea:
1x Silver 4310 12C 120W 2.1G
7Z71A04Yea:
1x Silver 4310 12C 120W 2.1G
7Z71A050Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A053Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A059Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A05Bea:
1x Silver 4310 12C 120W 2.1G
7Z71A064Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A06Aea:
1x Silver 4310 12C 120W 2.1G
7Z71A06Fea:
1x Silver 4310 12C 120W 2.1G
7Z71A06Zea:
1x Silver 4310 12C 120W 2.1G
7Z71A079Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A07Aea:
1x Silver 4310 12C 120W 2.1G
7Z71A07Eea:
1x Silver 4310 12C 120W 2.1G
7Z71A07Uea:
1x Silver 4310 12C 120W 2.1G
7Z71A084Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A089Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A08Dea:
1x Silver 4310 12C 120W 2.1G
7Z71A08Lea:
1x Silver 4310 12C 120W 2.1G
7Z71A08Xea:
1x Silver 4310 12C 120W 2.1G
7Z71A092Ea:
1x Silver 4310 12C 120W 2.1G
7Z71A09Mea:
1x Silver 4310 12C 120W 2.1G
7Z71A02Hea:
1x Silver 4314 16C 135W 2.4G
7Z71A03Gea:
1x Silver 4314 16C 135W 2.4G
7Z71A03Pea:
1x Silver 4314 16C 135W 2.4G
7Z71A03Uea:
1x Silver 4314 16C 135W 2.4G
7Z71A03Yea:
1x Silver 4314 16C 135W 2.4G
7Z71A04Aea:
1x Silver 4314 16C 135W 2.4G
7Z71A04Zea:
1x Silver 4314 16C 135W 2.4G
7Z71A05Mea:
1x Silver 4314 16C 135W 2.4G
7Z71A069Ea:
1x Silver 4314 16C 135W 2.4G
7Z71A073Ea:
1x Silver 4314 16C 135W 2.4G
7Z71A07Cea:
1x Silver 4314 16C 135W 2.4G
7Z71A07Pea:
1x Silver 4314 16C 135W 2.4G
7Z71A08Aea:
1x Silver 4314 16C 135W 2.4G
7Z71A08Eea:
1x Silver 4314 16C 135W 2.4G
7Z71A08Yea:
1x Silver 4314 16C 135W 2.4G
7Z71A093Ea:
1x Silver 4314 16C 135W 2.4G
7Z71A09Lea:
1x Silver 4314 16C 135W 2.4G
7Z71A02Tea:
1x Silver 4316 20C 150W 2.3G
7Z71A049Ea:
1x Silver 4316 20C 150W 2.3G
7Z71A08Zea:
1x Silver 4316 20C 150W 2.3G
7Z71A090Ea:
1x Silver 4316 20C 150W 2.3G
7Z71A017Ea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A01Dea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A02Gea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A02Vea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A03Jea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A03Xea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A048Ea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A051Ea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A054Ea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A057Ea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A05Lea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A05Pea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A077Ea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A07Fea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A07Tea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A08Cea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A08Gea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A08Jea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A08Pea:
1x Gold 5315Y 8C 140W 3.2G
7Z71A011Ea:
1x Gold 5317 12C 150W 3.0G
7Z71A03Eea:
1x Gold 5317 12C 150W 3.0G
Have Questions?
Build Your Complete System
Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product. Adjust quantities and add the entire bundle to your cart in one click.
Item
Qty
Status
Price
Mounts & Accessories recommended
Recorders, NVRs & Storage recommended
Licenses & Software where applicable
Services & Training optional
Bundle Summary
Bundle Subtotal:
$0.00
Mounts & Accessories:
$0.00
Recorders & NVRs:
$0.00
Licenses:
$0.00
Services:
$0.00
Total:
$0.00
RELATED PRODUCTS
Lenovo
SKU: 7X06SE9T90
Lenovo LA CTO SR650 4210 MC98305121 5/23 Jmmb - 7X06SE9T90
In stock · Ships same business day
$10,586.99
Lenovo
SKU: 4XG7A72959
Lenovo 4XG7A72959 ST650 V2 Gold 6336Y 24C 185W 2.4GHZ
In stock · Ships same business day
$6,939.00
$6,850.99
Save $88.01
Lenovo
SKU: 4XG7A63480
Lenovo 4XG7A63480 SR650 V2 Gold 6336Y 24C 185W 2.4GHZ
In stock · Ships same business day
$11,030.99
Lenovo
SKU: 7Z71A06XNA
Lenovo Thinksystem SR630 V2 5320 32GB - 7Z71A06XNA
In stock · Ships same business day
$8,142.99
Looking for more Lenovo products? Shop the full Lenovo catalog →
System Design, Deployment & Technical Support
Support services and planning resources for commercial surveillance, access control, and infrastructure deployments.
Fixed scope • Fixed price
System Design Assistance
- Get help validating product compatibility
- Coverage requirements
- Storage planning and deployment architecture before you buy.
Deployment & Configuration Support
- Access fixed-scope support for rollout planning
- User setup guidance
- Migration and system standardization across single-site or multi-site deployments
Guides, Tools & Calculators
- PoE requirements
- Storage retention
- Camera selection and deployment methodology
