Digital Watchdog IP Horn Speaker 30W 120dB 350Hz - DW-SWSP30AM

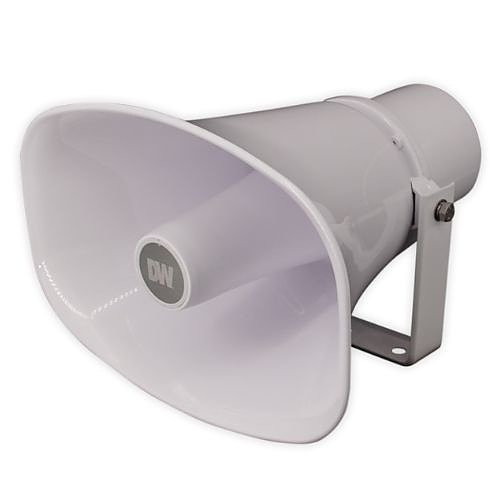

Digital Watchdog DW-SWSP30AM IP Horn Speaker

Overview

The Digital Watchdog DW-SWSP30AM is a 30W IP horn speaker delivering up to 120dB SPL — the kind of output that cuts through ambient noise in loading docks, parking structures, warehouses, and perimeter zones where a standard indoor speaker would be inaudible. Starting at 350Hz, the horn's frequency response is tuned to carry across distance rather than deliver audio fidelity, making the DW-SWSP30AM the right device when the job is audible alarm notification or broadcast, not music or voice intelligibility at close range. If you are designing a Digital Watchdog surveillance deployment and need to pair camera-triggered events with on-site audio deterrence, this horn speaker is built for that integration.

Key Features

• 30W Amplified Output: At 30 watts, this horn can project audio across large open areas — a meaningful spec in parking lots or industrial yards where coverage distances of 50–100 meters are expected. Lower-wattage speakers (5–15W) lose usable volume at distance; 30W keeps the signal above ambient noise at range.
• 120dB Maximum SPL: 120 decibels is the threshold of pain for most individuals and exceeds OSHA permissible exposure limits at sustained use. For security applications, that translates to an unmistakable audible deterrent — effective as a trespasser warning or evacuation alert in noisy industrial environments where 90–100dB units go unnoticed.
• 350Hz Low-Frequency Start: Horn speakers with a 350Hz floor project well outdoors because low-mid frequencies diffract around obstacles and travel farther than high-frequency content. This makes the DW-SWSP30AM better suited to outdoor perimeter broadcast than narrow-band buzzers, which lose energy over distance.
• Horn Form Factor: The directional horn enclosure focuses acoustic energy forward rather than dispersing it omnidirectionally — useful when you need coverage in a defined zone (a gate lane, a loading bay entrance) without disturbing adjacent areas. Mounting angle determines coverage footprint, so plan placement around the target zone geometry.
• IP Network Integration: As an IP-connected device, the DW-SWSP30AM can be triggered by VMS event rules, access control outputs, or network-connected alarm panels — eliminating the need for separate relay wiring runs that analog horn speakers require. This simplifies installation in buildings already running structured cabling to PoE network switches.
• Commercial-Grade Construction: Designed for outdoor and industrial deployment conditions, the horn enclosure is built to handle the environment rather than require a protective housing — relevant in perimeter installations where the speaker is exposed to weather and direct UV.

Integration & Compatibility

The DW-SWSP30AM is designed to operate within IP-based security ecosystems. Integrators deploying Digital Watchdog NVRs or VMS platforms can configure event-driven audio triggers — motion detection, line crossing, or alarm input events — to activate the horn speaker over the network. This is the primary deployment model: camera analytics or access control systems generate an event, the VMS or panel sends a network command, and the horn fires. Consult your VMS documentation for SIP or audio output device configuration. For broader outdoor IP camera deployments paired with audio deterrence, confirm that your NVR or VMS supports audio output device management before ordering. Review your camera and peripheral selection to ensure the horn's coverage zone aligns with your camera field of view for coordinated deterrence.

Frequently Asked Questions

Q: What is the maximum sound output of the DW-SWSP30AM?

A: The DW-SWSP30AM is rated at 120dB maximum SPL — sufficient for audible deterrence and alarm notification in high-ambient-noise environments such as warehouses, loading docks, and outdoor perimeter zones.

Q: What is the power output of the DW-SWSP30AM?

A: The DW-SWSP30AM delivers 30 watts of amplified output, which provides the projection capability needed for large open areas where lower-wattage speakers lose usable volume at distance.

Q: What frequency range does the DW-SWSP30AM cover?

A: The horn speaker begins at 350Hz. This low-mid frequency floor is appropriate for outdoor projection, where lower frequencies travel farther and diffract around obstacles better than high-frequency-only devices.

Q: Can the DW-SWSP30AM be triggered by a VMS or NVR event?

A: As an IP-connected speaker, the DW-SWSP30AM is designed for network-based triggering from VMS event rules, alarm inputs, or access control outputs. Confirm SIP or audio output device support in your specific VMS platform before deployment.

Q: Is the DW-SWSP30AM suitable for outdoor installation?

A: The horn form factor and commercial-grade construction are intended for outdoor and industrial environments. Verify the IP ingress rating for your specific installation conditions in the manufacturer documentation before deploying in high-moisture or submersion-risk locations.

Q: Does the DW-SWSP30AM (also searched as DW SWSP30AM) require a separate amplifier?

A: The 30W rating indicates an amplified device; a separate external amplifier is not required. Confirm power input requirements (PoE or local power) with the manufacturer specification sheet to size your power infrastructure correctly.

Jerry Tildsen

The spec that defines the DW-SWSP30AM's deployment role is the 120dB SPL ceiling at 30W — that combination puts it squarely in the perimeter deterrence and industrial alarm category, not in the conversational PA space. I've seen integrators underspec horn speakers on outdoor projects and end up with 90dB units that are completely inaudible over HVAC exhaust or traffic noise 30 meters out. The DW-SWSP30AM's output level eliminates that problem in most real-world outdoor environments.

Technical Highlights:

• 30W / 120dB SPL: This pairing delivers projection capability appropriate for coverage distances of 50–100 meters in open environments — the difference between a speaker that carries to the far end of a parking lot and one that doesn't.
• 350Hz Frequency Floor: Low-mid frequencies diffract around parked vehicles, fencing, and partial barriers better than high-frequency horn tones — practically, this means coverage is less dependent on line-of-sight than a narrow high-frequency device.
• IP Network Triggering: Network-connected activation removes the relay wiring runs that analog horns require, which matters on retrofit jobs where running new low-voltage wire back to a panel is the expensive part of the project.

Deployment Considerations:

• Before mounting, map the horn's directional coverage pattern against your target zone — the focused dispersion that makes horn speakers effective at distance also means off-axis areas get significantly less SPL. Placement angle is a real design decision, not an afterthought.
• Confirm your VMS or alarm panel supports network audio output device management; not all platforms expose this natively, and a mismatch means you'll need a relay bridge or a different triggering approach.

The DW-SWSP30AM is the right specification for outdoor perimeter audio deterrence on commercial and industrial sites — specifically where camera-triggered audio warnings need to carry across large open zones without a separate amplifier or relay infrastructure.
