Middle Atlantic Integrated 6IN. Fan Top Includes 3 Fans 660 CFM Fits Any WR WRK MRK - MW-6FT-660CFM

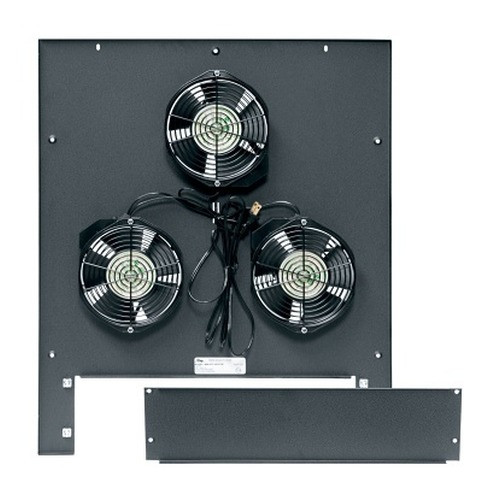

Middle Atlantic MW-6FT-660CFM Integrated 6-Inch Fan Top

Overview

The MW-6FT-660CFM is an active fan top assembly from the Middle Atlantic rack accessories line, designed to exhaust heat from enclosed equipment racks running AV, security, and networking gear. With three fans delivering a combined 660 CFM, it moves enough air to keep high-density 1U/2U equipment from throttling in sealed rack enclosures — a common failure point when you stack amplifiers, NVRs, and PoE switches without forced airflow. The steel black-finish housing integrates flush into the rack top without adding a separate panel-mount step. Running on 120 VAC, it wires directly to standard rack PDUs without a separate transformer or adapter. This is an uncontrolled (non-speed-regulated) active unit — airflow is constant, which simplifies installation but means there's no thermostat-triggered quiet mode if noise floor matters in the deployment space.

Compatibility

The MW-6FT-660CFM is engineered to fit the following Middle Atlantic rack enclosure families: WR series, WRK series, MRK series, VRK series, VMRK series, and DRK series. Confirm your rack's top-panel opening dimensions match the unit's 21.7-inch width footprint before ordering — Middle Atlantic's WR and WRK open-frame and enclosed variants share the same top interface, but always cross-reference your rack model's accessory compatibility list. This unit does not fit SL, BGR, or specialty shallow racks. If you're building out a NVR or server enclosure with high continuous-duty loads, pair this with a front-door blanking panel strategy to force airflow front-to-back rather than short-cycling inside the cabinet.

Installation Notes

The unit ships at 17 lbs — plan for a two-person top-panel swap on tall racks. Power connection is 120 VAC; route the AC lead to a rack PDU with an available outlet rather than daisy-chaining off equipment power connectors. Height spec of 25.06 inches refers to the assembled rack dimension including the fan top — factor this into total rack height calculations before ordering a rack enclosure or wall-mount solution.
