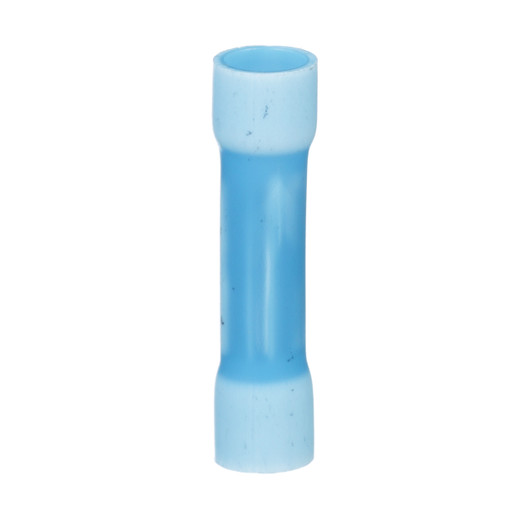

Panduit ESV14BX-Q StrongHold™ Vinyl Insulated Butt Splice

The Panduit ESV14BX-Q delivers contractor-grade wire splicing for 16-14 AWG solid or stranded conductors across low-voltage control, access, and CCTV power installations. Part of the StrongHold™ line, this vinyl-insulated butt splice bridges the gap between disposable commodity connectors and over-spec'd field terminations—offering UL and CSA certified performance at a price point that works for volume jobs. Each 25-piece pack provides the splice capacity most field techs need for a typical multi-door access panel or mid-size intrusion install without carrying bulk carton inventory.

Key Features

16-14 AWG wire range accommodates both panel wiring and device drops

Tin-plated copper barrel resists oxidation in humid or coastal environments

Contractor-grade vinyl insulation rated for general-purpose low-voltage use

UL Listed and CSA Certified for code-compliant installations

Blue color coding matches industry-standard wire gauge identification

1.04" overall length fits tight back-box and J-box spaces

25-piece package quantity balances field convenience with cost efficiency

The ESV14BX-Q uses a seamless tin-plated copper barrel designed for crimped connections with standard ratcheting or hydraulic crimp tools. Tin plating provides a corrosion barrier that outlasts bare copper in plenum spaces, telecom closets, and outdoor-rated enclosures where temperature swings and humidity drive oxidation. The vinyl insulation is rated for 600V and provides adequate dielectric strength for intrusion loops, access control readers, and 12/24 VDC CCTV power runs. Panduit specs a crimp-die indent that creates gas-tight contact across the full barrel circumference, reducing the resistance spikes that cause voltage drop on long home-runs. The 1.04" length keeps the finished splice compact enough to fold into 4" boxes or tuck behind surface-mount reader back plates.

Field techs deploy butt splices like the ESV14BX-Q when extending door contact loops, repairing cut conductors in retrofit pulls, or adapting pre-terminated drop cables to in-wall home-runs. The blue insulation matches the industry convention for 16-14 AWG terminations, making post-install troubleshooting faster when a service tech opens a panel two years later. This wire range covers the 18 AWG reader data pairs commonly found in Wiegand installs and the 14 AWG power feeds used for high-current strikes and mag locks. The 25-count pack is sized for jobs that need more than a handful of field repairs but don't justify breaking open a 250-piece carton—think 8-door tenant suite or small retail intrusion system.

UL and CSA certifications mean the ESV14BX-Q clears the inspection requirements in commercial builds and municipal projects where AHJs verify listed components. Panduit's StrongHold line is positioned as the field-grade alternative to the company's industrial PanTerm series—same manufacturing standards, simplified packaging, and pricing that works when you're bidding competitive T&M service contracts. The tin-plated barrel and crimp-retention design ensure connections that survive the mechanical stress of panel door closures and the thermal cycling common in unconditioned telecom spaces.
