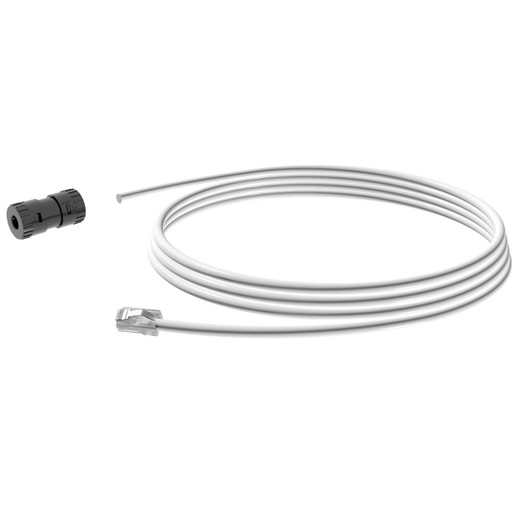

Panduit FC-ICC/P3MWH Cat 6A UTP Splice Connector
The Panduit FC-ICC/P3MWH is a white Pan-Net® Category 6A UTP splice connector rated at 118.1 inches overall length, designed for structured cabling runs that must carry full PoE++ power delivery alongside high-bandwidth data. When a conduit run needs an in-line field termination point rather than a patch panel loop, this connector provides a standards-exceeding solution without sacrificing channel performance. It is sold as a single unit (FC-ICC/P3MWH, often searched as FC ICC/P3MWH), with a carton quantity of 10 for project-scale procurement.
Key Features
- Exceeds ANSI/TIA Category 6A and ISO Class EA: Meeting the floor is table stakes — exceeding it means your channel has headroom for alien crosstalk margin in high-density pathways. For integrators installing IP security cameras or 802.11ax APs where adjacent cable bundles are common, that margin matters on long runs.
- PoE, PoE+, and PoE++ (up to 100W) support: Supporting proposed Type 3 and Type 4 PoE++ applications means this connector won't become the weak link when you're powering high-wattage PTZ cameras, 802.3bt-class access points, or powered endpoints that draw close to the 100W ceiling. Most field-splice connectors stop at PoE+ (30W) — this one doesn't.
- 118.1-inch overall length: At just under 10 feet, the cord format gives you genuine reach for inter-cabinet connections, patch field extensions, or consolidation-point wiring without custom-cut cable. Saves time on the rack side of structured cable pulls.
- UL 94 V-0 flammability rating: V-0 is the strictest UL 94 self-extinguishing classification — the material stops burning within 10 seconds and produces no flaming drips. Required in plenum and environmentally sensitive pathway installations where fire propagation through cabling is a code concern.
- ANSI/TIA-1096-A (FCC Part 68) and IEC-60603-7 compliance: Dual-standard compliance means this connector integrates cleanly into both North American and international structured cabling systems. For enterprise builds that span geographies or must satisfy multi-standard audits, one connector SKU handles both.
- RoHS compliant: Hazardous substance compliance is a baseline procurement requirement for most enterprise, government, and EU-bound installations. No additional documentation chase at project closeout.
- Pan-Net® sub-brand construction: Pan-Net® copper components are engineered to terminate consistently with Panduit Category 6A UTP copper cable — the connector and cable geometry are matched, which matters for field termination repeatability and channel test yields.
Integration & Compatibility
The FC-ICC/P3MWH is designed to terminate to Panduit Category 6A UTP copper cable for compliant channel performance per ANSI/TIA standards. When paired with matched Panduit Cat 6A components throughout the channel, the assembly is validated to exceed ANSI/TIA Cat 6A and ISO Class EA performance thresholds. Competitor part cross-reference 760234921 is documented for procurement teams working from existing BOMs.
For end-to-end PoE++ channel integrity, consult your network switch PoE budget and verify that all in-line components — patch panels, consolidation points, and field connectors including this splice — are rated for Type 3/4 power delivery. A single under-rated component in a 100W PoE++ run is enough to cause thermal compliance issues.
What's in the Box
- 1x Panduit FC-ICC/P3MWH Cat 6A UTP splice connector (white)
Frequently Asked Questions
Q: Does the FC-ICC/P3MWH support PoE++ (802.3bt) applications up to 100W?
A: Yes. The FC-ICC/P3MWH explicitly supports PoE, PoE+, and proposed Type 3 and Type 4 PoE++ applications for up to 100W per the documented standards compliance.
Q: What cable must I use to achieve the Cat 6A channel performance claim?
A: Panduit specifies that the FC-ICC/P3MWH must be properly terminated to Panduit Category 6A UTP copper cable to achieve the ANSI/TIA Category 6A and ISO Class EA performance ratings. Using non-Panduit cable may not yield a validated channel.
Q: What is the overall length of this connector cord?
A: The overall length is 118.1 inches (approximately 9.8 feet / ~3 meters).
Q: Is the FC-ICC/P3MWH RoHS compliant?
A: Yes, the FC-ICC/P3MWH is RoHS compliant, making it suitable for enterprise and EU-bound installations with hazardous substance restrictions.
Q: What is the flammability rating of the FC-ICC/P3MWH?
A: The connector carries a UL 94 V-0 flammability rating — the strictest self-extinguishing classification under UL 94, suitable for installations with fire code requirements on pathway materials.
Q: How many units come in a carton?
A: The carton quantity is 10 units. The FC-ICC/P3MWH is sold and priced per single unit (package quantity of 1).
The FC-ICC/P3MWH is one of those components that gets overlooked in a BOM until someone runs 90W PoE++ to a PTZ camera through a splice point and starts chasing intermittent power drops. Panduit built this connector to handle Type 3 and Type 4 PoE++ up to 100W — that ceiling matters when you're mixing high-draw cameras and APs on the same structured cabling infrastructure.
Technical Highlights:
- UL 94 V-0 flame rating: Self-extinguishes within 10 seconds with no flaming drips — a hard code requirement in plenum pathways and many commercial riser installations. Not all field connectors carry this rating.
- ANSI/TIA Cat 6A + ISO Class EA exceedance: Exceeding the standard (not just meeting it) gives alien crosstalk margin in high-density bundles — directly relevant in IDF closets where 48+ cable runs travel in parallel.
- 118.1-inch cord length: Close to 10 feet of factory-terminated length removes the field-crimping variable from the channel, improving test-pass rates on the first certification sweep.
Deployment Considerations:
- Performance claims are validated when terminated to Panduit Category 6A UTP copper cable specifically — mixing cable brands in a compliant channel requires your own certification sweep to confirm margin.
- Carton quantity is 10 but the unit is priced and sold individually (package qty 1) — order to your actual run count to avoid over-procurement on small patch jobs.
The FC-ICC/P3MWH is the right call for commercial structured cabling deployments — particularly security and AV infrastructure where PoE++ endpoints are in the mix and fire-code compliance on pathway materials is non-negotiable.
