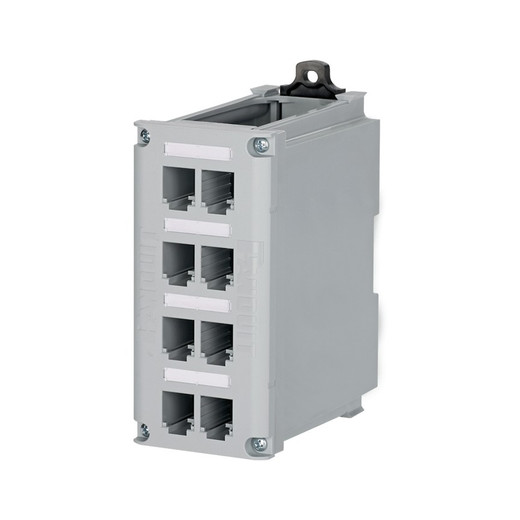

Panduit CDPP8RG-S 8-Port DIN-Rail Patch Panel

Panduit CDPP8RG-S IndustrialNet 8-Port Shielded DIN-Rail Patch Panel

The Panduit CDPP8RG-S delivers modular copper connectivity for industrial control cabinets, MDF/IDF enclosures, and factory-floor networking applications where space is limited and DIN-rail mounting is the standard. This 8-port shielded patch panel accepts any single-width Mini-Com module, letting you mix RJ45, fiber, audio, or A/V connections in a single compact assembly that mounts directly to standard 35mm DIN rail. High-impact polycarbonate construction handles the vibration, temperature swings, and physical abuse common in manufacturing, process-control, and building-automation environments, while tool-free snap-on rail clips and included port labels streamline deployment in multi-cabinet installations.

Key Features

• 8-port modular patch panel compatible with all single-width Mini-Com modules (copper, fiber, A/V, blank)
• Shielded design maintains electrical continuity when used with shielded Mini-Com jacks and cables
• Standard 35mm DIN-rail mount with adjustable snap-lock fasteners for secure installation
• High-impact polycarbonate housing resists cracking, UV degradation, and mechanical shock
• Integrated port numbering and included Ultimate ID labels with clear covers for professional labeling
• cULus listed to UL1863, IEC 60715, DIN EN 60715, DIN EN 50022 compliant, RoHS certified
• Compact 6.65" H × 2.65" W footprint fits tight enclosures and dense rack layouts
• Includes mounting screws for optional panel or equipment-bay installation

Industrial and commercial network deployments increasingly rely on DIN-rail infrastructure to consolidate power distribution, control electronics, and data connectivity in a single standardized form factor. The CDPP8RG-S fits this model by providing structured copper patching in the same mounting footprint as PLCs, motor controllers, and power supplies. Because it accepts any Mini-Com module, you can deploy Cat6A jacks for IP cameras and access control, LC duplex fiber adapters for building backbone links, and RCA or BNC modules for legacy analog video—all in a single 8-port panel that occupies less than 7 inches of vertical rail space. The shielded metal frame grounds to the DIN rail when installed in a grounded enclosure, maintaining end-to-end shield continuity critical for EMI rejection in high-noise industrial environments.

Installation is tool-free for rail mounting: adjustable snap-lock fasteners on the rear of the panel grip the 35mm rail from both sides, then lock into place to prevent vertical or lateral movement under cable pull or vibration. For applications where DIN rail isn't available, four mounting-screw holes in the housing let you attach the panel directly to equipment bays, wall plates, or custom brackets. Each port is numbered 1–8 in molded numerals, and the panel ships with a set of Panduit Ultimate ID adhesive labels and clear snap-on covers that protect the label from abrasion and solvents while keeping port assignments legible after years of handling. This labeling system integrates with Panduit's LS8E and other thermal-transfer printers, so you can pre-print labels with IP addresses, VLAN tags, or device names before installation, then snap the covers in place for a finished, professional appearance that holds up in dusty or chemical-exposure environments.

The polycarbonate housing meets IEC 60068 environmental testing for temperature cycling, humidity, and mechanical shock, making the CDPP8RG-S suitable for installations in uncontrolled-temperature enclosures, outdoor-rated cabinets with NEMA or IP-rated sealing, and mobile platforms like transport vehicles or temporary command posts. Shielded construction is essential when patching surveillance cameras, access-control door strikes, or PoE lighting near variable-frequency drives, motor starters, or high-current switching gear—any of which can inject RF noise onto unshielded twisted-pair cabling and cause packet loss or link flapping. By grounding the panel's metal frame to the DIN rail and using shielded Mini-Com jacks with bonded drain wires, you create a continuous low-impedance path to earth that diverts induced currents away from the signal pairs, preserving gigabit and multi-gig link speeds even in electrically hostile environments where unshielded copper would fail intermittently.

Compliance with DIN EN 50022, IEC 60715, and BS 5584 ensures the panel will mount securely to any rail manufactured to those specifications, whether you're working with Phoenix Contact, Weidmüller, or generic DIN rail stock. The cULus listing to UL1863 (communications circuit accessories) and RoHS certification confirm the assembly meets North American safety standards and European restrictions on lead, mercury, and other hazardous substances, simplifying specification for projects with multi-jurisdictional compliance requirements or corporate environmental mandates. This panel is the structured-cabling backbone for distributed control systems, IP-based video surveillance in manufacturing plants, and building-automation networks where traditional wall-mount or rack-mount patch panels won't fit the installation footprint or can't survive the operating environment.
