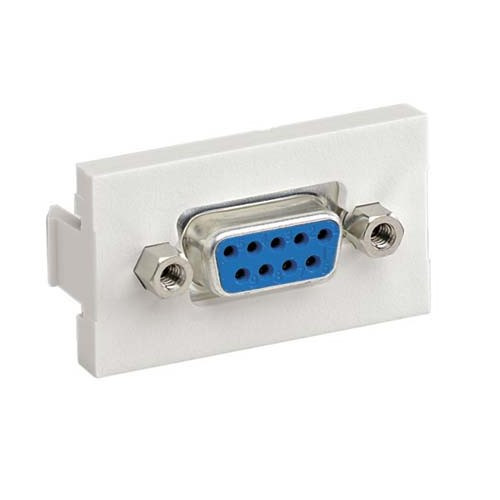

Panduit IAPHD9CWH 9-Pin D-Sub Female/Female Coupler Insert for IndustrialNet Ports

Overview

The Panduit IAPHD9CWH is a 9-pin female/female D-subminiature coupler in a 1/3-size insert format, purpose-built for use with Panduit's IndustrialNet™ Data Access Port system. If you're building out a structured cabling infrastructure in an industrial or commercial environment and need a pass-through D-sub connection at the faceplate level — for serial control, legacy RS-232 signaling, or serial-over-IP bridging devices — this insert drops cleanly into the IndustrialNet port framework without requiring a dedicated panel cutout or standalone connector housing. It ships individually (package quantity of 1) and is available in carton quantities of 10 for larger deployments.

At 1.56 in. wide × 0.89 in. tall (39.7 mm × 22.7 mm), the IAPHD9CWH fits the standard 1/3-size insert footprint used across the Panduit connectivity line, keeping your port layout consistent whether you're mixing Ethernet, USB, HDMI, or serial inserts on a single faceplate.

Key Features

• 9-Pin Female/Female D-Sub Pass-Through: Connects two male DB9 cable ends back-to-back at the insert point — useful for RS-232 serial runs where you need an in-wall break point without re-pinning or adapting. No signal conversion, no active components, just a clean mechanical junction.
• 1/3-Size Insert Form Factor (1.56
