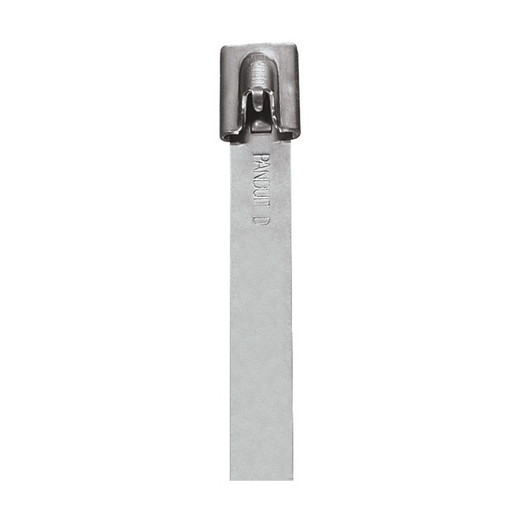

Panduit IMLT25S-C6L StrongHold 316L Stainless Steel Cable Tie

The Panduit IMLT25S-C6L is a 5-inch 316L stainless steel cable tie engineered for installations where standard nylon or 304-grade stainless won't survive. 316L's molybdenum content delivers superior resistance to chloride corrosion, making this tie the correct choice for coastal security deployments, marine environments, chemical processing facilities, and food-grade installations where washdown chemicals attack lesser materials. UL 62275 Type 2 listed and compatible with Panduit's GS4MT-E, HTMT, PPTMT, and ST2MT installation tools, the IMLT25S-C6L combines regulatory compliance with field-proven durability. Packaged 100 per box, this is the tie you spec when failure isn't an option.

Key Features

316L stainless steel construction with 2-3% molybdenum for chloride and acid resistance in marine, chemical, and high-humidity environments

5-inch (127mm) length × 0.010-inch (0.25mm) thickness handles bundle diameters up to approximately 1.25 inches

UL 62275 Type 2 listed (File E56854) for compliance in plenum, riser, and industrial control panel applications

StrongHold I-series ball-lock design prevents slippage under vibration and thermal cycling

Compatible with Panduit GS4MT-E, HTMT, PPTMT, and ST2MT tensioning tools for consistent, repeatable 110-120 lbf installation torque

100-pack quantity optimized for job-site inventory without overbuying on specialty ties

Metallic finish maintains professional appearance in exposed architectural installations

Standard 304 stainless cable ties pit and corrode in salt spray, pool equipment rooms, wastewater lift stations, and anywhere chlorides concentrate. The IMLT25S-C6L's 316L alloy substitutes molybdenum for carbon, creating a passive chromium-oxide layer that self-heals when scratched and resists pitting corrosion down to the grain structure. This matters on outdoor IP cameras in coastal zones, access control strikes in car washes, and any cable run within 10 miles of saltwater. You'll also spec 316L for food processing plants where acidic cleaners (phosphoric, nitric) are used daily, pharmaceutical clean rooms with peroxide vapors, and petrochemical facilities where hydrogen sulfide is present. The material cost premium over 304 stainless pays back the first time you avoid a service call to replace corroded ties on a camera pole.

UL 62275 Type 2 certification means this tie has passed 1,000-hour salt-spray testing, dielectric strength verification, and flammability requirements for use in air-handling spaces and electrical enclosures. The ball-lock head is cold-formed from the same 316L strip as the strap, eliminating the galvanic corrosion risk you get with bi-metal designs. Panduit's I-series geometry provides 0.8 square inches of bearing surface to distribute load and prevent insulation damage on jacketed cables. When you pair the IMLT25S-C6L with Panduit's pneumatic GS4MT-E tool, you achieve ISO-9001-documentable tension consistency across thousands of terminations—critical for military, airport, and critical infrastructure projects where every tie is traced in the O&M manual. The 5-inch length is the sweet spot for securing 4-6 Cat6 cables, three RG6 coax runs, or a fiber breakout whip to a ladder rack in a coastal datacenter where you can't afford to return in six months because nylon ties photodegraded or 304 ties rusted through.

Choose the IMLT25S-C6L when the installation spec calls out AISI 316L by material grade, when the site is within ASTM B117 severe marine exposure zones (coastal, industrial, or pool environments), or when you're securing cables on equipment that operates above 200°F where nylon softens. This is the tie for refinery perimeter cameras, marina gate operators, aquatic center AV over IP runs, and any pharma or food-grade facility where NSF or 3-A Sanitary Standards apply. The 100-count pack matches the scale of a typical 8-16 camera outdoor project without leaving you with 400 unused ties from a bulk carton.
