Panduit IMLT152H-L6L 20.5" SS Heavy-Duty Cable Tie

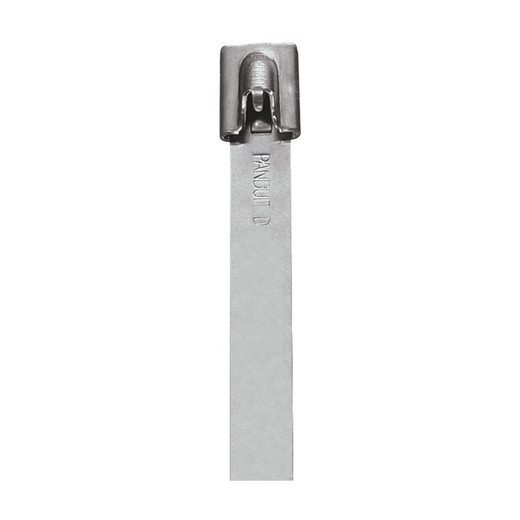

Panduit IMLT152H-L6L StrongHold™ Heavy-Duty Stainless Steel Cable Tie

The Panduit IMLT152H-L6L is a 20.5-inch heavy-duty stainless steel cable tie engineered for extreme outdoor, marine, and corrosive environments where standard nylon ties fail. Built from Type 316L stainless steel—the same marine-grade alloy used in offshore drilling platforms and chemical processing—this tie delivers superior resistance to salt spray, UV degradation, temperature extremes, and industrial solvents. Security integrators spec this tie for permanent outdoor camera mounts, coastal surveillance arrays, wastewater treatment facilities, parking structure conduit runs, and any installation where bundle integrity over decades matters more than upfront cost. The 0.010" ball-lock thickness and UL-listed design (file E56854) meet NEC 110.3(B) compliance requirements for critical infrastructure and inspected government projects. Ships in contractor packs of 50 ties, with 250-piece cartons available for large deployments.

Key Features

• Type 316L stainless steel construction resists salt spray, acids, alkalis, and sustained UV exposure without cracking or embrittlement
• 20.5-inch working length accommodates large cable bundles up to 6.5" diameter—ideal for multi-camera home-runs and fiber trunk aggregation
• 0.010" ball-lock thickness provides permanent hold strength while allowing tool-free hand installation or precision tensioning with Panduit GS4MT-E, PPTMT, ST2MT, HTMT, or PBTMT tools
• UL-listed file E56854 meets National Electrical Code Article 300 requirements for metallic cable ties in commercial and industrial occupancies
• Operating temperature range -80°F to +1000°F supports both cryogenic datacenter hot-aisle exhaust routing and boiler room surveillance camera feeds
• Non-magnetic austenitic stainless formulation prevents interference with card readers, magnetic locks, and RF equipment in access control vaults

316L stainless steel delivers measurably better corrosion resistance than the 304-grade ties common in big-box hardware stores. The "L" designation indicates ultra-low carbon content (0.03% maximum versus 0.08% in standard 316), which eliminates carbide precipitation during welding or prolonged heat exposure—critical when ties are installed near building exhaust vents, HVAC condensers, or sun-baked parapet mounts where surface temperatures routinely exceed 150°F. Independent ASTM B117 salt-spray testing shows 316L maintains structural integrity beyond 3,000 hours of continuous exposure, roughly equivalent to 15 years of coastal atmospheric conditions. This makes the IMLT152H-L6L the default choice for marina camera arrays, offshore platform perimeter detection, bridge underside PTZ installations, and any project within two miles of saltwater. The metallic finish also provides inherent UV stability—unlike black nylon ties that turn brittle and snap after 18-24 months of direct sunlight, stainless ties show no measurable strength loss even after a decade of Arizona desert exposure.

The 20.5-inch working length addresses a common installation pain point: standard 8" and 14" ties force you to daisy-chain multiple ties on large bundles, creating stress concentrations and potential failure points. A single IMLT152H-L6L secures bundles up to 6.5" in diameter—enough for twelve Cat6A cables plus two fiber trunk assemblies in a single wrap, or a 4" rigid conduit strapped to structural steel every four feet per NEC 358.30(A). The ball-lock mechanism is bidirectional, allowing you to thread from either end and pull tight without specialized tools for bundles under 50 lbs tension. For critical mounts requiring documented tension values—such as seismic-braced overhead cable tray or wind-rated rooftop camera poles—the tie accepts Panduit's full range of pneumatic and battery-powered tensioning tools (GS4MT-E, PPTMT, ST2MT, HTMT, PBTMT). These tools apply calibrated tension and auto-cutoff at the optimal load, preventing both undertightening (which allows bundle sag and chafing) and overtightening (which crushes cable jackets and degrades shielding effectiveness). For AV integrators running plenum-rated fiber backbones in return-air spaces, this controlled tensioning ensures you meet the 25-pound max pull tension specified in TIA-568 without guesswork.

UL listing under file E56854 qualifies this tie for use in NEC Article 300.22(C) plenum spaces, Article 725 Class 2 and Class 3 circuits, and Article 770 optical fiber installations. Inspectors in major metros (NYC, Chicago, LA County) routinely red-tag projects using unmarked or non-listed cable ties in accessible ceilings, return plenums, or riser shafts—the IMLT152H-L6L's UL recognition eliminates that risk. The stainless composition also satisfies NFPA 70E arc-flash boundary requirements for ties used within 42" of energized 480V three-phase panels (common in datacenter PDU deployments), and the non-combustible rating allows use in wildfire-hardening projects under California's WUI building codes. Package quantity of 50 ties balances jobsite logistics—enough for a typical 12-camera outdoor array or single-rack structured cabling cleanup, without the waste of bulk 1,000-piece contractor spools on small retrofit projects.
