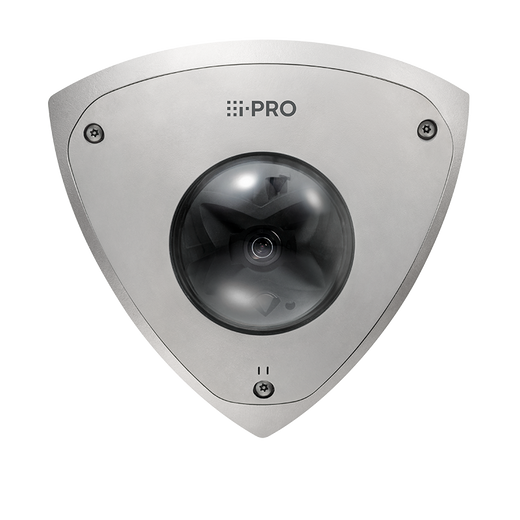

i-PRO WV-X25580-F2LN2 5MP AI IR Vandal Corner Camera

i-PRO WV-X25580-F2LN2 5MP AI IR Vandal Corner Camera

The i-PRO WV-X25580-F2LN2 is purpose-built for perimeter security and corner monitoring in high-risk outdoor environments. Its compact corner form factor delivers 131° horizontal field of view from a 5MP sensor, solving real deployment challenges in facilities with complex architectural geometry where standard domes or turrets don't fit. This is not a general-purpose camera—it targets organizations that cannot compromise on durability, data security, or intelligence processing at the edge.

Key Features

• 5MP sensor with 131° horizontal FOV: Captures corner-to-corner coverage in a single frame, reducing the number of cameras needed to monitor alcoves, building edges, and confined spaces—a measurable cost savings across large perimeter deployments.
• IK11+ impact resistance (70J): Withstands deliberate strikes and accidental impact far exceeding standard cameras. In vandalism-prone or high-risk facilities, this dramatically extends service life and reduces replacement frequency—a primary total cost of ownership (TCO) driver.
• IP66, IP67, and IP69 environmental sealing: IP66 handles direct rain and dust; IP67 tolerates temporary submersion; IP69 resists high-pressure water jets. Critical for exterior perimeter, carwash facilities, and industrial zones where moisture ingress is inevitable.
• 940nm invisible IR with long-range night vision: Infrared LEDs operate at 940nm (invisible to the human eye), preventing detection by bad actors while delivering full night-vision capability. Unlike visible red or white LEDs, 940nm doesn't advertise camera presence.
• Up to 3 concurrent edge AI analytics: On-camera processing eliminates reliance on external analytics servers. Deploy person detection, intrusion detection, and crowd monitoring simultaneously without network or compute latency—critical for remote locations or air-gapped installations.
• FIPS 140-2 Level 3 certified secure element (EdgeLock® SE050F NXP®): Hardware-grade encryption and tamper detection ensure compliance with government, banking, and critical infrastructure standards. The secure element handles key management and cryptographic operations without exposing sensitive material to firmware or software layers.
• Removable built-in microphone: Synchronized audio evidence without requiring separate audio devices. Removal preserves privacy in sensitive installations while maintaining the option to enable audio when deployment rules permit.

Why This Model Matters

Corner cameras solve a specific problem: traditional dome and turret designs mount on flat surfaces and waste coverage at edges and corners. The WV-X25580-F2LN2's compact corner housing fits flush into building alcoves and perimeter junctions, delivering complete coverage without dead zones. This form factor advantage is architectural, not marketing—it changes camera count and therefore infrastructure cost.

The combination of IK11+ vandal resistance and FIPS 140-2 Level 3 certification is rare in the market. Most competitive solutions offer one or the other. Here, both are native. For remote or openly accessible installations (transportation hubs, outdoor checkpoints, perimeter fencing), this means fewer replacement cycles and verifiable data integrity—both reduce long-term deployment cost and operational friction.

Edge AI processing is not optional in environments with limited backhaul bandwidth or where centralized analytics represent a single point of failure. The WV-X25580-F2LN2 processes threat detection locally, queuing alerts and metadata without requiring constant connectivity to a central server. If network drops, the camera continues to detect and log events to local storage.

Typical Deployments

• Perimeter security monitoring at critical infrastructure, data centers, and secure compounds
• Corner and alcove coverage at government and law enforcement facilities
• Outdoor industrial and manufacturing environments where dust and water exposure is routine
• Vandalism-prone public spaces and transportation nodes
• Facilities requiring FIPS-certified encryption and tamper-evident logging for compliance audits

Integration Considerations

The WV-X25580-F2LN2 integrates with i-PRO IP camera systems and ONVIF-compliant video management platforms. Edge AI applications are provisioned through standard ONVIF interfaces, simplifying deployment in heterogeneous environments. PoE power delivery and Ethernet connectivity enable deployment over existing network infrastructure. Consult your NVR or VMS administrator for analytics profile compatibility and bandwidth planning, especially when deploying multiple analytics per camera.

Frequently Asked Questions

Q: What is the maximum IR range on the WV-X25580-F2LN2?

A: The 940nm invisible IR delivers long-range night vision capability. Exact range depends on lens focal length and scene reflectivity; consult the manufacturer datasheet for distance specifications under standard lighting conditions.

Q: Is the WV-X25580-F2LN2 FIPS 140-2 compliant?

A: Yes. The camera integrates the EdgeLock® SE050F NXP® secure element, which is FIPS 140-2 Level 3 certified. This ensures hardware-grade encryption and tamper detection for government and critical infrastructure deployments.

Q: Can I disable the built-in microphone for privacy?

A: Yes. The microphone is removable, allowing you to maintain audio capability when rules permit while preserving privacy in sensitive areas.

Q: Does the WV-X25580-F2LN2 support concurrent edge AI applications?

A: Yes. The camera supports up to three concurrent edge AI analytics—person detection, intrusion detection, and crowd monitoring can run simultaneously without performance degradation.

Q: What power input does this camera require?

A: The WV-X25580-F2LN2 is PoE-powered. Exact wattage requirements and PoE class specifications are in the manufacturer datasheet.

Q: Is the WV-X25580-F2LN2 suitable for submersion or high-pressure water environments?

A: The camera carries IP66 (dust and spray), IP67 (temporary submersion), and IP69 (high-pressure jets) ratings. IP69 is required for carwash or high-pressure spray environments; IP67 suffices for temporary water exposure.

Marty Allison

The WV-X25580-F2LN2 targets organizations that cannot afford camera replacement cycles in hostile environments. The pairing of IK11+ (70J impact resistance) and FIPS 140-2 Level 3 certification is uncommon—most competitors offer one or the other. This combination has real deployment teeth: it means fewer replacements due to vandalism, and verifiable data integrity for compliance audits. The corner form factor is often overlooked, but it solves a genuine architectural problem—perimeter junctions and alcoves where standard domes waste coverage.

Technical Highlights:

• 131° horizontal FOV + corner housing: Covers building corners and alcoves in a single frame, reducing camera count and infrastructure complexity compared to multiple standard cameras trying to achieve the same coverage.
• IK11+ (70J) impact resistance: Withstands intentional strikes and accidental collision without camera failure. In outdoor or publicly accessible sites, this directly translates to fewer replacement service calls and lower 3–5 year TCO.
• EdgeLock® SE050F (FIPS 140-2 Level 3): Hardware-grade encryption and tamper detection ensure cryptographic keys never expose to firmware or software vulnerabilities. Mandatory for government and banking deployments; eliminates compliance audit friction.
• 3 concurrent edge AI analytics: Person detection, intrusion, and crowd monitoring run simultaneously on-device. No external server dependency means the camera continues alerting even if network drops or VMS becomes unavailable—critical for remote perimeter sites.
• 940nm invisible IR: Zero visible LED glow—bad actors cannot detect camera presence by eye or low-light photography. Critical advantage in openly accessible facilities where visible deterrent is a liability.

Deployment Considerations:

• Corner form factor is not universally applicable—verify architectural fit before ordering. Standard wall or ceiling mounts will not work; this is a purpose-built corner solution.
• Edge AI processing is powerful but adds operational burden: analytics profiles must be provisioned and tuned per deployment. Plan for initial configuration and ongoing parameter adjustment if threat patterns change.
• FIPS 140-2 certification is valuable only if your VMS and NVR also support secure key management and logging. A certified camera paired with non-certified backend infrastructure leaves compliance gaps.

The WV-X25580-F2LN2 is a premium positioning for perimeter security at critical infrastructure, government installations, and vandalism-prone public spaces where both durability and data integrity are non-negotiable. Do not deploy this camera in controlled indoor environments or low-risk sites—the cost premium is not justified without hostile conditions or compliance mandates.
