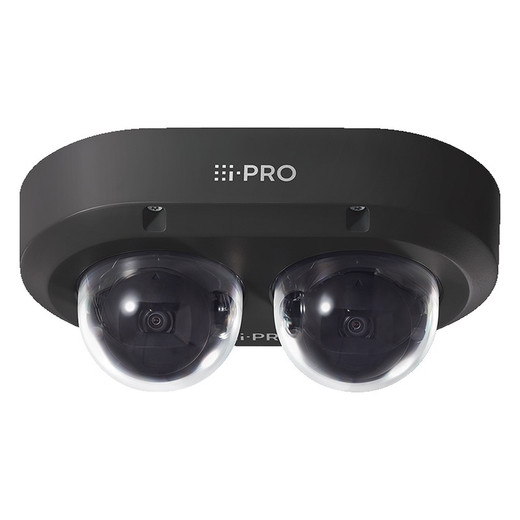

i-PRO WV-U85402-V2L1 8MP Dual Dome Outdoor AI IP Camera

i-PRO WV-U85402-V2L1 8MP Dual Dome Outdoor AI IP Camera

The i-PRO WV-U85402-V2L1 is a professional outdoor surveillance camera built around two independent 1/2.7-inch CMOS sensors, each delivering 4MP for a combined 8MP output. This dual-dome architecture is engineered for high-risk outdoor environments where simultaneous wide-angle detection and telephoto identification matter — think perimeter fences where you need both "did something cross the line" and "can I see their face" in the same frame time.

Key Features

• Dual 4MP Sensors with Independent Pan/Tilt/Yaw: Each dome operates independently — pan ±50° to +230°, tilt +10° to +105°, yaw ±90° — so you get simultaneous coverage angles without cropping a single wide shot to chase an object. Dual domes mean confined spaces (loading docks, narrow corridors, gate installations) get both coverage and identification range without a second camera wire.
• 2.5x Motorized Zoom (2.9–7.3mm): Zoom range covers 43°–100° horizontal field of view (wide mode) down to 24°–56° (telephoto). Paired with 10.5x digital zoom, tele mode reaches detection distances of 447.8 feet — meaningful for perimeter work where you need legible ID at distance. Horizontal FOV spans wide enough for general area coverage; narrow enough in tele that you're not wasting pixels on sky.
• 40-Meter IR LED Array (Switchable): IR reaches approximately 131 feet at 30 IRE with user-selectable High/Middle/Low/Off modes. Full-color surveillance operates down to 0.21 lux; monochrome mode at 0 lux with IR active. This matters: switchable IR saves power during twilight and prevents over-illumination that washes out color detail in partially lit scenes. You're not paying for 40-meter range you don't need at midnight in a lit parking lot.
• 108 dB Dynamic Range with Super Dynamic Processing: Handles high-contrast outdoor scenes (bright sky, dark foreground) without clipping shadows or blowing out highlights. Adaptive black stretch and intelligent backlight compensation mean license plates in shadow or faces backlit by storefront windows stay readable. This is where outdoor surveillance either works or becomes a filing cabinet of unusable footage.
• IP67 / NEMA 4X / IK10 Environmental Protection: IP67 means full dust seal and submersion rating to 1 meter for 30 minutes — relevant if your dome sits on a pole that's downwind of a washdown hose or floods seasonally. IK10 resists 20 J impacts (equivalent to a 5kg mass dropped from 40cm) without optical misalignment. Wind rating to 40 m/s (89 mph) and operating range from –40°C to +60°C with anti-condensation system keeps the optics clear in thermal shock cycles common in outdoor temperate climates. Field experience: this is the spec that actually prevents service calls after winter temperature swings.
• PoE+ Powered at 18.9W (Class 4): Single RJ-45 runs both power and data. Low wattage means standard 802.3at PoE+ switches can supply 10–15 of these cameras per 90W port without daisy-chaining or splitter complexity. microSD card slot (up to 512GB) provides failsafe edge recording if your NVR connection drops.
• H.265 / H.264 / MJPEG Compression at 30 fps: H.265 cuts bitrate roughly 40–50% versus H.264 for equivalent quality — directly impacts storage costs and network bandwidth. At 8MP, that's the difference between a 24TB NVR holding 30 days of 24/7 recording or 45 days. MJPEG option available for legacy VMS systems or when you need per-frame snapshot flexibility.
• Video Motion Detection, Scene Change Detection, Audio Detection, and Privacy Masking: 4 motion zones and 8 privacy mask zones reduce false alerts from waving branches or moving shadows. Audio detection flags unexpected sound spikes. Event-driven recording and HTTP/email alarm actions integrate with most NVR platforms and SIEM workflows without custom scripting.
• FIPS 140-2 Level 3, HTTPS, Device Certificates, IEEE 802.1X: Meets federal security compliance for healthcare, government, and finance deployments. Pre-installed device certificates and signed firmware prevent man-in-the-middle interception or unauthorized image access. 802.1X port authentication enforces network segmentation so a compromised camera can't pivot laterally.
• Ambarella CV22 Processor: Real-time fog compensation, digital noise reduction (0–255 intensity levels), and color/BW auto-switching based on integrated IR sensor performance. This processor handles the dual-stream encode overhead — both domes encoding simultaneously at 30 fps without CPU bottleneck.

Deployment Context

The WV-U85402-V2L1 excels in perimeter security (fence lines, parking lot entries, loading dock overheads), mixed-environment deployments (retail loading areas, warehouse edges), and confined-space detection/ID scenarios (gate booths, secure corridor exits). Pole-mount and wall-mount installations on building facades, utility structures, or freestanding masts suit the IP67 rating and independent dome control. The dual-dome design solves a real problem: single-sensor PTZ cameras require continuous pan-follow to maintain simultaneous detection and identification coverage, which multiplies NVR stream processing and burns motor hours. This camera's independent domes run statically or reposition only when needed.

Integration & Compatibility

Standards-based ONVIF support ensures compatibility with network video recorders from Milestone, Genetec, Hanwha SmartVMS, and other major platforms. Audio input/output with G.726, G.711, and AAC-LC compression enable two-way intercom scenarios. Alarms export via HTTP callbacks or SMTP email, integrating with ticketing systems or custom alert logic without middleware.

Frequently Asked Questions

Q: What's the maximum face identification distance on the WV-U85402-V2L1?

A: Wide mode reaches 14.8 feet; telephoto mode reaches 44.8 feet. These are theoretical maximums under optimal lighting. In practice, outdoor IR and variable backlight conditions may reduce these ranges by 20–30%.

Q: Does the WV-U85402-V2L1 support ONVIF?

A: Yes. ONVIF Profile S and T are supported, enabling integration with standard VMS platforms and NVR systems without proprietary plugins.

Q: Can I record to the camera's microSD slot if my NVR goes offline?

A: Yes. microSD card slot supports cards up to 512GB and provides edge-based failsafe recording. This is useful for critical perimeters where network outages would otherwise create gaps.

Q: What is the power draw of the WV-U85402-V2L1?

A: Maximum 18.9W at 54V DC via PoE+. This low draw means standard 802.3at PoE+ switches can support multiple cameras without dedicated power supplies or midspan injectors.

Q: Is the WV-U85402-V2L1 compliant with FIPS or NDAA?

A: The WV-U85402-V2L1 carries FIPS 140-2 Level 3 certification for cryptographic module validation. NDAA Section 889 compliance should be verified with your integrator or i-PRO directly, as it depends on your specific deployment context and procurement authority.

Q: What compression formats does the WV-U85402-V2L1 support?

A: H.265, H.264, and MJPEG at 30 fps. H.265 reduces storage costs by roughly 40–50% versus H.264 for equivalent quality — significant for 24/7 multi-camera NVR deployments.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-U85402-V2L1 solves a real operational problem that single-sensor PTZ cameras create: continuous motor movement to chase objects while maintaining identification-range coverage burns duty cycles and multiplies stream processing load on your NVR. Dual independent 4MP domes side-step that entirely. Each runs its own pan-tilt-yaw independently, so wide-angle detection and telephoto identification happen simultaneously without cropping or switching streams.

Technical Highlights:

• 108 dB Dynamic Range with Super Dynamic Processing: Outdoor scenes with bright sky and dark foreground (the license plate problem) stay readable in both regions without HDR latency or per-frame processing overhead. Adaptive black stretch and backlight compensation work in real time at 30 fps.
• H.265 Compression at 30 fps (Dual Stream): Two domes encoding simultaneously at 4MP/30fps each — that's 8MP aggregate bitrate. H.265 cuts that load roughly 40–50% versus H.264. Directly reduces NVR storage footprint and switch port utilization for 24/7 recording.
• 40-Meter Switchable IR (High/Middle/Low/Off): Switchable modes prevent IR wash-out during twilight when ambient + IR combine to overexpose color detail. At 131 feet reach, you cover perimeter range without spilling light into adjacent tenant spaces or creating glare in nearby windows.
• IP67 + IK10 + –40°C to +60°C Operating Range: Submersion-rated and impact-resistant. Anti-condensation optics prevent fogging in freeze-thaw cycles. This is the spec that separates "works in November" from "works in February."
• PoE+ at 18.9W (Class 4): Dual domes + dual 30fps encode = low power budget. Standard 802.3at PoE+ switches can feed 10–15 units per 90W port without midspan or splitter complexity.

Deployment Considerations:

• Dual domes add physical width (check mounting bracket compatibility with existing pole or wall footprints). For retrofit into single-sensor shrouds, you'll need a new bracket.
• Independent pan-tilt-yaw per dome means 12 parameters to configure (or let run on preset idle patterns). Your VMS must support ONVIF PTZ profile, or you manage dome positioning via API callback — not firmware limitation, just workflow reality.
• IR switchable mode is a feature, not a bug, but it requires someone to think about twilight operation. Set IR to "Low" during dusk/dawn in white-light areas; "High" on dark perimeters. Default "Auto" works, but optimized IR reduces storage bandwidth by avoiding unnecessary high-intensity illumination.

Ideal for perimeter fence lines, loading dock entries, and warehouse edge detection where you can't afford single-sensor PTZ motor churn or can't justify two separate cameras. Works equally well on building facades, utility masts, or pole-mount structures where IP67 and independent dome placement solve real space constraints.

Key Specifications:
Field of View: 43-100° (H), 24-56° (V)
Color: White
