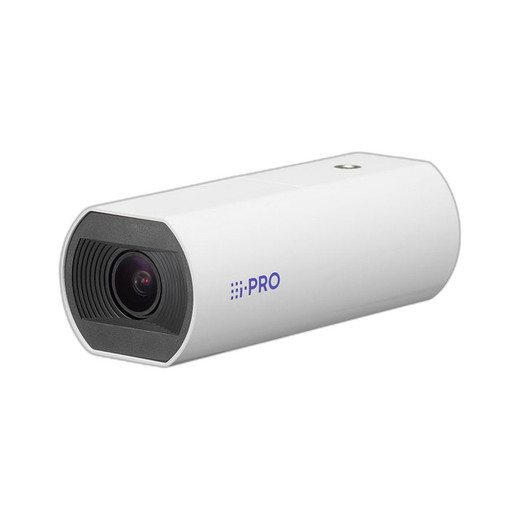

i-PRO WV-U11301-V3 2MP Indoor Box Camera with 3.2x Zoom

i-PRO WV-U11301-V3 2MP Indoor Box Camera with 3.2x Zoom

The i-PRO WV-U11301-V3 is a compact 2MP indoor box camera engineered for fixed surveillance installations requiring reliable image capture, integrated audio, and enterprise-grade security. Built on a 1/2.8-inch CMOS sensor with 3.2x optical zoom, this camera delivers flexible framing without external lens changes. Purpose-built for access control monitoring, lobby surveillance, and indoor perimeter applications where space is constrained and cybersecurity compliance is mandatory.

Key Features

• 2MP Resolution with 3.2x Optical Zoom: Capture detailed video with 3.2x optical zoom, enabling both wide-area coverage and targeted detail extraction from a single fixed position.
• Exceptional Low-Light Performance: Minimum illumination as low as 0.004 lx (monochrome) and 0.05 lx (color) with integrated IR support up to 2.0m, enabling surveillance in dimly lit stairwells and corridors.
• 120 dB Dynamic Range with Super Dynamic: Adjustable Super Dynamic technology (0–31) preserves detail in both bright and shadow regions simultaneously for mixed-lighting scenes.
• Intelligent Exposure Controls: Auto exposure mode, adaptive black stretch, back light and high light compensation, and fog compensation automatically adapt to challenging lighting conditions.
• Day/Night Capability: Built-in IR illumination with day/night switching for continuous surveillance across 24-hour cycles.
• Audio Integration: Integrated microphone and speaker support for two-way communication in access control and lobby environments.
• Flexible Video Compression: Support for H.265, H.264, and MJPEG codecs optimizes bandwidth and storage efficiency.

Technical Highlights

• Connectivity & Power: Ethernet with PoE Class 0 power delivery simplifies installation—single cable for power and data.
• Storage & Expansion: microSD card slot enables local backup and extended recording capability.
• Cybersecurity Framework: Signed firmware, secure boot, and HTTPS encryption protect against unauthorized access and tampering.
• Standards Compliance: ONVIF compatibility ensures interoperability with third-party management platforms and VMS software.
• Operating System: Android-based architecture supports advanced video analytics and future firmware enhancements.

Ideal Applications

The WV-U11301-V3 excels in confined indoor spaces including:

• Access control entry points and turnstiles
• Office building lobbies and reception areas
• Stairwells and emergency exit monitoring
• Retail checkout and point-of-sale environments
• Warehouse loading areas with variable lighting

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-U11301-V3 targets mid-range fixed surveillance where optical zoom flexibility and low-light sensitivity matter. The 3.2x zoom eliminates focal-length guesswork during installation, while 0.004 lx monochrome performance handles near-darkness without sacrificing frame rate. Super Dynamic's 120 dB range addresses the core challenge of mixed-lighting scenes—critical in lobbies where daylit windows coexist with shadowed corners.

H.265 compression reduces bandwidth by 50% versus H.264, directly lowering storage costs in 24/7 deployments. PoE Class 0 (3.84W budget) is tight but sufficient for a box form factor without IR spikes. The signed firmware and secure boot mitigate supply-chain vulnerabilities, essential for organizations under compliance pressure.

ONVIF integration sidesteps vendor lock-in, allowing migration to third-party VMS platforms if requirements shift. Android OS hints at future OTA feature additions without hardware refresh cycles.
