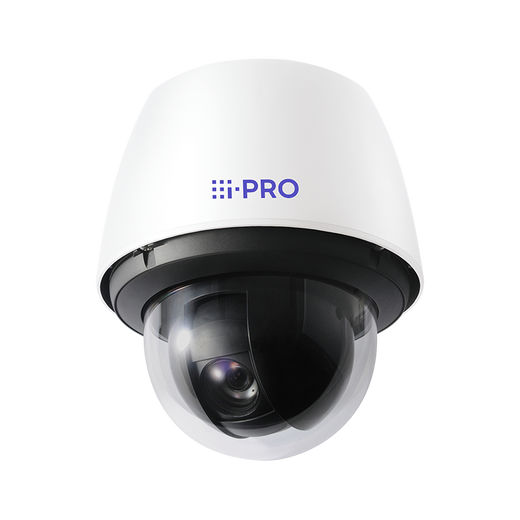

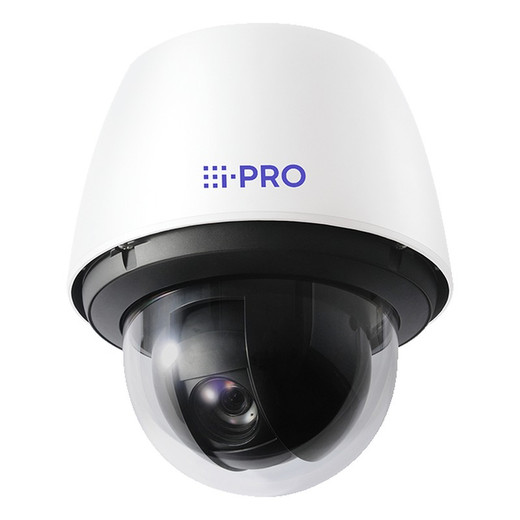

i-PRO WV-S65340-Z4K 2MP Outdoor AI PTZ Dome Network IP Camera

i-PRO WV-S65340-Z4K 2MP Outdoor AI PTZ Dome Camera

The i-PRO WV-S65340-Z4K is a 2MP outdoor AI-enabled PTZ dome network camera engineered for wide-area surveillance and intelligent monitoring in demanding perimeter, parking lot, and facility protection applications. This motorized zoom camera delivers exceptional optical performance with 40× optical zoom, supplemented by 60× extra zoom and 640× digital zoom, enabling operators to capture actionable detail across expansive coverage areas from a single fixed mount location. Integrated AI analytics support people detection, vehicle detection, face detection, and occupancy detection—enabling rule-based alerting and forensic video search without external analytics servers.

Key Features

• 40× Optical Zoom with Extended Range — Motorized 4.25–170 mm zoom lens delivering 40× optical magnification, supplemented by 60× extra zoom and 640× digital zoom for flexible framing across large outdoor spaces
• 2MP Resolution with Exceptional Dynamic Range — Captures 2-megapixel video with up to 144 dB dynamic range, preserving detail in high-contrast outdoor scenes with bright skies and shadowed foreground elements
• AI-Powered Analytics Engine — Integrated people detection, vehicle detection, face detection, and occupancy detection enable intelligent alerting and rapid forensic video search
• Flexible Field of View — Horizontal field of view spans 65° to 2.1° in 16:9 mode, supporting both wide situational awareness and precise target identification
• Image Stabilization — Digital image stabilization compensates for camera vibration and mount movement, delivering steady video across zoom ranges
• Robust Outdoor Durability — IP66 and NEMA 4X rated enclosure with IK10 vandal resistance for harsh weather and high-abuse environments
• Built-in IR Illumination — 3-meter infrared illumination with automatic day/night switching enables 24/7 surveillance without auxiliary lighting
• Multiple Power Options — PoE++ (802.3bt), PoE+ (802.3at), and AC24V power support flexible installation in diverse network topologies

Technical Specifications

• Video Compression: H.265, H.264, MJPEG
• Edge Storage: microSD card up to 512 GB
• Network Interface: RJ-45 10/100 Ethernet with ONVIF compatibility
• Audio Support: Microphone input and audio output
• Security: HTTPS encryption and signed firmware
• IP Rating: IP66, NEMA 4X
• Vandal Rating: IK10
• Form Factor: Dome

Ideal Applications

The WV-S65340-Z4K is purpose-built for security integrators deploying intelligent outdoor surveillance in perimeter protection, parking lot monitoring, facility entrance control, and wide-area campus surveillance. The combination of 40× optical zoom, AI detection capabilities, and robust weatherproofing makes it suitable for environments requiring both broad situational awareness and precise target identification without reliance on external analytics infrastructure.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S65340-Z4K represents a mature PTZ platform optimized for outdoor integrations where optical performance and integrated intelligence reduce deployment complexity. The 144 dB dynamic range addresses the core challenge of outdoor surveillance—simultaneous capture of bright sky and shadowed foreground detail—without requiring advanced sensor technology. The 40× optical zoom with motorized lens enables operators to zoom from wide perimeter views (65° FOV) to facial identification range (2.1° FOV) within a single camera, reducing the need for multiple fixed cameras in some deployment scenarios.

Built-in AI analytics shift threat detection from post-event forensics to real-time alerting, though operators should validate detection accuracy against specific deployment conditions and target profiles. IP66/NEMA 4X/IK10 ratings confirm suitability for unhoused rooftop and exterior wall mounts. PoE++ power support enables single-cable installation on modern enterprise networks, though PoE+ and AC24V options provide backward compatibility with legacy infrastructure.

ONVIF compatibility ensures integration with third-party VMS platforms, reducing vendor lock-in risk.
