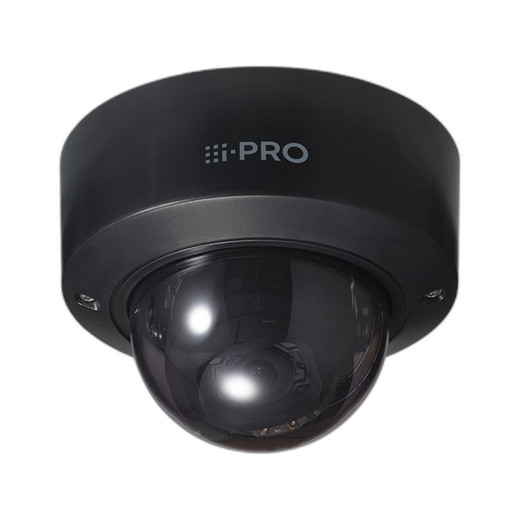

i-PRO WV-S2236LGA-B 2MP Black Vandal Resistant Indoor Dome IP Camera

i-PRO WV-S2236LGA-B 2MP Vandal Resistant Indoor Dome IP Camera

The i-PRO WV-S2236LGA-B is a purpose-built 2MP indoor dome camera engineered for high-security installations requiring exceptional durability and advanced video analytics. With an IK10 vandal resistance rating, motorized 3.1x optical zoom, and comprehensive AI-driven intelligence, this camera delivers reliable surveillance across retail environments, transportation hubs, government facilities, and institutional deployments where impact resistance and performance are non-negotiable.

Key Features

• 2MP Full HD Resolution at 60fps — Captures 1920x1080 at 60 fps in 16:9 mode; supports 4:3 aspect ratios up to 2048x1536 at 30 fps for flexible deployment scenarios
• IK10 Vandal Resistance — Withstands impacts up to 20 joules (IEC 62262), providing durability in high-traffic and public-facing indoor spaces
• Motorized 3.1x Optical Zoom with Auto Focus — 2.9–9 mm focal length lens enables remote field-of-view adjustment from 114° wide to 36° telephoto without physical intervention
• 144 dB Super Dynamic Range — Maximum dynamic range processing delivers detail in extreme lighting conditions; configurable Super Dynamic levels 0–31 for optimized image quality
• Advanced IR LED Night Vision — 0 lx monochrome performance with IR active; 70m (230 ft) at 30IRE or 50m (164 ft) at 50IRE coverage with adjustable intensity control
• Comprehensive AI Analytics — AI Video Motion Detection, Face Detection, People Detection, Vehicle Detection, Non-Mask Detection, Occupancy Monitoring, and Sound Classification (gunshot, yelling, horn, glass break)
• PoE Power and Flexible Storage — IEEE 802.3af compliant PoE (Class 0); supports microSD cards up to 512 GB for onboard recording
• ONVIF Compliance — Full ONVIF Profile G/M/S/T support for platform-agnostic integration
• Enterprise Security — FIPS 140-2 Level 3 hardware security, pre-installed GlobalSign certificates, HTTPS encryption, brute-force protection, and system logging

Technical Highlights

Optical performance is exceptional, with 0.018 lx color minimum illumination (30IRE, F1.3, 1/30s) ensuring visibility in near-darkness. The 1/2.8-type CMOS sensor delivers crisp imagery across adjustable frame rates (60/50/30/25/15/12.5 fps), while white balance options (ATW1/ATW2/AWC) and adaptive black stretch processing maintain detail across varying indoor lighting conditions.

Video compression leverages H.265, H.264, and Motion JPEG codecs with intelligent GOP control and frame-rate management to optimize bandwidth and storage efficiency. Four-area video motion detection (VMD) with scene change detection enables granular alarm triggering, while up to eight privacy zones protect sensitive areas within the frame.

The camera supports simultaneous connections from up to 14 users over Gigabit Ethernet with IPv4/IPv6 protocol stacks, MQTT, RTP/RTCP streaming, and RTSP playback. Three alarm input terminals support external sensors and trigger recording, email notifications, HTTP alerts, or Panasonic-protocol outputs.

Applications

Ideal for retail loss prevention, public transportation monitoring, government and education facilities, and any indoor setting requiring documented evidence capture with impact resistance. The combination of vandal-hardened construction, motorized zoom flexibility, and AI-powered detection makes this camera suited to unmanned, high-risk surveillance scenarios.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S2236LGA-B represents a mature, purpose-engineered solution for organizations balancing durability with intelligent video analytics. The IK10 rating and polycarbonate smoke dome are industry-standard for preventing lens obstruction and vandalism, while the motorized zoom (3.1x optical, up to 9.3x digital) reduces the need for multiple fixed-angle cameras in larger indoor spaces.

The 144 dB Super Dynamic range is a significant advantage in retail and transportation where lighting transitions between dimly-lit corridors and bright entrances are common. Paired with native AI sound classification and face/vehicle/occupancy detection, the camera enables loss prevention teams to correlate video evidence with behavioral analytics rather than relying on post-incident forensics alone.

Security posture is fortified: FIPS 140-2 Level 3 hardware crypto, signed firmware, and certificate pinning resist tampering and man-in-the-middle attacks. The microSD expansion up to 512 GB allows edge recording, reducing dependency on centralized NVR storage during network outages. PoE Class 0 operation simplifies infrastructure—single Ethernet cable for power and data minimizes installation complexity in retrofit scenarios.

ONVIF Profile compliance ensures VMS platform portability; organizations are not locked into proprietary ecosystems. Consider this camera for installations where impact resistance, remote optical adjustment, and AI-driven event filtering are operational requirements rather than optional features.
