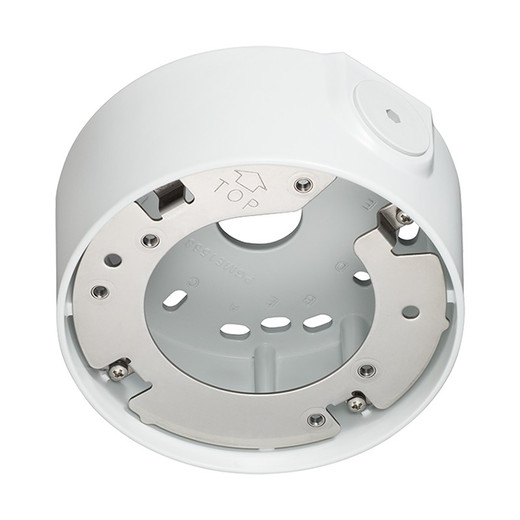

i-PRO WV-QJB502-W White Ceiling Surface Mount Bracket
Overview
The WV-QJB502-W is an aluminum die-cast ceiling and wall surface mount bracket engineered for i-PRO IP surveillance cameras. Deploy this bracket when conduit routing is required for wire management or when ceiling/wall cavities lack space for direct cable routing. The white finish integrates into standard drop ceilings and white surfaces, keeping mounting hardware visually discrete. Rated for ambient temperatures from –50°C to +60°C (–58°F to +140°F), making it suitable for climate-controlled indoor environments—offices, retail spaces, and light industrial facilities. The bracket's compact footprint (ø127 mm × 56.5 mm height) and low mass (approx. 470 g / 1.04 lbs) minimize visual impact while maintaining rigid support for i-PRO camera payloads.
Compatibility
The WV-QJB502-W is designed for i-PRO camera models. Exact compatible camera series and part numbers are maintained on the i-PRO support website—consult camera installation guides before purchase to confirm fit. The bracket accepts both M3×10 mm and M4×10 mm fixing screws, accommodating a range of mounting hole patterns across different i-PRO camera bodies. For current compatibility details, refer to your specific camera's installation documentation or contact the manufacturer's technical support line.
Installation Notes
Secure mounting to wall or ceiling is mandatory—follow the camera's installation guide for load ratings and fastener requirements specific to your substrate (drywall, concrete, metal stud). Aluminum die-cast construction delivers adequate rigidity for standard dome and compact camera weights in indoor installations. The included attachment plate must be aligned before installing fixing screws to prevent misalignment. Operating temperature limits (–50°C to +60°C) exclude outdoor or unheated environments without additional thermal protection.
What's in the Box
- 1x Operating Instructions manual
- 1x Attachment plate
- 5x M3×10 mm fixing screws for attachment plate (includes 1 spare)
- 4x M4×10 mm fixing screws for camera (includes 1 spare)
- 1x Cover
