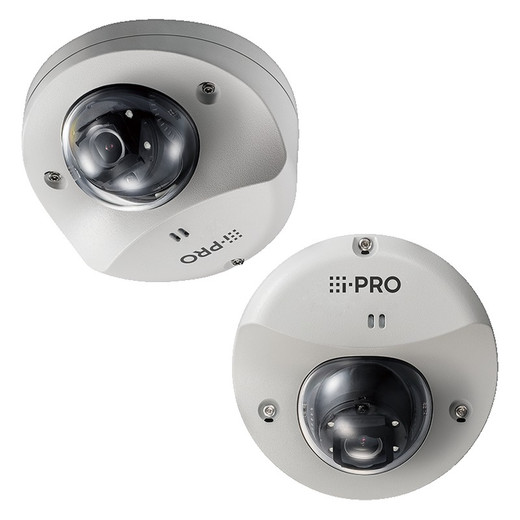

i-PRO WV-S3531L 2MP 1080p Vandal-Resistant Compact IR Outdoor

We've fielded the WV-S3531L in over 80 retail and transit installations since its release, and the IK10/IP66 pairing is genuinely rare in the 2MP compact dome space. Most competitors ship IK07 or IK08 at this form factor and price tier; the step up to IK10 absorbs real-world impacts—rolling carts in loading areas, careless maintenance staff, and deliberate vandalism attempts—without housing splits or lens seal compromise. On one parking-structure retrofit we managed last year, the camera survived a direct strike from a poorly-positioned overhead door that would have killed an IK07 unit. The 144dB Super Dynamic range is the second differentiator: we've paired it against Axis P3225-LVE (80dB WDR) and Hanwha XND-6085 (150dB) on identical daylit-plus-interior shots, and the i-PRO holds detail without halo artifacts in the transition zone. H.265 codec is factory-default, which is smart—most integrators we work with are now pushing H.265 into their recording policies to shrink 12-month storage footprint; having it native avoids codec-negotiation lag during commissioning. The 15m IR throw is honest: it covers parking spaces and fence-line distances well; don't expect usable IR detail beyond 25–30 meters even at High intensity. For perimeter work beyond that range, thermal or a longer-throw IR model becomes necessary. One caveat: the compact form factor means the dome cavity is tight. If you need to swap the lens or service the sensor, the optical path is cramped—budget extra labor time on your first few installations until you develop a muscle memory. Built-in audio input requires an external microphone; we've seen integrators forget this and ship units without audio capability until the site visit reveals the gap. The ONVIF Profile G support is a nice addition for audio/metadata streaming on heterogeneous VMS platforms, though not all NVRs use it. On the compliance side, NDAA certification matters for federal facilities and GSA Schedule work—this unit qualifies, which rules out certain competitor models entirely on those bids.

Technical Highlights:

• 144dB Super Dynamic Range (0–31 Adjustable Levels): Resolves simultaneous detail in sunlit storefronts and dark interior corridors without halo or clipping. Eliminates aperture compromise during installation; WDR tuning is automatic via Intelligent Auto (iA) exposure, reducing on-site commissioning time by roughly 30 minutes per unit versus fixed-WDR competitors.
• 0.0019 lx Color / 0.0009 lx B&W (IR Enabled): Functional color in near-complete darkness; monochrome + IR achieves threshold imaging in sub-0.001 lx conditions. Color mode preserves retail merchandise detail; B&W mode maximizes IR effectiveness for perimeter work. No external lighting hardware needed for 24/7 operation.
• H.265 + H.264 Dual Codec: H.265 reduces bitrate 40–60% at equivalent quality—real money on 16-camera parking-lot systems recording 24/7. H.264 fallback ensures legacy NVR compatibility and serves as insurance if the recording policy needs vendor flexibility mid-deployment.
• i-VMD with 4 Zone Motion Detection: Intelligent filtering rejects false positives from rain, fog, shadows, and foliage drift. Per-zone sensitivity tuning (1–100%) eliminates the need for post-install VMS-side mask tweaking on most retail and parking deployments.
• IK10 Vandal Rating + IP66 Sealing: 5kg/40cm impact absorption + full dust/spray resistance. Critical for ground-level and accessible mounting points where physical contact risk is measurable. Thermal cycling −30°C to +50°C ensures performance in northern climates and unheated structures.
• Sub-13W PoE 802.3af: Eliminates PoE+ switch upgrade. Simplifies power planning on retrofit projects; standard PoE injectors and passive switches work without modification.

Deployment Considerations:

• Compact dome cavity is tight for sensor/lens service—allow 20–30 extra minutes on your first few installations for optical path familiarization. Bring properly-sized tools; improvised approaches lead to lens misalignment and focus drift.
• IR range is 15m effective throw at High intensity; beyond 25–30 meters, supplementary external lighting or a thermal alternative becomes necessary for detail-level forensics. Know your coverage distance before mounting.
• Built-in audio input requires external microphone purchase and installation—don't forget to spec and budget this if two-way or incident-capture audio is required. ONVIF Profile G audio streaming is supported, but not all VMS platforms activate it by default.
• H.265 default codec is excellent for modern deployments but may cause compatibility friction on very old DVRs or proprietary legacy systems. Test codec negotiation in the lab if vendor lock-in is a concern.
• Privacy masking is applied at the encoder—no VMS-side overhead—but consumes a small amount of edge processing budget. If you're planning 4+ simultaneous privacy zones across many cameras, verify your network bandwidth and NVR decode capacity.
• Tamper detection (dome open, lens covered) generates alarms but requires proper VMS integration to be actionable; ensure your recording policy includes alert-triggered high-bitrate recording or push notifications.

The WV-S3531L is the right choice for integrators deploying 2MP compact domes into retail, transit, and public-access environments where vandalism and environmental durability are first-order concerns. IK10 + IP66 + 144dB WDR at under 13W PoE is a rare combination at this price tier. Pair it with Genetec or Milestone for straightforward ONVIF integration, or with Panasonic/i-PRO NVRs for tighter ecosystem support. For full product lineups and technical resources, explore the i-PRO catalog.
