HPE 793309-S01 HP DL580 GEN9E7-8880V3 2P128GB Svr/s-buy

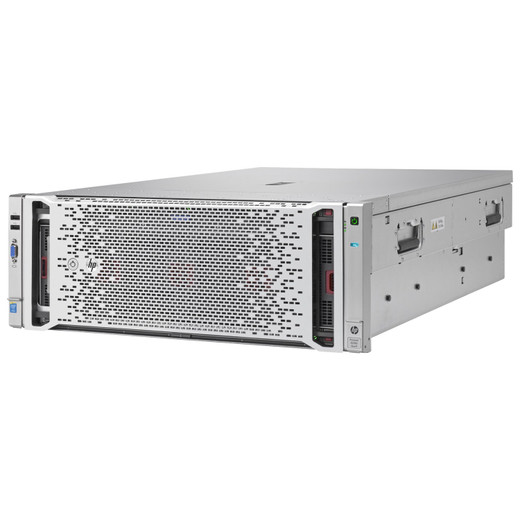

HPE 793309-S01 ProLiant DL580 Gen9 4U Rack Server

Overview

The HPE 793309-S01 is an S-Buy configuration of the ProLiant DL580 Gen9 — a high-density 4U rack server built for memory-intensive workloads: large in-memory databases, virtualization hosts, and enterprise middleware tiers that need to scale beyond the 2-socket ceiling. This specific configuration ships with two Intel Xeon E7-8880 v3 processors (18 cores each, 2.30 GHz), 128 GB of DDR4 SDRAM, and an HPE Smart Array P830i/2G controller supporting 12Gb/s SAS with RAID 0, 1, and 10 — giving you a validated, pre-integrated baseline that eliminates BOM assembly risk. The S-Buy designation means this is a factory-bundled SKU optimized for channel procurement, not a custom-configured build.

Compatibility

The 793309-S01 is specific to the HPE ProLiant DL580 Gen9 platform. Key compatibility boundaries to know before ordering: the E7-8880 v3 is a Haswell-EX Socket R4 (LGA 2011-1) processor — incompatible with prior Gen8 DL580 sockets. The P830i/2G controller requires SFF (Small Form Factor) drives; LFF drive cages will not mount in this enclosure. Expansion to 4 processors is supported by the platform (2 sockets populated here, 2 open). The included P830i controller supports HPE SmartDrive SFF SAS/SATA devices; verify drive firmware compatibility against HPE's SPP (Service Pack for ProLiant) before deploying mixed-vendor drives. Memory expansion must use DDR4 LR-DIMMs or R-DIMMs rated for E7 v3 platforms — standard desktop or workstation DDR4 is not compatible.

Installation Notes

Chassis weight is approximately 116.56 lb fully populated — two-person lift required for rack installation; do not single-person this into a tall rack. The unit ships with a rail kit and cable management arm included. Physical footprint is 4U at 39.00 × 24.00 × 16.00 in (L × W × H) — verify rack depth before ordering, as 39-inch server depth requires a minimum 1000mm cabinet. Dual 1200W redundant power supplies are installed; high-voltage PDU cord is included for 200–240V environments. Confirm your rack PDU amperage before powering on: two 1200W supplies at full draw require adequate circuit headroom.

What's in the Box

• 1x ProLiant DL580 Gen9 E7-8880v3 2P 128GB-R P830i/2G SFF 1200W RPS Server
• 1x Rail Kit
• 1x Cable Management Arm
• 1x High-Voltage Server to PDU Power Cord
