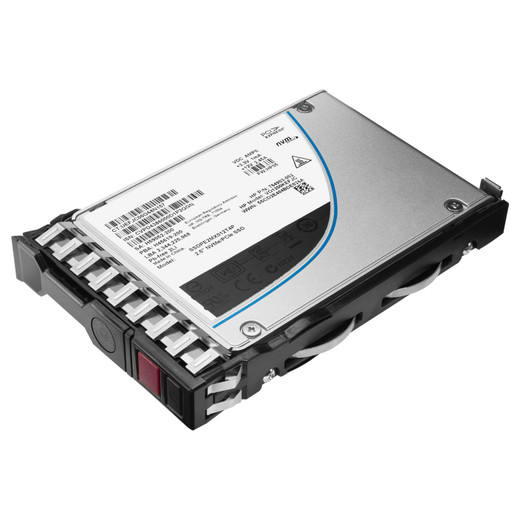

HPE 3.84TB NVME RI BC U.3 Fips CM7 SSD - P61027-B21

HPE P61027-B21 NVMe Gen4 Read-Intensive SSD

Overview

The HPE P61027-B21 is a 3.84TB NVMe PCIe Gen4 U.3 form-factor SSD built around read-intensive workloads where sustained sequential performance and compliance matter. Self-encrypting drive (SED) with FIPS 140-3 certification means sensitive surveillance footage, forensic archives, or regulated data stays protected at rest without requiring separate encryption layers. The U.3 interface (backward compatible with 2.5-inch SAS trays) makes this a direct swap into existing storage arrays without hardware redesign — critical when you're upgrading capacity in legacy systems.

Key Features

• 3.84TB capacity in SFF form factor: Maximizes density per drive slot, reducing overall enclosure footprint when scaling surveillance or secure storage deployments. For 24/7 multi-camera recording at high bitrate, this capacity translates to 45–90 days of retention depending on camera count and codec.
• NVMe PCIe Gen4 interface: Delivers sequential read performance significantly higher than SAS 12G predecessors — matters when forensic teams need to retrieve 30 days of 8MP footage in under 30 minutes. No architectural bottleneck on the storage side.
• U.3 form factor with backward compatibility: Plugs into 2.5-inch drive bays without adapter cards or firmware changes. Simplifies migration paths in enterprise storage arrays already populated with SATA or SAS SSDs.
• Self-encrypting drive (SED) with FIPS 140-3 certification: Encryption happens on-die without CPU overhead. FIPS 140-3 validation (CM7 level) satisfies federal security baselines for systems processing sensitive video or forensic evidence. No software key management — the drive itself manages key material.
• Read-intensive optimization: Tuned for high sustained read throughput and lower write amplification. Ideal for surveillance NVRs, forensic archival, or cold-storage tiers where footage is captured continuously but accessed rarely; write cycles are reserved for frame ingestion, not frequent erasure/rewrite cycles.
• Enterprise-grade power loss protection: Essential in surveillance arrays where sudden power loss during write could corrupt frame boundaries or timestamp metadata. Capacitor-backed cache ensures in-flight data lands safely on NAND.

Integration and Compatibility

The P61027-B21 integrates into any enterprise storage platform that accepts 2.5-inch U.3 NVMe drives. Common deployment targets: HPE ProLiant DL servers with NVMe expansion cards, third-party surveillance NVRs with U.3 expansion slots, and hybrid SSD/HDD tiering in archival systems. Verify your storage controller firmware supports NVMe protocol (not just SATA emulation); most modern enterprise arrays do, but legacy RAID controllers may require firmware updates. FIPS 140-3 compliance does not require ITAR licensing but does require secure key initialization — document key escrow procedures before deployment in regulated environments.

What's in the Box

No specific package contents were listed in the source evidence. Contact the HPE sales team or your channel partner for a detailed packing slip (typically includes drive, static bag, and documentation).

Frequently Asked Questions

Q: Is the P61027-B21 FIPS 140-3 certified for federal surveillance systems?

A: Yes. The P61027-B21 holds FIPS 140-3 CM7 certification, meaning the self-encrypting drive module meets federal cryptographic validation standards. This satisfies baseline requirements for systems processing sensitive government or law-enforcement video archives. Verify your system integrator has documented key initialization procedures for your agency.

Q: Can I replace my existing 2.5-inch SAS SSDs with the P61027-B21 without enclosure changes?

A: Yes. The U.3 form factor is electrically and mechanically backward compatible with 2.5-inch drive bays. No new trays, cables, or power connectors are needed. Your storage controller must support NVMe protocol — most modern HPE and third-party arrays do, but confirm with your hardware documentation.

Q: What's the warranty on the P61027-B21?

A: HPE warranty terms vary by channel and purchase agreement. Contact your HPE sales representative or reseller for specific warranty duration, coverage, and replacement procedures for this model.

Q: Does the P61027-B21 encrypt data automatically, or do I need to configure encryption in my NVR?

A: Encryption is automatic and on-die. The SED feature means data is encrypted the moment it arrives at the drive interface — no software overhead, no separate encryption layer required in the NVR. FIPS 140-3 certification confirms the cryptographic module meets federal standards.

Q: Is this drive suitable for 24/7 surveillance recording at high bitrates?

A: Yes. The read-intensive SSD is optimized for sustained sequential writes (frame capture) and fast reads (forensic retrieval). The 3.84TB capacity supports 45–90 days of 24/7 multi-camera retention depending on resolution and codec. Pair with a RAID array for redundancy — a single 3.84TB drive is a single point of failure.

Eden Phillips

The HPE P61027-B21 is built to solve a specific problem: you need dense, compliant storage for forensic-grade surveillance where federal encryption mandates are non-negotiable. The combination of 3.84TB capacity, NVMe Gen4 performance, and FIPS 140-3 self-encryption in U.3 form factor makes this drive a clean fit for government surveillance deployments, law-enforcement evidence lockers, or any regulated environment requiring encrypted storage without software key management overhead.

Technical Highlights:

• FIPS 140-3 CM7 self-encrypting drive (SED): Encryption happens on the drive itself — no CPU cycles, no separate key server, no compliance audit trail headaches. The CM7 level means cryptographic validation for sensitive video processing. If your deployment requires federal sign-off on data at rest, this is the cert to point to.
• NVMe PCIe Gen4 sequencial read performance: Forensic retrieval of 30–60 days of high-bitrate footage now completes in minutes instead of hours. Your forensic teams or legal discovery processes won't sit idle waiting for tape-grade read speeds.
• U.3 backward compatibility with 2.5-inch SAS infrastructure: No array redesign, no new enclosures, no power supply upgrades. Drop it into your existing HPE ProLiant or third-party storage array and move on. This alone saves weeks of procurement and validation cycles in enterprise environments.

Deployment Considerations:

• Verify your storage controller or NVR supports NVMe protocol — most modern systems do, but legacy SATA-only controllers won't recognize this drive. Check firmware release notes before ordering in bulk.
• FIPS 140-3 compliance requires secure key initialization at first power-on. Document your key escrow and backup procedures before deployment, especially in multi-site federal or law-enforcement networks. Key loss = permanent data loss on this drive.

Deploy this in government surveillance networks, forensic evidence storage, or any regulated archival tier where compliance documentation and encryption validation are prerequisites. The self-encryption removes the compliance engineering burden that usually comes with software-encrypted storage arrays.
