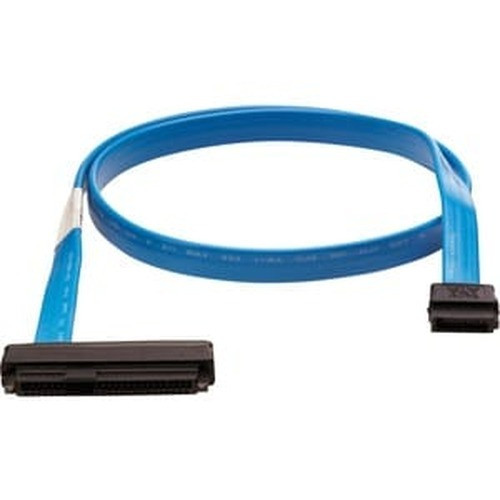

HPE HP EXT 2.0M Minisas HD to Minisas HD CBL - 716197-B21

HPE 716197-B21 External Mini-SAS HD to Mini-SAS HD Cable

Overview

The HPE 716197-B21 is a 2-meter external SAS cable terminated on both ends with SFF-8644 (4x HD Mini-SAS) connectors. It is purpose-built for connecting HPE servers, HBAs, and external storage enclosures where a high-density external SAS link is required. If you are expanding storage capacity by cabling an HPE server to an external JBOD or disk shelf, this is the direct-attach cable to reach for. Search variation: 716197-B21 (often searched as 716197 B21).

Browse the full HPE catalog for compatible servers, HBAs, and storage accessories.

Key Features

• SFF-8644 on Both Ends: The HD Mini-SAS (SFF-8644) connector carries four SAS lanes in a compact, latching form factor. Using the same connector at both ends means this cable connects two SFF-8644-equipped devices directly — no adapter, no signal conversion, no added latency.
• 2-Meter Reach: At 2m, the 716197-B21 gives you enough slack to route cleanly from a rack-mounted server to an adjacent external storage shelf without forcing tight bends. Shorter cables can work in theory but often make cable management difficult when shelves shift during maintenance.
• 4x SAS Lanes: Each SFF-8644 port carries four independent SAS lanes, supporting multi-drive enclosures and expanders in a single cable run. This is what allows a single cable to feed an entire shelf of drives rather than requiring one cable per drive.
• External-Rated Construction: The SFF-8644 specification is designed for external chassis-to-chassis connectivity — the connectors are rated for repeated mating cycles and include a positive latch that prevents accidental disconnection during drive shelf servicing.

Integration and Compatibility

The SFF-8644 connector is the industry-standard external HD Mini-SAS interface used across HPE ProLiant servers, HPE Smart Array and H-series HBAs, and HPE MSA and D-series external storage enclosures. If your HBA or RAID controller has an external SFF-8644 port and your storage shelf has a matching SFF-8644 SAS-in port, the 716197-B21 wires them together. Verify the SAS generation (SAS-2 vs. SAS-3) on both endpoints — the cable itself is passive, so link speed negotiates to the lower of the two devices. For external storage connectivity planning, confirm your HBA's port count matches the shelf's expected input count before ordering cable quantities.

For PoE switch and network infrastructure accessories that complement server builds, see the PoE switches category. For structured cabling and other cables and connectors, browse the full accessory range.

Frequently Asked Questions

Q: What connectors does the HPE 716197-B21 use?

A: Both ends use SFF-8644 (4x HD Mini-SAS) connectors — the same interface on both the host HBA side and the storage enclosure side.

Q: How long is the 716197-B21 cable?

A: The cable is 2 meters (approximately 6.6 feet).

Q: What SAS generations does the SFF-8644 connector support?

A: The SFF-8644 interface is used with both SAS-2 (6Gb/s per lane) and SAS-3 (12Gb/s per lane) devices. The actual link speed will negotiate to the lower-rated device at each end. The cable itself is passive and does not limit the generation.

Q: Can the 716197-B21 be used to connect two servers directly?

A: This cable is designed for external storage connectivity — from a server HBA's external SFF-8644 port to an external disk shelf or enclosure's SAS-in port. Direct server-to-server SAS cabling is not a standard use case and depends entirely on the HBA firmware and topology in use.

Q: Is a SAS expander or additional hardware required with this cable?

A: No. The 716197-B21 is a direct passive cable. It connects an SFF-8644 output on the HBA directly to the SFF-8644 input on a compatible storage enclosure — no expander, no adapter needed for that single link.

Karl Wilson

When you are cabling out an HPE external storage expansion — a D3700 shelf off a ProLiant DL server, for example — the 716197-B21 is the correct pull because both endpoints are SFF-8644 and the 2-meter length is practical for adjacent rack unit installations without forcing the cable into a hard bend at the backplane connector.

Technical Highlights:

• SFF-8644 (4x HD Mini-SAS): Each connector carries four SAS data lanes — one cable handles the full bandwidth of a multi-drive shelf input, not just a single drive channel.
• 2-Meter Length: Long enough to route cleanly between adjacent rack units with proper cable management, short enough that SAS signal integrity is not a concern — SAS-3 at 12Gb/s per lane has a passive cable reach well beyond 2m.
• Passive Construction: No active components means no firmware dependency, no driver consideration, and no failure mode beyond physical connector damage — the cable either works or it does not.

Deployment Considerations:

• Confirm both your HBA and storage shelf use external SFF-8644 ports before ordering — some older HPE storage ports use SFF-8088 (standard Mini-SAS, not HD), which requires a different cable or adapter.
• The 716197-B21 is rated for external use; do not substitute an internal SAS cable for this application — internal cables lack the SFF-8644 latch and are not built to the same bend-radius or mating-cycle specification.

This cable is the right choice for HPE ProLiant-to-HPE D-series or MSA shelf external SAS expansion in a single-rack deployment where the host and shelf sit within 2 meters of each other.
