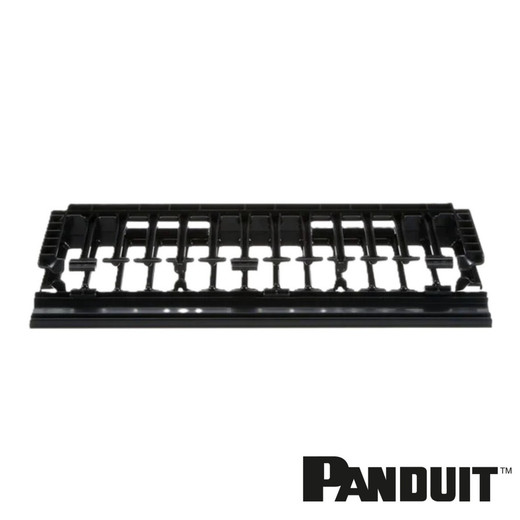

Panduit NM4 Horizontal Cable Manager High Capacity

Overview

The Panduit NM4 is a high-capacity horizontal cable manager designed for 19-inch rack systems. It addresses the critical need for organized cable routing in dense network and server environments, preventing cable strain and improving airflow. This manager is ideal for installations where managing a significant volume of patch cords and backbone cabling is essential, such as in data centers or enterprise network closets. The NM4 model specifically offers increased capacity over standard managers, accommodating more cables without compromising neatness or accessibility. Its design facilitates proper bend radius management, crucial for maintaining signal integrity and preventing damage to sensitive network cables.

Compatibility

This manager is designed for standard 19-inch rack and cabinet systems. It is compatible with a wide range of network and server equipment, including switches, routers, patch panels, and servers that utilize standard EIA-310 mounting dimensions. The NM4's mounting points align with standard rack units (U spaces), allowing for flexible placement within any rack configuration. It is suitable for use with various cable types, including Cat5e, Cat6, Cat6a, fiber optic patch cords, and power cables.

Installation Notes

Installation requires standard rack mounting hardware (typically cage nuts and screws, not included) to secure the manager to the 19-inch rack rails. The unit mounts vertically, occupying a specified number of rack units (U's) depending on its specific configuration. Ensure sufficient clearance is available in front of and behind the rack for cable routing and management. The manager's design allows for front and rear access to cables, simplifying moves, adds, and changes. Proper cable tie-down points are integrated to secure bundled cables.
