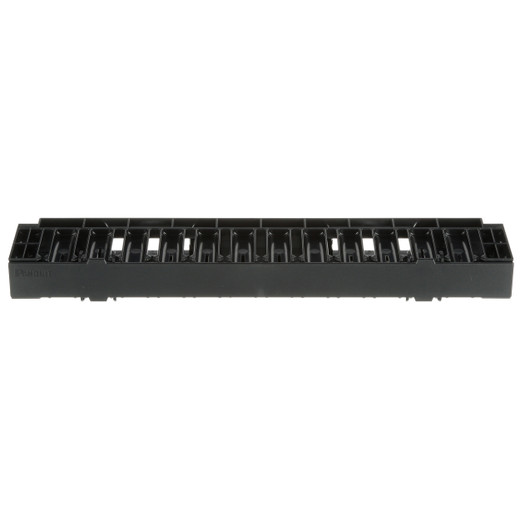

Panduit NCMHF1 NetManager™ Horizontal Single-Sided Cable Manager
The Panduit NCMHF1 delivers professional-grade horizontal cable management for enterprise rack installations where copper and fiber density demands systematic organization. This single-sided 1RU manager mounts in any standard EIA 19" rack or cabinet, providing controlled routing pathways that prevent cable kinks, maintain bend radius compliance, and reduce service interruptions caused by tangled or damaged patch cords. The hinged plastic cover swings open for adds/moves/changes without removing the entire assembly, cutting maintenance time on headend racks supporting IP camera systems, network switches, patch panels, and fiber distribution.
Key Features
- Bend Radius Control: Contoured interior guides maintain minimum bend radius for Cat6A, fiber, and coax, preventing signal degradation and cable jacket damage over equipment lifecycle
- Single-Sided Design: 3.7" depth accommodates horizontal routing on front or rear rack plane without blocking airflow or interfering with adjacent equipment cooling
- Tool-Free Access: Removable hinged cover opens without tools for rapid adds/moves/changes during network expansions or troubleshooting, then snaps closed to retain cables during transport or seismic events
- Universal Rack Fit: Mounts to standard EIA 19" (483mm) two-post or four-post racks using installer-supplied 12-24 screws or cage nuts (not included)
- ABS Construction: High-impact black ABS plastic resists cracking under cable load and retains shape in 32°F to 122°F operating environments typical of telecom closets and equipment rooms
- Safety Certified: UL 2416 and CSA C22.2 listed for use in plenum-adjacent spaces and commercial electrical installations requiring third-party verification
- RoHS Compliant: Meets European and California restrictions on hazardous substances for projects with environmental procurement mandates
Datacenter and telecom rack environments concentrating 24- or 48-port switches, fiber patch panels, and PoE++ injectors generate dense horizontal cable runs between front-mounted equipment and rear cable entry points. Without structured management, patch cords sag across airflow paths, create pulling tension on RJ45/LC connectors, and form tangled masses that slow troubleshooting during outages. The NCMHF1's 1.72" interior height (1RU) provides sufficient depth to stack multiple Cat6A cables or fiber trunks side-by-side while the contoured finger design maintains separation, preventing the cable-on-cable pressure that degrades jacket integrity and introduces crosstalk on high-frequency copper links. Security integrators building headend racks for 100+ IP camera PoE deployments rely on horizontal managers at each switch to route home-run cables cleanly to vertical managers or cable entry knock-outs, eliminating the zip-tie bundles and service loops that obscure port LEDs and complicate MAC work orders.
The hinged cover's tool-free operation proves critical in production environments where network changes occur under time pressure. During switch upgrades or VLAN reconfigurations, technicians flip the cover open with one hand, add or reroute patch cords through the finger channels, then snap the cover closed to retain cables without hunting for a screwdriver or disturbing adjacent equipment. This access model cuts a typical 48-port switch cable reorg from 45 minutes (removing/reinstalling fixed covers with 8-12 screws) to under 15 minutes, reducing labor cost and minimizing the window where cables hang loose. The black ABS material resists UV yellowing under LED rack lighting and tolerates the minor impacts common when sliding equipment in and out of tight rack spaces. Mounting ears accommodate two 12-24 screws each for secure attachment to threaded rack rails or Square Hole cage nut systems, with the 19" width ensuring flush alignment with standard patch panels and switch faceplates above and below.
UL 2416 and CSA C22.2 certification confirms the NCMHF1 meets North American safety standards for cable management devices installed in commercial and institutional electrical systems. Projects governed by NEC Article 645 (Information Technology Equipment) or pursuing LEED certification often require listed cable management components as part of the Authority Having Jurisdiction approval process. RoHS compliance supports installations subject to California Proposition 65, federal procurement (FAR Subpart 23.8), or corporate environmental policies restricting lead and brominated flame retardants in IT infrastructure. Panduit backs the NCMHF1 with manufacturer warranty and long-term product availability, reducing the risk of mid-project substitutions that force redesigns when rack layouts depend on specific manager dimensions and cover clearances.
