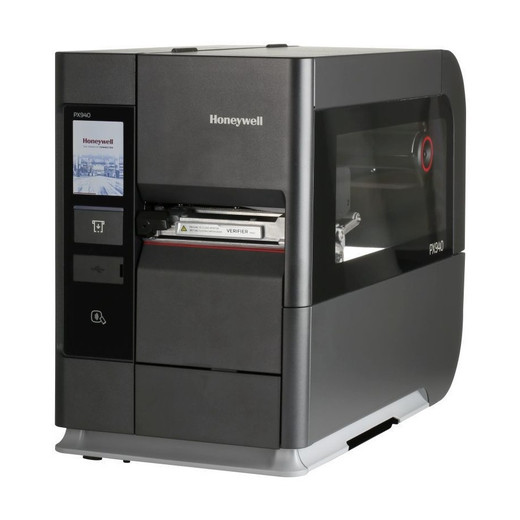

Honeywell PX940V30100060602 Industrial Label Printer with Integrated Barcode Verifier
The Honeywell PX940V30100060602 is a direct thermal and thermal transfer industrial label printer built specifically for manufacturing, logistics, and compliance operations where print quality is non-negotiable. The standout feature—an integrated barcode verifier certified to ISO/IEC 15416-2016 (1D) and ISO/IEC 15415-2011 (2D) standards—inspects every label at the moment of print. This shifts quality control upstream, catching print defects before they reach your conveyor or packaging line, eliminating downstream scanning failures and regulatory rejections.
Key Features
- 600 DPI print resolution: Sharp, scannable barcodes and crisp text at scale—necessary for dense label formats (small SKU codes, pharmaceutical serialization, hazmat compliance labeling) where lower resolutions produce unreadable output.
- Integrated 1D and 2D barcode verifier: ISO/IEC certified inspection runs automatically after each print, rejecting out-of-spec labels in real time. Eliminates manual rework and reduces compliance risk in regulated industries (pharma, food, hazmat).
- Print speeds up to 150 mm/s (6 ips) at 600 DPI: Fast enough for high-volume production—pharmaceutical cases, shipping labels, retail SKUs—without sacrificing quality. Thermal transfer and direct thermal modes support media from synthetic to recycled kraft.
- Dual-core ARM Cortex-A9 1 GHz processor and 1 GB DDR3 SDRAM: Sufficient computing power to handle complex label templates with graphics, variable data (from ERP/WMS databases), and multi-color thermal transfer without print delays. 256 MB flash storage maintains label definitions and graphics libraries onboard.
- Rewinder, peeler, and label-taken sensor: Automates label dispensing in high-volume lines—reduces manual handling and integrates with your existing conveyor or packaging equipment. Peeler module strips backing material for direct application; sensor confirms successful label release.
- 450-meter ribbon capacity (3-inch core): Extends production runs—especially important in thermal transfer mode where longer ribbon lengths reduce mid-shift changeovers. Ink-in/ink-out configuration minimizes waste.
- Multiple connectivity—Ethernet, USB 2.0, RS-232, Bluetooth, NFC: Wired Ethernet and USB for WMS/ERP integration; RS-232 bridges legacy systems; Bluetooth and NFC support mobile labeling workflows or ad-hoc field updates without rewiring. Language support includes ZPL II, ZSim2, and Direct Protocol emulations for compatibility with existing printer environments.
- 3.5-inch color touch LCD display: Intuitive operator interface for job setup, media/ribbon calibration, and verifier diagnostics. Reduces training time and minimizes configuration errors.
- Media roll capacity up to 213 mm (8.38 in) diameter: Accommodates standard industrial supply chain rolls, reducing changeover frequency on high-volume runs.
- Operating temperature 5–40°C; storage -20–70°C: Suitable for warehouse, manufacturing, and distribution environments with typical climate control. Not rated for outdoor deployment or extreme industrial conditions (kilns, freezers).
- 23.5 kg (51.8 lbs) footprint—261 × 506 × 398.7 mm (10.3 × 19.9 × 15.7 in): Benchtop footprint for integration into production lines, packing stations, or compliance labeling stations without excessive floor space.
When to Choose This Model
Select the PX940V30100060602 if your operation requires: (a) guaranteed print quality assurance at the point of print (ISO-certified verification is non-negotiable in pharma, hazmat, or food traceability); (b) thermal transfer capability for synthetic media (polypropylene, polyester) or durable labels in harsh environments (cold chain, warehouse); (c) high-volume production (150 mm/s throughput and 450m ribbon capacity justify the investment); (d) WMS/ERP integration with a existing ZPL printer fleet.
Skip this model if: your label volumes are low (fewer than 1,000 labels/day)—a lower-cost desktop thermal printer will suffice; you require color printing (this is monochrome only); or you need small form factor for mobile or handheld use (benchtop form is fixed).
Integration and Compatibility
The PX940V30100060602 integrates directly into WMS and ERP ecosystems via Ethernet (standard TCP/IP socket interface) or USB. ZPL II and ZSim2 language emulation ensure compatibility with existing label templates designed for Zebra-ecosystem printers. RS-232 serial connection supports legacy warehouse systems. Verifier diagnostics and print-quality metrics can be logged to external databases or monitoring systems via syslog or HTTP callbacks, enabling real-time quality dashboards.
Frequently Asked Questions
Q: Does the PX940V30100060602 support color printing?
A: No. The PX940V30100060602 is a monochrome thermal transfer and direct thermal printer. If full-color labels are required, consider a different class of printer (desktop inkjet or industrial color thermal transfer).
Q: What's the maximum print width?
A: 105.6 mm (4.16 in) at 600 DPI. This accommodates standard 4x6 shipping labels, 3x5 product labels, and most compliance label formats. Wider formats require a different printer model.
Q: Can the integrated verifier be disabled?
A: Yes. The verifier can be turned off in software if speed is prioritized over inspection, but this defeats the primary advantage of the model—inline quality assurance. Most users keep it enabled.
Q: Is the PX940V30100060602 suitable for outdoor or hazardous locations?
A: No. Operating temperature range (5–40°C) and lack of IP rating indicate this is a benchtop industrial printer for warehouses, manufacturing floors, or climate-controlled distribution centers. For outdoor labeling, a ruggedized mobile printer (handheld thermal) is more appropriate.
Q: What languages and protocols does the verifier report in?
A: Verifier data adheres to ISO/IEC 15416-2016 (1D) and ISO/IEC 15415-2011 (2D) standards. Pass/fail results and grade metrics can be output via HTTP or syslog for WMS logging. Exact report format depends on your MES or labeling software integration.
Q: Can I integrate the PX940V30100060602 with my existing Zebra-based label system?
A: Yes. ZPL II and ZSim2 emulation ensure that label templates designed for Zebra printers will print on the PX940V30100060602 without modification. Verifier behavior may require minor configuration, but core print compatibility is direct.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PX940V30100060602 represents the operational sweet spot for enterprises managing label quality at scale: it pairs production-grade print speed (150 mm/s at 600 DPI) with automatic ISO-certified barcode inspection. That integrated verifier is the critical differentiator—it detects print defects (voids, contrast failure, edge blur) in milliseconds, before a label ever reaches your conveyor or packaging line. In regulated environments (pharma traceability, hazmat compliance, food serialization), this real-time feedback loop is worth the hardware investment because it eliminates rework batches and compliance violations after labels are already applied.
Technical Highlights:
- Dual-core ARM 1 GHz + 1 GB DDR3 RAM: Sufficient horsepower to handle template complexity (graphics, variable data from databases, multi-color thermal transfer graphics) without print speed degradation. The 256 MB flash holds a substantial library of label definitions and artwork, reducing WMS-to-printer network traffic.
- 600 DPI at speeds up to 150 mm/s: High resolution and throughput together—critical for dense barcodes (pharmaceutical serialization, small-area SKUs) where lower-resolution printers produce unreadable output. At 150 mm/s, you're printing roughly 2,500 4x6 shipping labels per hour without bottlenecking.
- ISO/IEC 15416-2016 (1D) and ISO/IEC 15415-2011 (2D) verifier: This is not a cosmetic quality check—these standards define measurable print grade thresholds. The verifier quantifies contrast ratio, bar edge definition, and symbol contrast in 1D barcodes and provides similar metrics for 2D (QR, Data Matrix, PDF417). Failing grades are logged and rejected automatically.
- 450-meter ribbon, Ethernet + USB + RS-232: Long ribbon runs mean fewer mid-shift changeovers (real productivity gain in 24/7 operations). Multi-protocol connectivity bridges WMS (Ethernet), legacy warehousing systems (RS-232), and mobile workflows (USB, Bluetooth, NFC) without additional hardware.
Deployment Considerations:
- Benchtop footprint (261 × 506 × 398.7 mm, 23.5 kg) suits packing stations, compliance labeling centrals, and production-line integration—not mobile or field use. Position near your WMS server or ERP node to minimize latency on variable-data lookups.
- Operating range (5–40°C) is warehouse-standard but watch out in cold-storage or outdoor staging areas—below 5°C, thermal transfer media may not adhere reliably. Direct thermal works across the range better but is sensitive to temperature swings in label darkness.
- The verifier adds complexity: calibration (color bar, contrast reference) is required during setup and quarterly thereafter. If your operation never validates print quality and doesn't need ISO-certified proof, a standard printer (without verifier) is cheaper and simpler.
This model is purpose-built for pharmaceutical case labeling, shipment compliance (ITAR, export control codes), food traceability (FSMA), and hazmat label printing—anywhere regulators demand proof that every barcode is scannable at first read. For high-volume, quality-critical environments, the PX940V30100060602 pays for itself in rework avoidance.
