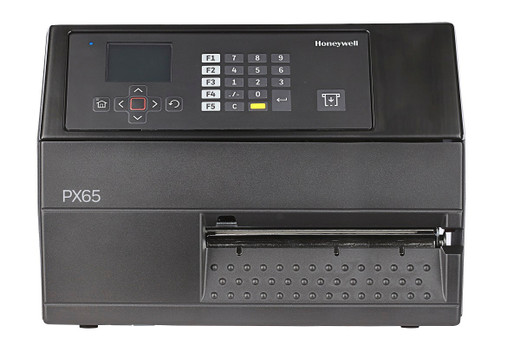

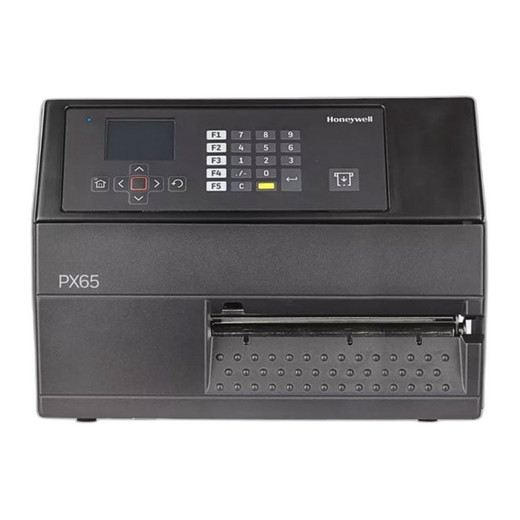

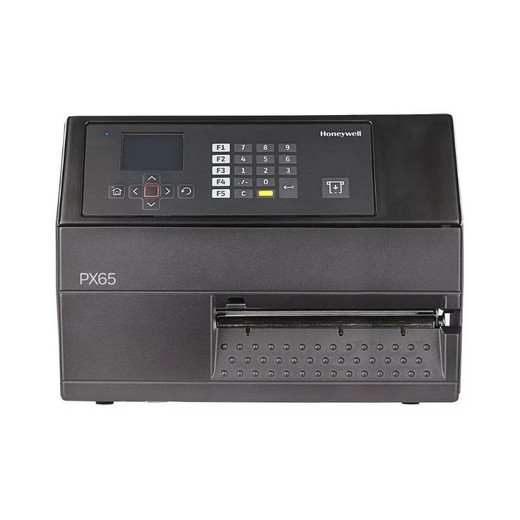

Honeywell PX65A00010000200 Industrial Label Printer
The Honeywell PX65A00010000200 is a production-grade industrial label printer engineered for high-volume thermal transfer printing in warehouse, manufacturing, and logistics environments. With 203 DPI resolution and print speeds reaching 225 mm/s (9 ips), this printer delivers the barcode clarity and throughput required for mission-critical supply chain operations. The 167.4 mm (6.6 in) maximum print width accommodates standard shipping labels, GHS compliance tags, product identification forms, and multi-part documents typical in distribution centers and manufacturing floors.
Key Features
- 203 DPI thermal transfer printing — produces sharp, scannable barcodes on UPC, Code 128, and GS1-128 symbologies; this resolution is the industry standard for logistics labels where barcode read-rate directly impacts conveyor sorting and parcel routing accuracy.
- Print speeds of 100–225 mm/s (4–9 ips) at 203 DPI — means throughput scales with label complexity; simple shipping labels print at maximum speed, while variable-data or multi-color forms throttle appropriately without driver intervention.
- 167.4 mm (6.6 in) maximum print width — supports 4x6 shipping labels, 4x5 compliance tags, and 6x8 warehouse pick tickets; wider formats require a different printer family.
- 256 MB RAM and 512 MB Flash memory — handles complex label templates with embedded graphics, variable data fields, and custom fonts without queuing delays; typical enterprise label complexity (product image, batch code, lot number, expiry, barcode) processes without noticeable slowdown.
- Multi-protocol emulation: ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL — legacy Zebra printer applications migrate to this model without source-code modification; reduces retraining time and integration costs in mixed-vendor environments.
- Gigabit Ethernet (10/100/1000 Mbps), dual USB 2.0, and RS-232 connectivity — accommodates modern WMS/ERP integration via standard TCP/IP while supporting older industrial networks and PLC hardwiring; no additional serial-to-Ethernet converters needed for brownfield deployments.
- IEEE 1284 parallel interface — legacy systems (pre-2010 DOS or Windows XP–era label applications) connect directly without USB adapters or protocol translation hardware.
- Color LCD display for printer status and diagnostics — real-time visibility into job queue, error codes (low ribbon, media mismatch, temperature faults), and configuration without external terminals or network management tools.
- Operating temperature range 5–40°C (41–104°F); storage to -20–70°C — suitable for climate-controlled distribution centers and production floors; cold-start up to -20°C means outdoor staging areas in northern climates are feasible, though print quality may degrade slightly until the thermal head warms.
- Humidity tolerance 10–90% non-condensing — typical warehouse environments (humid, but not dripping-wet) are well within spec; high-moisture shipping departments (near ice-loaded truck bays) should confirm condensation won't form on the optical sensors during overnight shutdown.
Integration & Compatibility
The PX65A00010000200 integrates with warehouse management systems (WMS), enterprise resource planning (ERP) platforms, and carrier software through standard Gigabit Ethernet and REST/SNMP APIs. ZPL II emulation ensures drop-in compatibility with existing Zebra printer label templates, reducing application re-coding. USB Host mode enables direct printing from barcode scanners or mobile computers running ZPL-compatible firmware. For legacy parallel-port or serial connections, the IEEE 1284 and RS-232 interfaces eliminate the need for external interface cards or terminal servers.
The printer's support for multiple emulations means you can run concurrent jobs from different legacy systems (e.g., a Fingerprint label application and a Direct Protocol application) without rebooting or manual mode switching. This is particularly valuable in large distribution centers operating multiple legacy label systems.
When to Choose a Different Model
If your label width exceeds 6.6 inches (e.g., 8x10 warehouse signs or full-width multi-part forms), you'll need a wider-format printer from the Honeywell or competitor industrial lineup. If print speeds below 4 ips are acceptable but you require lower cost or a smaller footprint, consider mid-range compact printers. For high-speed (400+ mm/s) production facilities or color label printing, step up to a more specialized system.
Dimensions & Weight
The printer measures 482 x 238 x 335 mm (19.0 x 9.4 x 13.2 in) and weighs 12.6 kg (31.1 lbs), making it suitable for tabletop installation on a warehouse counter or wall-mounted shelf using standard VESA brackets (not included). Power cords for both US and EU outlets are provided.
Frequently Asked Questions
Q: What ribbon width does the PX65A00010000200 require?
A: The printer accommodates 167.4 mm (6.6 in) ribbons; consult the Honeywell ribbon compatibility matrix for the specific resin, wax, or wax-resin blend suited to your label material and environmental conditions.
Q: Can I print on 4x6 labels at full 225 mm/s speed?
A: Yes. Simple barcode-only labels on standard Zebra or equivalent label stock print at maximum speed. Complex variable-data labels with embedded graphics or fonts may throttle to 100–150 mm/s depending on template complexity and memory buffer availability.
Q: Does the PX65A00010000200 support mobile or cloud-based label printing?
A: The printer supports Gigabit Ethernet and REST APIs, enabling printing from cloud-hosted WMS systems or mobile applications (Android, iOS) via standard HTTP POST to the printer's IP address. USB and serial connections work only with local or directly wired devices.
Q: What's the warranty on this model?
A: Standard manufacturer warranty terms vary by region and reseller. Consult your sales quote or Honeywell directly for warranty length, coverage exclusions, and support options.
Q: Is the PX65A00010000200 suitable for food, pharmaceutical, or automotive compliance labeling?
A: Yes. The printer produces durable, high-contrast labels meeting GHS (hazmat), FDA (pharmaceutical), and automotive traceability standards. Label longevity depends on ribbon type, media choice, and storage conditions — not the printer itself.
Q: Can I upgrade firmware or add analytics to this printer?
A: The PX65A00010000200 is a thermal printer without embedded analytics or video processing. Firmware updates are available from Honeywell for compatibility and security patches. For enterprise monitoring, integration via syslog or SNMP to a separate network management platform is standard practice.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PX65A00010000200 targets mid-to-high-volume production environments where barcode fidelity directly impacts downstream sorting, scanning, and compliance operations. The 203 DPI specification balances print quality against production speed—sufficient for standard UPC and Code 128 barcode symbologies while maintaining 9 ips throughput on simple labels. Gigabit Ethernet connectivity positions this model for modern WMS architectures, while inclusion of legacy interfaces (RS-232, parallel IEEE 1284, Fingerprint emulation) addresses mixed-generation facilities still running older host systems or custom in-house label applications.
Technical Highlights:
- 256 MB RAM / 512 MB Flash: Adequate for typical label template complexity; enterprises requiring extensive custom graphics, embedded fonts, or dynamic field substitution should test throughput with sample production templates before deployment. This memory footprint is not expandable.
- 225 mm/s max speed at 203 DPI: Translates to roughly 900 4x6 shipping labels per hour on uncomplicated barcode-only jobs. Complex variable-data forms (product images, multi-line text, dual barcodes) run slower; expect 400–600 labels/hr depending on template overhead.
- Multi-emulation support (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL): Eliminates single-vendor lock-in and avoids costly application rewrites when migrating from legacy Zebra or Datamax equipment. This is the hidden value for large enterprises managing decade-old label software.
Deployment Considerations:
- The 167.4 mm print width is fixed; verify your label stock fits within this constraint before purchase. Oversized compliance labels or custom forms require a different printer platform.
- Thermal transfer printing requires ribbon changes every 50,000–100,000 impressions depending on media; budget ribbon costs and training for supply-chain staff. Direct thermal (ribbon-less) printing is not an option on this model—factor in ongoing consumable expense.
- The color LCD display is helpful for troubleshooting, but network-based SNMP or syslog integration to a central monitoring system is essential for unattended warehouses or 24/7 operations. If print failures go unnoticed, label backlog can cascade quickly.
Best fit: large distribution centers, 3PL warehouses, and manufacturing facilities currently running Zebra ZT or ZM series printers seeking a Honeywell alternative without application rework. Not recommended for low-volume on-demand printing (consider compact desktop models) or color labeling (no built-in color capability on the PX65A00010000200).
