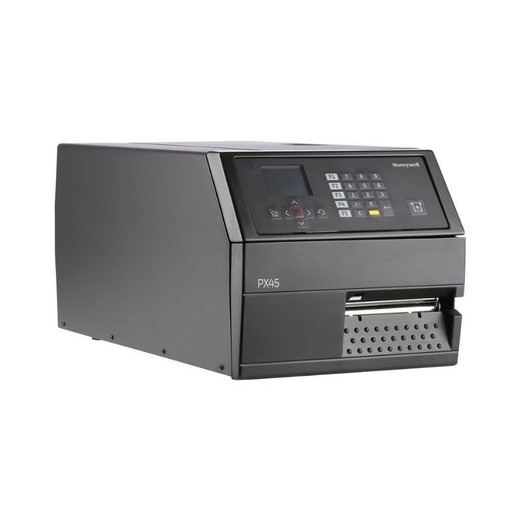

Honeywell PX45A00000020300 Industrial Thermal Label Printer
The Honeywell PX45A00000020300 is a production-grade thermal label printer engineered for sustained barcode and compliance label output in warehouse, manufacturing, and distribution environments. This 300 DPI configuration prints at up to 250 mm/s (10 inches per second), delivering crisp, scanner-ready barcodes across high-volume SKU tagging, shipping, and regulatory labeling workflows. The integrated rewinder with label-taken sensor automates label dispensing and integrates directly into pick-pack and receiving operations without operator intervention.
Key Features
- 300 DPI print resolution at 250 mm/s (10 ips): Produces scannable 1D and 2D barcodes with no quality loss even on small labels — eliminates retry scans and speeds receiving dock throughput.
- Dual thermal method support (direct thermal and thermal transfer): Direct thermal handles pressure-sensitive label rolls for temporary tags; thermal transfer uses ribbon for durable, long-shelf-life labels (GHS, pharmaceutical, shipping). Choose the method that matches your label durability and cost requirements without swapping hardware.
- Integrated rewinder with label-taken sensor: Automatically advances to the next label when the previous one is removed, enabling hands-free production in high-velocity pick-pack and case-labeling operations — reduces manual feed time and operator fatigue.
- 256 MB SDRAM and 512 MB Flash memory: Handles graphic-intensive label templates and large database-driven label batches without throughput degradation — no waiting for complex designs to spool.
- Multi-protocol emulation (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL): Existing label designs and ERP/WMS integration scripts run unchanged when replacing older printers — cuts migration overhead and testing cycles in fleet consolidations.
- Wired connectivity (Ethernet 10/100 Mbps, USB 2.0 Device/Host, RS-232): Integrates with warehouse management systems, inventory control, and ERP platforms via standard network protocols — no proprietary adapters or custom middleware required.
- Color LCD display: Operator-facing status feedback for job queue, media type, and error conditions — reduces support calls and speeds troubleshooting on the production floor.
- Compact footprint (275 x 482 x 238 mm / 10.8 x 19.0 x 9.4 in) at 12.6 kg: Fits into existing shipping, packing, and manufacturing workstations without bench space reconfiguration.
- Industrial operating range (5 to 40°C / 41 to 104°F), 10–90% non-condensing humidity: Performs reliably on warehouse floors and dock areas with temperature swings and dust typical of logistics environments.
- Dual power cord options (US and EU): Simplifies multi-region deployment across North American and European supply chain networks.
Integration & Deployment Scenarios
The PX45A00000020300 is purpose-built for industrial printing applications where barcode accuracy and throughput are non-negotiable. Integration into a warehouse automation system requires standard Ethernet cabling to your WMS or ERP network; no special power infrastructure is needed. Label template migration is straightforward if you're consolidating from other Zebra, Datamax, or Honeywell printers — ZPL II emulation ensures existing scripts and design files work on day one. For compliance labeling (pharmaceutical, food, hazardous materials), the thermal transfer method with ribbon provides archival-grade durability that satisfies regulatory label retention requirements.
When to Choose a Different Model
If your application requires higher resolution (600 DPI) for micro-printing or extremely small barcodes, consider a higher-resolution variant within the Honeywell industrial printer family. If label width consistently exceeds 110–112 mm, or if you need integrated RFID encoding, evaluate larger-format models in the PX6/PX7 series. For desktop or low-volume printing (under 500 labels per day), a smaller, single-roll direct thermal printer will reduce capital spend and floor space.
Frequently Asked Questions
Q: What's the maximum label width the PX45A00000020300 can handle?
A: Print width is 112 mm (4.4 in) in direct thermal mode and 110 mm (4.3 in) in thermal transfer mode. Maximum physical label roll width depends on the media spindle, but the printhead spans these widths.
Q: Can I upgrade the PX45A00000020300 from direct thermal to thermal transfer or vice versa?
A: The unit ships in one configuration. However, both methods are supported in the same mechanical frame — verify with your installer or Honeywell whether field conversion is available for your specific serial number.
Q: Does the PX45A00000020300 integrate with Zebra or Datamax label design software?
A: Yes. ZPL II and ZSim2 emulation allow label files created in Zebra Designer, Datamax Proprint, or any ZPL-compliant tool to print directly on the PX45 without modification.
Q: What's the throughput in a high-volume 24/7 operation?
A: At 250 mm/s sustained speed, the PX45A00000020300 prints approximately 1,000–1,200 standard 4x6 shipping labels per hour, depending on label design complexity and media thickness. Actual throughput includes brief pauses for label detection and rewinder advancement.
Q: Is the rewinder/label-taken sensor included with the PX45A00000020300?
A: Yes. The rewinder and label-taken sensor are integrated as standard features on this configuration.
Q: Can the PX45A00000020300 print barcodes in multiple languages or character sets?
A: Yes. ZPL II supports Unicode, allowing Latin, Cyrillic, Arabic, and Asian character sets for international labeling and compliance documents.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Honeywell PX45A00000020300 is a proven workhorse for mid-to-high-volume label production. The 300 DPI resolution at 250 mm/s prints crisp, first-scan barcodes — eliminating retry scans that cost time on receiving docks and in fulfillment centers. The integrated rewinder with label-taken sensor is the real differentiator here: it automates label advance without operator touch, a significant advantage when your operation is running 24/7 pick-pack or case-labeling cycles.
Technical Highlights:
- 256 MB SDRAM + 512 MB Flash: Handles graphic-intensive compliance labels (GHS, pharmaceutical) and large batch-print jobs from your WMS database without slowdown — no waiting, no spool bottlenecks.
- Dual thermal method support: Direct thermal for temporary tags (cost-optimized); thermal transfer with ribbon for durable, long-shelf shipping and regulatory labels. Switch methods based on label durability requirements without changing hardware.
- ZPL II, ZSim2, and multi-protocol emulation: Replaces older Zebra or Datamax printers drop-in: existing label templates and ERP integration scripts run unchanged, cutting migration testing from weeks to days.
Deployment Considerations:
- Print width limits: Maximum 112 mm (4.4 in) direct thermal, 110 mm (4.3 in) thermal transfer. If your labels exceed this regularly, you'll need a larger-format variant — verify roll width before purchase.
- Rewinder sizing: The integrated rewinder expects roll diameter and core type to match Honeywell's specifications. Non-standard media rolls may jam or cause sensor misfire — confirm media specs with your supplier.
- Thermal transfer costs: Ribbon consumption is an ongoing operating expense. For high-volume thermal transfer work, factor ribbon cost (typically $30–$80 per roll) into your label cost-per-unit analysis.
The PX45A00000020300 is the right choice for distribution centers and manufacturing plants that need sustained, reliable barcode production without quality compromise. The combination of 250 mm/s throughput, integrated automation, and legacy printer compatibility makes it a solid consolidation target for multi-vendor fleet environments.
