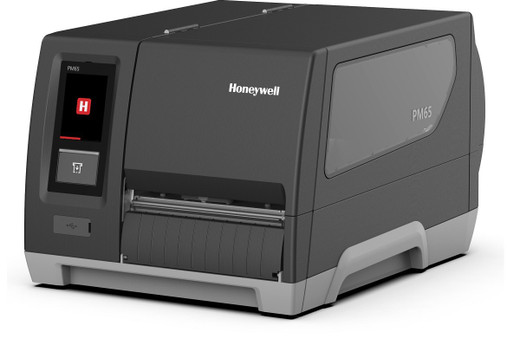

Honeywell PM65A11000030301 Industrial Label Printer 300DPI
The Honeywell PM65A11000030301 is a production-grade thermal label printer engineered for sustained high-volume operations in warehouses, manufacturing floors, and distribution centers. Configured for 300 DPI resolution with print speeds up to 300 mm/s (12 ips), this printer delivers consistent barcode quality and throughput without sacrificing label fidelity — a critical tradeoff in environments where scanning failures directly impact fulfillment speed and inventory accuracy.
Key Features
- 300 DPI thermal transfer printing at 12 ips: The resolution-to-speed ratio balances readability (scannable barcodes, QR codes, and text) against production throughput. At 300 DPI, GS1 Code 128 and similar industrial barcodes print with enough edge definition to avoid costly scan errors, without the slower output and higher cost of 600 DPI systems.
- 6.59-inch (167.4 mm) maximum print width: Handles standard shipping labels, compliance tags, product identification, and asset tracking labels without requiring label-splitting logic or manual secondary finishing. This width accommodates most e-commerce and pharmaceutical label formats.
- 256 MB SDRAM and 512 MB Flash memory: Sufficient capacity for complex label templates with variable data, multi-barcode layouts, and embedded graphics. Prevents slowdowns or job queuing when switching between label designs or handling graphics-heavy compliance labels.
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax) and Bluetooth 5.1 connectivity: Reduces wired infrastructure requirements and enables mobile device submission of print jobs. In congested warehouse Wi-Fi environments, fallback to 802.3 Gigabit Ethernet (10/100/1000 Mbps), dual USB 2.0 Host ports, and RS-232 serial ensures the printer stays responsive even if wireless bandwidth is taxed by barcode scanners or mobile inventory systems.
- Rewinder with label taken sensor: Automates substrate handling and ejects completed labels into a take-up bin, reducing manual labor for overnight production runs and enabling unattended printing. The label-taken sensor prevents misfeeds and reprints from wasted media.
- Real-time clock (RTC) included: Enables timestamp printing on labels for regulatory compliance (pharmaceutical batch tracking, food expiration, shipping timestamps) without requiring external synchronization or print-job timestamp injection from the host system.
- ZPL II, ZSim2, Direct Protocol, Fingerprint, and IPL emulation support: Allows drop-in replacement of legacy Zebra or other thermal printers with minimal software changes. Existing label templates and print drivers designed for competitor hardware will run without reprogramming, reducing transition cost and IT validation overhead.
Integration & Compatibility
The PM65A11000030301 integrates with warehouse management systems, ERP platforms, and cloud-based print management solutions via Gigabit Ethernet, Wi-Fi, or USB. Support for ZPL and alternative command sets means legacy label design software—common in large distribution networks—continues to work without modification. Real-time clock support ensures timestamps are accurate for traceability audits without relying on network time synchronization.
Environment & Deployment
Operating temperature range of 5–40°C (41–104°F) and humidity tolerance of 10–90% non-condensing make this printer suitable for climate-controlled warehouses and distribution centers, but not for unheated outdoor loading docks or freezer environments. Dimensions of 484 × 292 × 350 mm (19.1 × 11.5 × 13.8 in) and weight of 13.7 kg (30.2 lbs) allow tabletop or fixed hanger mounting in production line setups. Fixed hanger mounting means permanent installation—not ideal for mobile or temporary label stations.
When to Choose a Different Model
If label-per-second throughput is critical (exceeding 12 ips sustained), evaluate higher-speed variants in the Honeywell industrial printer line. If you require 600 DPI output for dense barcodes or micro-text (pharmaceutical serialization, pharmaceutical track-and-trace), step up to Honeywell's 600 DPI models. If the application demands operation in freezer or outdoor loading zones below 5°C or above 40°C, confirm temperature ratings before deployment.
Frequently Asked Questions
Q: What label media types does the PM65A11000030301 support?
A: The printer is configured for thermal transfer printing, meaning it requires a ribbon and compatible label stock (coated paper, synthetic, or specialty materials). The evidence does not specify maximum label length or specific material certifications—consult the full OEM datasheet for media compatibility matrix and recommended suppliers.
Q: Can the PM65A11000030301 print variable data (names, order numbers, barcodes) without stopping between labels?
A: Yes. With 256 MB SDRAM and 512 MB Flash, the printer buffers label templates and variable data, allowing continuous printing of different label designs (different barcodes, addresses, SKUs) without pausing. This is essential for e-commerce and order fulfillment workflows.
Q: Is the PM65A11000030301 compatible with my existing Zebra label software?
A: The printer supports ZPL II emulation, Zebra's most widely used command language. Existing label templates and print drivers designed for Zebra ZT or ZM series printers should work with minimal or no changes. Test your existing templates before deploying to production.
Q: Does the PM65A11000030301 require a separate power supply, or can it run on PoE?
A: The evidence shows a US power cord, indicating AC mains power. This printer does not run on PoE; it requires a dedicated AC outlet. Plan electrical infrastructure accordingly in your label-printing deployment area.
Q: Can labels be printed directly to a waiting bin without manual removal?
A: Yes. The rewinder with label taken sensor automates this process. When a label is complete, the sensor triggers ejection into the rewinder bin. This eliminates manual label stacking for high-volume overnight runs and reduces operator fatigue.
Q: What is the warranty on the PM65A11000030301?
A: The evidence does not specify a warranty term. Contact the supplier or Honeywell directly for coverage details, exclusions, and optional extended-service plans.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Honeywell PM65A11000030301 is a workhorse mid-range industrial printer that balances throughput, label quality, and integration flexibility. The 300 DPI / 12 ips specification is the sweet spot for high-volume barcode-centric operations where 600 DPI overhead is unnecessary and slower models would create bottlenecks during peak fulfillment windows.
Technical Highlights:
- 300 DPI at 12 ips: Delivers scannable barcodes (Code 128, UPC, QR) fast enough for e-commerce and retail distribution without the capital and energy cost of 600 DPI systems. At this resolution, barcode edge definition is sharp enough to avoid scan-miss penalties.
- 256 MB SDRAM + 512 MB Flash: Buffers multi-design label jobs without stuttering. Critical when a single print run includes mixed-format labels (shipping, compliance, product). No queue delays between template switches.
- Wi-Fi 6 with Gigabit Ethernet fallback: Modern warehouse environments suffer Wi-Fi congestion from handheld scanners and mobile inventory terminals. The dual-path connectivity (Wi-Fi 6 primary, Ethernet secondary) ensures the printer stays online even if your wireless channel is saturated.
- ZPL II emulation: Honeywell-Zebra command compatibility eliminates software re-validation and retraining. Existing label templates run as-is.
Deployment Considerations:
- Rewinder automation matters: For unattended overnight label printing (common in fulfillment), the rewinder with label-taken sensor prevents label jams and pile-up. Without it, morning shift finds a tangled mess. With it, thousands of labels stack cleanly in the bin.
- AC power required: This is not a mobile or battery-powered printer. Plan fixed installation on a stable surface with reliable mains power. If you need portable labeling, this is not your candidate.
- Temperature-controlled environment: The 5–40°C operating range excludes freezer facilities and unheated loading docks. If your labels must be printed on a dock door at -5°C, this model will not function reliably.
The PM65A11000030301 excels in controlled-environment distribution centers, e-commerce fulfillment hubs, and pharmaceutical manufacturing where 24/7 label production, barcode accuracy, and legacy software compatibility are non-negotiable. It's not the fastest printer in Honeywell's line, but it's efficient enough for most multi-SKU, high-volume operations without sacrificing label quality or requiring constant operator intervention.
