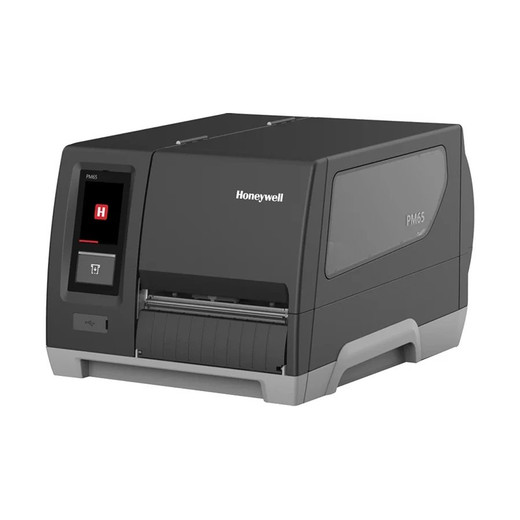

Honeywell PM65-TPH-203 Industrial Label Printer
The Honeywell PM65-TPH-203 is a production-class industrial label printer engineered for high-volume printing in demanding warehouse, manufacturing, and distribution environments. Built on the proven PM45 platform, this thermal printer combines Direct Thermal and Thermal Transfer printing capabilities at 203 DPI resolution, delivering sharp, consistently scannable barcode output for shipping labels, compliance documentation, product identification, and asset tracking applications. With a maximum print width of 108 mm (4.25 inches), the PM65-TPH-203 accommodates flexible label formats ranging from compact product tags to full-width shipping labels.
Key Features
- 203 DPI resolution for crisp, barcode-scannable thermal output
- Direct Thermal and Thermal Transfer dual printing modes
- 108 mm (4.25 in) maximum print width for diverse label sizing
- 3.5-inch color touch LCD display for intuitive configuration and diagnostics
- Multi-protocol emulation support (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL) for legacy system compatibility
- Advanced connectivity: Ethernet (10/100 Mbps), dual USB 2.0 Host ports, RS-232, and Wi-Fi (802.11 a/b/g/n/ac)
- Android-based operating system for flexible integration and management
- HTTPS encryption for secure network communications
- 256 MB SDRAM and 512 MB Flash memory for robust performance
Technical Specifications
The PM65-TPH-203 operates reliably across industrial temperature ranges from 5°C to 40°C, with extended storage capability from -20°C to 70°C. Humidity tolerance of 10–90% non-condensing ensures stable operation in varied warehouse and manufacturing conditions. The compact footprint (483 × 295 × 284 mm) and 12.1 kg weight allow flexible placement without excessive floor space requirements.
Enterprise Integration & Connectivity
Multi-port connectivity enables direct integration with warehouse management systems (WMS), enterprise resource planning (ERP) platforms, and cloud-based print management solutions. Ethernet and Wi-Fi options support both hardwired and wireless deployment scenarios, while dual USB ports accommodate peripherals such as external card readers or barcode scanners. LPR (Line Printer Remote) protocol support facilitates compatibility with legacy networked printing infrastructure. Android OS provides a modern foundation for future software updates and third-party application support.
Legacy System Migration
Multi-language emulation support—including ZPL II, ZSim2, Direct Protocol, Fingerprint, and IPL—enables drop-in replacement of legacy printer installations. This compatibility dramatically reduces migration costs, eliminates costly label template redesigns, and minimizes end-user training overhead.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM65-TPH-203 bridges production-grade reliability with enterprise connectivity and user accessibility. The dual thermal mode (Direct Thermal and Thermal Transfer) provides operational flexibility—Direct Thermal for cost-sensitive, short-run labels and Thermal Transfer for durable, long-shelf-life labels in harsh environments. The 3.5-inch color touch interface significantly reduces IT support burden compared to older LCD models, enabling warehouse operators to manage queue, configuration, and diagnostics independently.
For organizations running legacy ZPL-based label templates, the comprehensive emulation suite ensures zero rework, making this an ideal choice for large-scale deployments across multi-site logistics networks. Android OS underpins long-term software support and positions the device for future mobile device management (MDM) integration.
