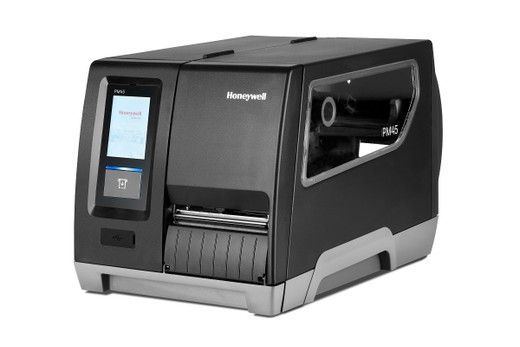

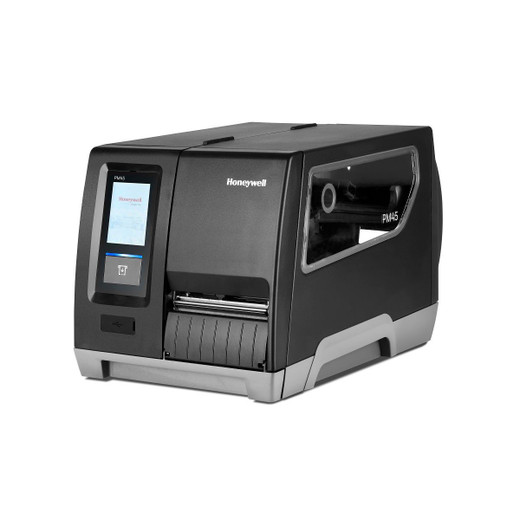

Honeywell PM45 203 DPI Industrial Label Printer

Honeywell PM45 203 DPI Industrial Label Printer

The Honeywell PM45 PM45A10010030200 is a production-grade thermal transfer label printer engineered for high-volume warehouse, manufacturing, and distribution operations. This 203 DPI configuration delivers consistent barcode quality and print reliability critical to supply chain visibility and regulatory compliance. With a print speed of up to 300 mm/s (12 ips) and integrated rewinder with label taken sensor, the PM45 automates label finishing and tracking while maintaining uncompromising output clarity across thousands of daily print cycles.

Key Features

• 203 DPI thermal transfer printing for crisp, consistently scannable barcodes and graphics
• Print speed up to 300 mm/s (12 ips) for high-throughput production environments
• 108 mm (4.25 in) maximum print width at 203 DPI—supports shipping, compliance, and asset labels
• Integrated rewinder with label taken sensor for automated label finishing and batch tracking
• 3.5 inch color touch LCD for intuitive job setup and real-time status monitoring
• 256 MB SDRAM and 512 MB Flash for complex templates with multi-barcode formats and variable data
• Multi-protocol emulation: ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL for seamless legacy system integration
• Comprehensive connectivity: Ethernet (10/100 Mbps), dual USB 2.0 Host, USB Device, RS-232, and 802.11 a/b/g/n/ac Wi-Fi

Technical Specifications

• Processor Memory: 256 MB SDRAM, 512 MB Flash
• Display: 3.5 in Color Touch LCD
• Operating Temperature: 5 to 40°C (41 to 104°F)
• Storage Temperature: -20 to 70°C (-4 to 152°F)
• Humidity: 10–90% non-condensing
• Dimensions: 483 x 295 x 284 mm (19.0 x 11.6 x 11.2 in)
• Weight: 12.1 kg (26.7 lbs)
• Mounting: Fixed Hanger
• Security: HTTPS encryption support
• Analytics: LPR support for print job auditing and compliance reporting

Applications

• Warehouse shipping and receiving label automation
• Manufacturing product identification and lot tracking
• Distribution center compliance label printing
• Asset and inventory barcode generation
• Healthcare and pharmaceutical labeling (with appropriate configuration)
• Retail price and promotional labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PM45 represents Honeywell's proven industrial printer architecture scaled for enterprise deployment. Its multi-protocol emulation engine eliminates costly application rewrites when migrating from competing platforms—a significant advantage in heterogeneous IT environments running legacy and modern label management systems simultaneously. The fixed hanger mount design positions the printer for line-side integration in high-speed conveyor systems, while dual USB Host ports enable direct scanner and external device connections without network overhead.

At 203 DPI, print quality balances resolution clarity against media cost and print speed; this configuration suits standard warehouse barcode densities. The Android-based OS and touchscreen interface reduce training friction for operational staff, though network connectivity—especially 802.11ac Wi-Fi and Ethernet—ensures centralized job queuing and real-time fleet monitoring via cloud-based MIS platforms. PoE Class 1 support allows simplified power and data delivery over single Ethernet cable, reducing installation complexity in retrofit scenarios.
