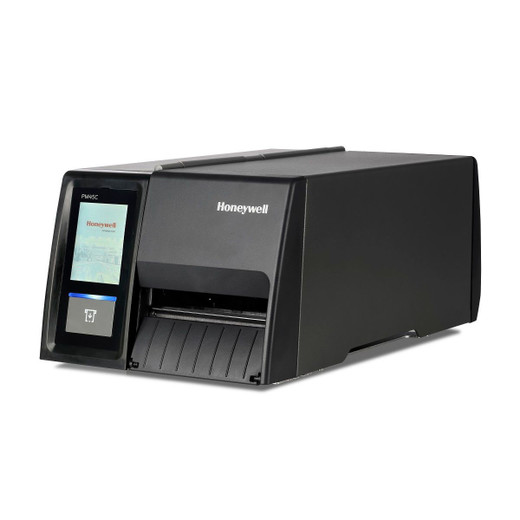

Honeywell PM45CA1020000200 Industrial Label Printer
The Honeywell PM45CA1020000200 is a production-grade industrial label printer engineered for high-volume barcode and label printing in warehouse, manufacturing, and distribution environments. This 203 DPI thermal transfer printer delivers sustained throughput at up to 300 mm/s (12 inches per second), ensuring consistent, scannable output across complex label templates and multi-barcode formats without performance degradation. With 256 MB SDRAM and 512 MB Flash memory, the printer handles variable data printing, high-density graphics, and sophisticated label designs typical of enterprise supply chain operations.
Key Features
- 203 DPI thermal transfer resolution: The industry standard for barcode printing. This resolution delivers the clarity required for GS1, UPC, Code 128, and other standard symbologies — sufficient for virtually all warehouse and compliance labeling without investing in higher-cost 300 or 600 DPI alternatives.
- Print speed up to 300 mm/s (12 ips): Keeps pace with high-volume production lines. At this throughput, a 4-inch label prints in roughly 1 second, meaning throughput bottlenecks move upstream to your software or label design processes, not the printer hardware.
- Maximum print width of 108 mm (4.25 inches) at 203 DPI: Handles standard shipping labels, compliance tags, and product ID labels without constraint. Wider formats require a different printer in the industrial lineup.
- 256 MB SDRAM and 512 MB Flash memory: Eliminates stuttering or re-transmission when processing graphics-heavy or multi-barcode templates. Complex label designs with logos, barcodes, and variable data fields process without buffering delays — a real difference when print volume exceeds 500+ labels per hour.
- 3.5-inch color touch LCD display: Operator can navigate printer settings, view job queues, and troubleshoot paper/ribbon issues without a PC. Reduces per-incident support calls and minimizes production interruptions.
- Multiple connectivity options — Ethernet (10/100 Mbps), USB 2.0 Device, USB 2.0 Host, and RS-232: Integrates directly with warehouse management systems (WMS), ERP platforms, and legacy serial-based equipment. Ethernet + HTTPS encryption support means secure network deployment without separate VPN tunneling.
- Support for ZPL II, ZSim2, Direct Protocol, Fingerprint, and IPL emulations: If you have existing label templates or scripts written for competitive Zebra or Datamax printers, this multi-protocol support minimizes software rework and operator retraining. Drop-in replacement capability is a genuine operational advantage in heterogeneous IT environments.
- LPR analytics support: Provides visibility into print job success rates, error logs, and consumables depletion — useful for predictive maintenance and identifying recurring design or data issues before they scale across the warehouse.
- Fixed hanger mounting: Compact footprint (432 x 181 x 253 mm, 11.5 kg) allows mounting above conveyor lines, on wall brackets, or in tight production cells without requiring floor space.
- Operating temperature range 5–40°C and humidity tolerance 10–90% non-condensing: Operates reliably in climate-controlled warehouses and lightly humid manufacturing areas. Not rated for outdoor or blast-freezer deployment — those require specialized industrial variants.
Integration & Compatibility
The PM45CA1020000200 integrates seamlessly with standard WMS and ERP platforms via Ethernet. HTTPS encryption and LPR analytics enable secure, monitored network deployment in regulated environments. Multi-protocol emulation support (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL) ensures compatibility with existing label templates and print queuing software, reducing integration cost and timeline.
When to Choose a Different Model
The 203 DPI resolution is the right choice for most barcode and compliance labeling. If you require ultra-high-density printing (small fonts, micro QR codes, or extremely compact labels), consider a higher-resolution variant in the Honeywell industrial printer family. For outdoor or extreme-temperature environments (blast freezers, unheated shipping docks), consult a rugged industrial printer specification. If you need integrated RFID encoding or color printing, those are separate product families and not available on the PM45C series.
Frequently Asked Questions
Q: What types of labels and media can the PM45CA1020000200 print on?
A: The printer is a thermal transfer device, meaning it requires a ribbon and can print on any thermal-transfer-compatible media: paper stock, polypropylene, polyester, and synthetic label materials up to 108 mm wide. Direct thermal media (no ribbon required) is not supported — verify your label stock is thermal transfer before ordering.
Q: Does the PM45CA1020000200 support network monitoring and remote diagnostics?
A: Yes. Ethernet connectivity and LPR analytics support allow centralized monitoring of print job success, error logs, and consumables status. HTTPS encryption enables secure network integration without additional VPN infrastructure.
Q: Can I migrate from a Zebra ZT410 or Datamax printer to the PM45CA1020000200?
A: The PM45CA1020000200 supports ZPL II, ZSim2, Direct Protocol, Fingerprint, and IPL emulations, so existing label templates can be reused with minimal or no modification. Test your most complex templates before full deployment to confirm formatting compatibility.
Q: What is the typical ribbon and label cost per label?
A: Consumables cost depends on label size, media type, and ribbon type. Consult consumables pricing or request a total cost of ownership analysis from your supplier; the evidence does not include consumables pricing.
Q: Is the PM45CA1020000200 suitable for outdoor or cold-storage environments?
A: The operating temperature range is 5–40°C (41–104°F) and humidity tolerance is 10–90% non-condensing. It is not rated for outdoor exposure, subzero warehouses, or blast-freezer environments. For those applications, specify a hardened industrial or cold-environment printer variant.
Q: What is the warranty period and support model?
A: The evidence does not include warranty terms or support SLA. Contact your supplier for warranty period, replacement/repair options, and on-site or advance-replacement support availability.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Honeywell PM45CA1020000200 represents a balanced solution for mid-to-high-volume industrial printing operations. The 203 DPI resolution is the industry standard for barcode printing — sufficient for virtually all GS1 and UPC codes while maintaining excellent print speed. The 300 mm/s throughput combined with robust memory (256 MB SDRAM, 512 MB Flash) ensures the printer performs well even with complex templates or graphics-heavy labels. Network connectivity via Ethernet and USB, combined with HTTPS encryption and LPR analytics, positions this unit for modern supply chain environments requiring monitoring and security. Support for five different emulation languages (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL) is genuinely useful if you're consolidating hardware from mixed vendor environments — it minimizes label template rework.
Technical Highlights:
- 300 mm/s print speed at 203 DPI: Translates to roughly one 4-inch label every second. In a high-volume operation, that's 900+ labels per hour without waiting. Speeds below 200 mm/s start to feel slow on lines doing 500+ labels/hour.
- 256 MB SDRAM + 512 MB Flash: Complex graphics or variable-data templates (variable customer names, SKUs, lot numbers) process without buffering delays or re-transmission hangs. At sub-$5K price point, this memory configuration is competitive.
- Multi-protocol emulation (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL): A genuine operational advantage. If you're replacing a Zebra printer and your templates are ZPL II-based, the PM45CA1020000200 executes them without rewriting. Test critical templates before full rollout, but the compatibility foundation is solid.
- HTTPS + LPR analytics: Centralized visibility into job success, error logs, and consumables depletion. Predictive maintenance signals (ribbon running low, paper jams) prevent surprise downtime.
Deployment Considerations:
- Operating temperature ceiling of 40°C is a real constraint in unheated warehouses or shipping docks in warm climates. Verify your facility climate before committing.
- 108 mm maximum print width is standard for shipping labels but incompatible with larger format compliance or carton labels. Confirm label dimensions match this constraint.
- Thermal transfer printing requires ribbon inventory management. Budget for both label stock and ribbon procurement and storage.
Position this printer for temperature-controlled warehouse environments (fulfillment centers, manufacturing clean rooms) running 500–3000 labels/day with a mix of standard and variable-data templates. It's the right tool where consolidating onto multi-protocol support saves engineering effort and template maintenance overhead. Avoid if you need color output, outdoor durability, or ultra-high-density printing.
