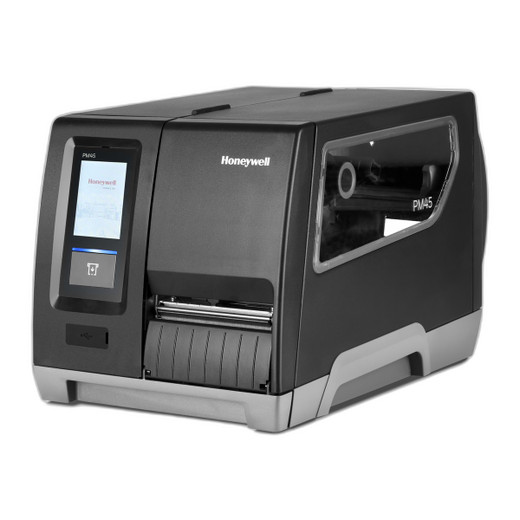

Honeywell PM45A10000030400 Industrial Label Printer 406 DPI
The Honeywell PM45A10000030400 is a production-grade thermal transfer label printer built for high-volume manufacturing, warehouse, and distribution environments where barcode quality and throughput cannot be compromised. With 406 DPI resolution and output speeds to 250 mm/s (10 ips), this printer consistently produces sharp, machine-readable barcodes across supply chain operations processing hundreds or thousands of labels daily.
Key Features
- 406 DPI thermal transfer resolution: Delivers crisp barcode and text output that scans reliably at the first attempt—critical when barcode read failures downstream trigger fulfillment delays or rework cycles. Higher DPI means smaller, denser labels fit more data in confined spaces (shipping labels, compliance tags, asset stickers).
- Print speed to 250 mm/s (10 ips) at 406 DPI: Sustains production throughput without sacrificing quality. At this speed, a facility can produce 500–1,000+ labels per shift with minimal operator idle time, directly reducing labor cost per label.
- Maximum print width 108 mm (4.25 in): Covers standard shipping, compliance, and product labels. Not suited for full-width industrial shipping labels (4x6), but adequate for smaller formats common in e-commerce and unit-level labeling.
- Rewinder with Label Taken Sensor: Automatically winds printed labels and detects when the label is removed—eliminating manual label separation, reducing operator fatigue, and flagging jams or feed errors in real time. Meaningful in 24/7 operations.
- 3.5-inch color touch LCD display: Reduces operator training time and supports on-printer job selection, status monitoring, and error diagnostics. Color display is notably more legible than monochrome alternatives in dimly-lit warehouse environments.
- Multiple connectivity options: Ethernet (10/100 Mbps), USB 2.0 Device, dual USB 2.0 Host ports, RS-232, and Wi-Fi 802.11 a/b/g/n/ac. Enables both networked (enterprise WMS integration) and direct (local label-on-demand) deployments. Dual USB hosts allow connection of external devices (scales, barcode scanners) without a hub.
- Five printer language emulations: ZPL II, ZSim2, Direct Protocol, Fingerprint, and IPL support. This breadth allows the PM45A10000030400 to coexist with legacy Zebra, Datamax, or proprietary label templates without redesign—a genuine migration advantage when consolidating multi-vendor print environments.
- HTTPS encryption and LPR analytics: Network communication is encrypted to prevent label-template interception. LPR analytics logging supports audit trails and usage reporting for compliance-heavy verticals (pharmaceutical, medical device tracking).
Memory and Processing
The printer houses 256 MB SDRAM and 512 MB Flash memory. This overhead allows processing of variable-data label templates, multi-barcode formats, and embedded graphics without queue buildup. In high-velocity facilities, print buffer capacity directly affects throughput stability; insufficient memory can force the printer into a slow-down state if templates are complex or graphics are large.
Environmental and Physical Specifications
Operating temperature range is 5–40°C (41–104°F), with storage capability from -20–70°C. The 5°C lower bound is below typical warehouse ambient but above frozen-storage or uninsulated outdoor conditions; verify fit if your facility operates in cold-chain or outdoor kiosks. The unit measures 483 x 295 x 284 mm and weighs 12.1 kg (26.7 lbs)—compact enough for benchtop or integrated-line mounting. Fixed hanger mounting provides stable installation on production lines without requiring proprietary brackets. Humidity tolerance of 10–90% non-condensing is standard industrial; avoid steam rooms or spray-wash environments.
Integration & Compatibility
Native support for Android OS and POE Class 1 compliance (under 13W draw via standard 802.3af PoE) means the printer can operate on unpowered switches or existing network infrastructure without upgrades. Seamless integration with warehouse management systems (WMS), enterprise resource planning (ERP) platforms, and cloud-based print management solutions through standard Ethernet or Wi-Fi connectivity.
When to Choose a Different Model
If your labels exceed 108 mm width, or if you require 300 DPI output for lower-density barcode formats, consider a wider-platen variant within the Honeywell industrial printer line. If your environment demands survival of repeated submersion, washdown, or outdoor UV exposure beyond typical warehouse conditions, specify an industrial-rated barcode label stock rather than a different printer model.
Frequently Asked Questions
Q: Does the PM45A10000030400 support variable-data printing (VDP)?
A: Yes. With 256 MB SDRAM and 512 MB Flash, the printer processes complex label templates containing variable fields (serial numbers, dates, lot codes, barcodes) without performance degradation. Integration with a WMS or print server sends job-specific data to the printer in real time.
Q: What label stock widths does the PM45A10000030400 support?
A: Maximum print width is 108 mm (4.25 inches). The printer can run narrower labels (up to that width) but cannot exceed it. Stock size, core diameter, and label gap are configurable in firmware.
Q: Can I use standard office label rolls on the PM45A10000030400?
A: No. The printer requires thermal transfer media (for use with a ribbon) or thermal-direct media (ribbon-free). Standard inkjet or laser label stock will not work and may damage the print head.
Q: Is the PM45A10000030400 network-ready out of the box?
A: Yes. The printer supports both Ethernet (10/100 Mbps) and Wi-Fi 802.11 a/b/g/n/ac. Configure the IP address via the 3.5-inch touchscreen or USB, then plug into your network. No additional hardware needed.
Q: What is the typical ribbon consumption at 406 DPI?
A: Ribbon cost depends on label size, print density, and ribbon length. At maximum speed (250 mm/s) printing dense barcodes, consumable cost per label typically ranges 2–4 cents, depending on media and ribbon sourcing. Confirm with your label supplier for exact figures.
Q: Does the PM45A10000030400 integrate with Zebra printer management software?
A: The PM45A10000030400 is a Honeywell printer and integrates with Honeywell print management platforms. It supports ZPL II emulation, which allows some legacy Zebra label templates to print without redesign, but true Zebra proprietary software integration is not guaranteed. Consult your WMS vendor or Honeywell pre-sales to confirm compatibility with your existing print infrastructure.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM45A10000030400 is purpose-built for mid-to-high-volume labeling operations where barcode read accuracy directly impacts downstream fulfillment velocity. The combination of 406 DPI resolution and 250 mm/s speed positions this printer in the production-tier segment—suitable for facilities processing 500+ labels daily without complexity overhead. The rewinder with label-taken sensor is the unsung efficiency win here; in 24/7 distribution centers, it eliminates manual label separation, reducing operator fatigue and print jams that can ripple through shift schedules.
Technical Highlights:
- 406 DPI + 250 mm/s throughput: Achieves production-level speed without sacrificing print density. At this resolution, barcodes remain machine-readable even when printed at small scale—a genuine advantage for asset labels or compliance stickers where space is constrained.
- Five language emulations (ZPL II, ZSim2, Direct Protocol, Fingerprint, IPL): Eliminates template redesign when migrating from legacy Zebra, Datamax, or proprietary systems. This flexibility is worth quantifying: redesigning 50+ label templates across a multi-site facility can cost thousands in engineering hours.
- 256 MB SDRAM + 512 MB Flash: Sufficient to queue and process variable-data templates with embedded graphics without buffer overflow. In high-velocity WMS environments, print queue stability directly affects label throughput consistency.
- Dual USB 2.0 Host ports + Ethernet + Wi-Fi: Supports hybrid deployments (local label-on-demand from a scale or scanner, plus networked WMS integration). No proprietary cabling or hubs required.
Deployment Considerations:
- The 5°C lower operating bound is above frozen-storage conditions; if your facility operates in blast-freeze or uninsulated outdoor kiosks, specify a cold-rated variant or add environmental shielding.
- 108 mm maximum print width excludes full 4x6 shipping labels common in parcel logistics. Confirm label footprint with your WMS or label vendor before committing.
- HTTPS encryption and LPR analytics logging are present, but they add latency to print jobs; disable if throughput is the primary constraint and security is not a regulatory requirement.
Deploy the PM45A10000030400 in mid-tier distribution centers, manufacturing lines, or e-commerce fulfillment facilities where barcode scan-rate accuracy is non-negotiable and label volumes justify production-class hardware. The 3.5-inch touchscreen and multi-protocol support reduce training and migration friction—real factors when staffing is transient.
