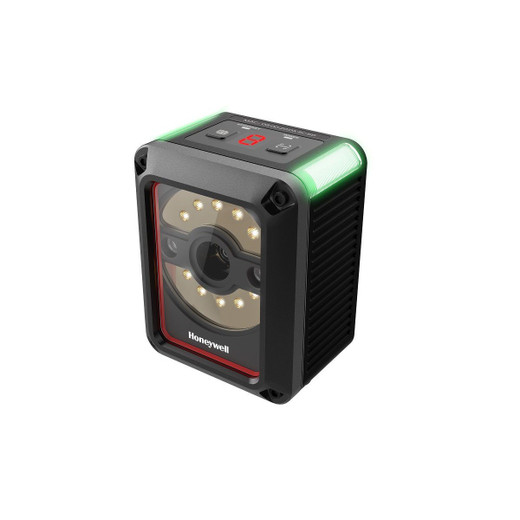

Honeywell HF810-01BT00004K-R Fixed Mount Barcode Scanner
The Honeywell HF800 HF810-01BT00004K-R is a rugged fixed-mount linear imager designed for high-volume 1D barcode capture in demanding industrial environments. Built for warehouse, manufacturing, retail, and logistics operations, this scanner delivers reliable performance across variable barcode conditions including damaged, poorly printed, and high-density symbologies. With IP42-rated construction and lightweight 0.4 lb design, the HF810 integrates seamlessly into fixed-position data capture workflows where durability and consistent read performance are critical.
Key Features
- Fixed mount linear imager for 1D barcode decoding
- IP42 environmental rating for dust and moisture protection
- Corded RS-232/USB connectivity for flexible host integration
- Operating temperature range: 0° to 50°C
- Lightweight 0.4 lb form factor for compact mounting
- 2MP imaging resolution for sharp barcode capture
- Outdoor-ready design for covered external applications
- Aggressive decoding algorithms for difficult barcode conditions
Technical Highlights
The HF810 employs advanced linear imaging technology optimized for rapid 1D barcode acquisition in high-speed production and fulfillment environments. The fixed-mount design eliminates manual scanning, reducing operator fatigue while enabling hands-free workflow integration at conveyor systems, sorting lines, and check-out points. With dual connectivity options (RS-232 and USB), the scanner adapts to legacy and modern point-of-sale systems, enterprise resource planning platforms, and warehouse management systems without requiring specialized hardware adapters.
The 2MP imaging sensor captures high-resolution barcode data across standard read distances, ensuring first-pass decode success on both pristine and degraded labels. The IP42 protection rating safeguards internal optics and electronics from warehouse dust, moisture splash, and light contamination typical in logistics facilities and food/beverage production environments. Operating reliably across industrial temperature ranges from freezer to room-temperature warehouses, the HF810 maintains consistent scan performance without thermal drift or image degradation.
Ideal Applications
- Conveyor-mounted barcode verification systems
- Package sortation and routing hubs
- Manufacturing line item identification
- Retail point-of-sale fixed-position scanning
- Returns and damage assessment workflows
- Cold chain logistics and temperature-controlled facilities
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HF810-01BT00004K-R represents Honeywell's fixed-mount scanner strategy for stationary capture applications where manual scanning introduces operational bottlenecks. Unlike handheld scanners requiring operator interaction, fixed-mount linear imagers accelerate throughput while reducing repetitive strain injuries in high-volume picking, packing, and shipping operations. The IP42 rating, while not full-immersion capable, provides adequate protection for typical warehouse environments; operations in washdown or high-moisture zones should consider higher-rated alternatives.
The dual RS-232/USB connectivity appeals to hybrid IT environments transitioning legacy systems to modern infrastructure, eliminating forced rip-and-replace scenarios. For organizations optimizing cost-per-scan in fixed-position workflows, the HF810 delivers industrial-grade reliability at competitive price points compared to multi-function mobile computers or high-end area imagers.
