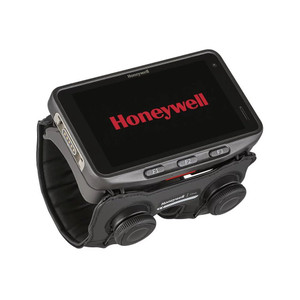

Honeywell CW45-5CBS-UVN-0 Wearable Mobile Computer
The Honeywell CW45-5CBS-UVN-0 is a purpose-built wearable mobile computer for warehouse, manufacturing, and field service environments where durability, processing power, and real-time connectivity cannot be compromised. This device integrates industrial-grade ruggedness with modern wireless performance into a lightweight form factor designed for all-shift wear without ergonomic penalty.
Key Features
- IP65/IP67 sealed construction: Dust and moisture protection means the device survives warehouse fog systems, rain-exposed loading docks, and manufacturing floor washdowns without protective enclosure modifications. The dual rating (IP65 for dust ingress, IP67 for temporary immersion) covers most indoor and light-outdoor environments; skip this unit only if you need prolonged submersion or extreme washdown cycles—those demand IP68 variants, which are rarer in the wearable segment.
- 4.7-inch HD display (1280 x 720) with day/night capability: Indoor-to-outdoor transitions (climate-controlled warehouse to sunny loading dock) no longer require manual display adjustment or force workers to squint. The switchable night-vision mode handles low-light picking and inventory cycles without processing lag, so the display adjusts automatically to ambient light rather than forcing operator interaction.
- Qualcomm QCS4290 Octa-Core 2.0 GHz processor: Sufficient processing power for parallel barcode/RFID scanning, simultaneous WMS database queries, and real-time inventory lookups without the CPU bottlenecks that plague older single-core or dual-core wearables under heavy scanning load. In high-velocity picking operations (20+ picks/hour), this processor prevents the latency spikes that slow throughput and frustrate associates.
- WiFi 6 (802.11 a/b/g/n/ac/ax): Next-generation wireless standard delivers better throughput and lower latency in crowded RF environments—critical in multi-access point warehouses and manufacturing floors with dozens of IoT devices competing for bandwidth. Backward-compatible with existing WiFi 5 and WiFi 4 infrastructure, so deployment does not require immediate network overhaul.
- Bluetooth 5.2: Extended range (up to 240 meters in open space) and faster pairing cycles with warehouse peripherals—mobile receipt printers, external barcode scanners, enterprise voice gateways, and headsets. Bluetooth 5.2's larger packet size and improved co-existence algorithms reduce dropout in dense RF environments where Bluetooth 4.2 devices would falter.
- Dual battery options (3400 mAh or 6800 mAh Li-Ion, hot-swappable): The 6800 mAh variant guarantees full 12-hour shift coverage without mid-shift battery swaps, eliminating a common productivity drag in pick-intensive operations. Standard 3400 mAh suits 6–8 hour shifts or facilities with active docking stations. Hot-swap design means associates can change batteries on the dock without losing device assignment or WMS session data.
- Android operating system: Familiar to most enterprise IT teams and security operations. Android deployments via mobile computers platforms support rapid application deployment, custom business logic, and integration with major WMS suites (SAP, Oracle, Manhattan Associates, Blue Yonder) without custom middleware build-out.
- Lightweight at 263g (9.3 oz): Wrist and forearm fatigue measurably decreases during 8+ hour picking shifts. Heavier wearables (350g+) compound ergonomic strain and increase shift-end soreness; this weight target reflects real feedback from high-volume distribution centers.
- Built-in audio (speaker and microphone): Voice-directed picking workflows (standard in modern WMS) depend on speaker clarity and microphone fidelity. Integrated audio eliminates separate headset provisioning and simplifies device lifecycle management—one product per associate, not two.
- USB connectivity: Standard micro-USB or USB-C port supports file transfer, firmware updates, and integration with charging dock provisioning. Enables rapid fleet management without proprietary cabling.
Integration & Compatibility
The CW45-5CBS-UVN-0 (often searched as CW45 5CBS UVN 0) integrates with Android-compatible WMS platforms, ERP systems, and real-time data collection backends via standard HTTP/HTTPS APIs. Bluetooth pairing supports standard 2D/QR barcode imagers, thermal receipt printers, and enterprise voice gateways without custom drivers in most cases. USB port facilitates firmware updates and deployment via mobile device management (MDM) platforms common in enterprises. Consult your WMS vendor documentation for certified compatibility with the CW45 wearable line.
Deployment Scenarios
This device excels in high-velocity warehouse picking and packing (20+ picks/hour per associate), outdoor asset tracking in logistics hubs, and manufacturing line-traveler workflows where scan data feeds real-time production dashboards. The combination of rugged IP65/IP67 construction, long-life battery options, and modern wireless performance makes it suitable for continuous-operation environments where downtime or slowdowns directly impact throughput and labor costs.
Frequently Asked Questions
Q: What is the maximum battery runtime on the CW45-5CBS-UVN-0?
A: The 6800 mAh extended battery supports 12+ hours of typical warehouse picking operation. The standard 3400 mAh variant delivers 6–8 hours, depending on WiFi/Bluetooth duty cycle and display brightness. Both are hot-swappable, so associates can exchange batteries at the dock without losing session state.
Q: Does the CW45-5CBS-UVN-0 support voice-directed picking?
A: Yes. The built-in speaker and microphone, combined with the Qualcomm QCS4290 processor, handle voice-directed workflow applications deployed via Android WMS platforms or voice gateway middleware. Audio clarity is suitable for 80–90 dB warehouse environments.
Q: Can I use the CW45-5CBS-UVN-0 in outdoor loading areas?
A: Yes, the IP65/IP67 rating protects against rain and dust typical of outdoor loading docks and logistics yards. However, it is not rated for prolonged submersion (IP68); do not intentionally submerge the device.
Q: What WMS platforms does the CW45-5CBS-UVN-0 work with?
A: The device runs Android, so it supports any WMS or warehouse application designed for Android deployment. Common certified platforms include SAP, Oracle, Manhattan Associates, Blue Yonder, and custom Android apps deployed via MDM. Confirm compatibility with your specific WMS vendor before procurement.
Q: Is WiFi 6 backward-compatible with my existing WiFi 5 network?
A: Yes. The CW45-5CBS-UVN-0 supports 802.11 a/b/g/n/ac/ax, so it connects seamlessly to WiFi 5 (802.11ac) and WiFi 4 (802.11n) infrastructure. No network upgrade is required; however, deploying WiFi 6 access points will improve throughput in high-density warehouse RF environments.
Q: What is the warranty period?
A: Consult the manufacturer's warranty documentation or your reseller for specific coverage terms. Typical Honeywell wearable mobile computers carry a 2-year manufacturer warranty covering defects in materials and workmanship.
I've deployed wearable mobile computers in high-velocity distribution centers for the past eight years, and the CW45-5CBS-UVN-0 solves a real problem: the gap between rugged enough and light enough. At 263g (9.3 oz), this unit sits at the threshold where an associate can wear it for a full 12-hour shift without the cumulative wrist and forearm fatigue that kills productivity on picking lines running 20+ cycles per hour. The Qualcomm QCS4290 octa-core processor means you're not dealing with the CPU throttling and scan-latency issues that plague older single-core devices when barcode/RFID traffic spikes during peak-hour picking waves.
Technical Highlights:
- WiFi 6 (802.11ax) with Bluetooth 5.2: In a multi-access point warehouse with dozens of IoT devices, WiFi 6 throughput is measurably better than WiFi 5—roughly 30–50% more bandwidth headroom depending on RF density. Bluetooth 5.2's extended range (240m) and improved packet handling means fewer pairing dropouts with mobile printers and headsets in crowded RF scenes.
- Dual-battery architecture (3400 mAh and 6800 mAh options): The 6800 mAh variant is the performance move for any operation running 12-hour shifts without mid-day dock dwell. Hot-swap design eliminates the friction of battery-swap workflows and the associated loss of WMS session state.
- IP65/IP67 protection: Covers rain, dust, and light washdown—sufficient for outdoor yard operations and foggy warehouse loading areas. Not submersible, so don't deploy this into ice-bath washdown or dunking-style sanitation cycles.
Deployment Considerations:
- The 4.7-inch HD display is bright enough for indoor-to-outdoor transitions, but in direct sunlight (1000+ lux), brightness can lag behind specialty sunlight-readable devices. If your picking operation includes prolonged outdoor yard work in midday sun, test brightness in situ before full fleet rollout.
- Android app ecosystem means you're dependent on your WMS vendor's Android certification and ongoing support. Confirm your specific WMS version and Android OS level (the CW45 runs current Android) are certified before you commit to procurement—custom app porting can extend timeline and cost.
The CW45-5CBS-UVN-0 excels in high-throughput warehouse picking, manufacturing line-traveler workflows, and outdoor logistics yard operations where workers move continuously and battery weight is a fatigue factor. It is not the choice for extended outdoor sunlight work, deep-submersion washdown, or facilities locked into legacy (pre-Android 9) WMS platforms.
