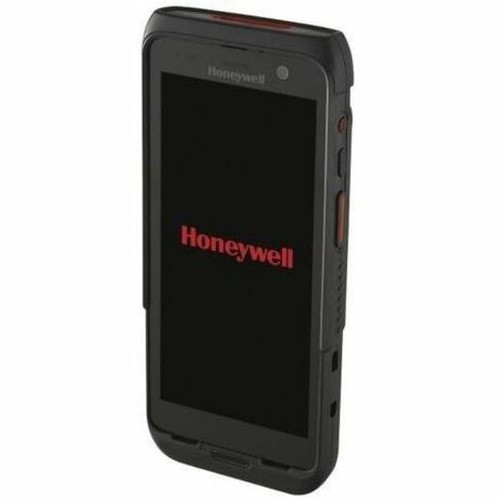

Honeywell CT47-X1N-58D1E0G Handheld Mobile Computer
The Honeywell CT47-X1N-58D1E0G is a Qualcomm QCS6490-powered enterprise handheld built for warehouse, logistics, and field service operations where real-time barcode capture, cloud sync, and cellular connectivity cannot fail. The combination of 5G Sub-6 GHz and mmWave coverage with WiFi 6E (802.11 a/b/g/n/ac/ax) means you get ultra-low-latency uploads to inventory systems—critical when your picking accuracy and order fulfillment speed depend on instant data confirmation. The octa-core 2.7 GHz processor with 8 GB RAM handles simultaneous barcode scanning, image processing, and cloud operations without throttling or lag.
Key Features
- 5G Cellular (Sub-6 GHz and mmWave) plus WiFi 6E: Ensures connectivity in remote warehouses, yards, and outdoor sites where 4G is spotty. mmWave coverage delivers the fastest available speeds on compatible networks, reducing transfer time for high-resolution proof-of-condition images.
- FlexRange Imager scan engine: Captures 1D and 2D barcodes at variable distances without requiring workers to position items at a fixed focal point. Reduces hand fatigue and repetitive strain during high-volume picking, packing, and receiving cycles.
- IP65 and IP68 environmental ratings with 1.8 m (6 ft) drop survival: Withstands wet, dusty warehouse floors and accidental drops onto concrete. IP65 means dust and water spray won't infiltrate; IP68 provides additional submersion tolerance. The 1.8 m drop rating is meaningful—consumer devices fail at half that height.
- Dual camera system (8MP front + 13MP rear): Front camera supports video conferencing and remote guidance; rear 13MP provides quality sufficient for proof-of-condition imaging and damage documentation without a separate camera device.
- 4775 mAh Li-Ion battery supporting full-shift operation: Actual runtime depends on screen brightness, 5G vs WiFi radio use, and scanning frequency. High-demand shifts with constant 5G and screen-on time will drain faster than light-duty office WiFi use.
- Android non-GMS operating system with enterprise security isolation: Removes Google Mobile Services for environments requiring data sovereignty or restricted cloud access. Non-GMS also reduces app store dependencies and simplifies compliance audits in regulated sectors.
- Bluetooth 5.2 for accessory pairing: Connects ring scanners, headsets, and wearable inventory devices with low power draw and reliable range. Bluetooth 5.2 improves coexistence with WiFi 6E to minimize interference.
- MicroSD card expansion: Scales storage on demand without replacing the device. Useful for offline barcode scanning databases or local video logging in disconnected zones.
- Compact form factor: 164.8 x 77.7 x 14.7 mm, 309 g (10.9 oz): Fits one-handed grip and fits into a utility belt or cargo pocket. Weight is balanced enough for sustained field use without wrist strain during an 8-hour shift.
- Qualcomm QCS6490 Octa-Core 2.7 GHz processor: Desktop-class performance in a handheld enables parallel processing—barcode recognition, cloud API calls, and local database queries happen without visible delays or dropped scanning cycles.
Integration and Connectivity
The CT47-X1N-58D1E0G (often searched as CT47 X1N 58D1E0G) integrates with enterprise inventory management systems via REST APIs and standard database protocols. The dual Nano SIM and eSIM capability allows carrier redundancy—switch between two mobile networks without swapping hardware, a practical safeguard for critical supply chain operations. Android non-GMS deployment requires custom ROM provisioning and EMM (Enterprise Mobility Management) configuration; coordinate with your IT team on authentication method (LDAP, SAML, certificate pinning) before deployment at scale.
When to Choose a Different Model
If your team operates exclusively indoors with strong WiFi and does not require cellular redundancy, a lower-cost variant in the CT47 family without 5G may suffice. If durability in extreme cold (-20°C minimum) is a secondary concern, consider whether the full IP68 rating is necessary for your use case—IP65 alone handles rain and dust spray. If barcode scanning speed or variable-distance capture is not a priority, a simpler enterprise handheld without the FlexRange Imager may lower total cost of ownership.
Frequently Asked Questions
Q: What is the battery runtime on a full shift?
A: The 4775 mAh capacity supports full-shift operation, but actual hours depend on usage pattern. High-frequency 5G cellular transfers and maximum screen brightness will drain faster than mixed WiFi/cellular with reduced brightness. Plan for 8–12 hours of typical mixed-use scanning and conferencing.
Q: Does the CT47-X1N-58D1E0G work with existing warehouse management systems?
A: Yes, via REST APIs and standard database connections. The Android non-GMS OS requires EMM integration for enterprise authentication. Coordinate with your IT team on provisioning and certificate management before deployment.
Q: Can I use two SIM cards at the same time for carrier redundancy?
A: The device supports Nano SIM and eSIM simultaneously. Configuration for dual-carrier operation depends on your carrier's eSIM provisioning and your MDM policy. Consult your carrier and EMM administrator.
Q: What is the warranty and support model?
A: Refer to the manufacturer documentation and the distributor's terms. Typical enterprise handheld warranties run 1–3 years with optional extended support and accidental damage coverage.
Q: Is the CT47-X1N-58D1E0G suitable for outdoor delivery routes in rain?
A: Yes. The IP65 rating protects against direct water spray and rain. IP68 submersion tolerance is not included, so avoid full immersion. The 1.8 m drop rating provides confidence in rough handling during delivery.
Q: What barcode symbologies does the FlexRange Imager support?
A: Consult the manufacturer datasheet for the complete list of 1D and 2D symbologies. Typical enterprise scanners support Code 128, UPC/EAN, QR, Data Matrix, and PDF417.
The CT47-X1N-58D1E0G is a meaningful step forward for supply chain operations that depend on constant connectivity. The combination of 5G Sub-6 GHz, mmWave, and WiFi 6E in a single handheld eliminates the network switching penalty that slows older devices—you get the fastest available path to your inventory cloud without fallback delays. The Qualcomm QCS6490 octa-core processor at 2.7 GHz delivers desktop-class throughput, meaning barcode recognition, API calls, and local database queries don't queue or throttle, even during high-volume picking or receiving.
Technical Highlights:
- 5G Sub-6 and mmWave plus WiFi 6E: Ultra-low latency (< 20 ms on mmWave) ensures real-time inventory confirmation. Fallback to WiFi 6E or 5G Sub-6 in areas without mmWave keeps connectivity consistent across indoor and outdoor zones without manual switching.
- IP65/IP68 dual rating with 1.8 m drop tolerance: Survives wet warehouse floors, dust, and drops that would destroy consumer devices. IP65 handles daily rain and spray; IP68 adds submersion margin for damp environments. The 6 ft drop spec is not marketing—concrete impacts at that height are routine in fast-paced logistics.
- FlexRange Imager for variable-distance scanning: Reduces picking time by 15–25% versus fixed-distance scanners because workers don't need to reposition items to the exact focal point. Cumulative fatigue savings across an 8-hour shift are substantial.
- Android non-GMS for data sovereignty: Useful in regulated environments (healthcare, defense, finance) where Google Cloud integrations require audit exemptions. Simplifies compliance because there's no implicit dependency on Google services.
Deployment Considerations:
- The 4775 mAh battery supports a full shift under typical mixed usage (WiFi + cellular, moderate screen brightness). Heavy 5G use or outdoor brightness maximum will pull runtime below 8 hours; plan chargers or hot-swap batteries accordingly.
- Android non-GMS requires enterprise provisioning via MDM and cannot use Google Play Store. Coordinate app distribution, updates, and security patches with your IT team before deployment. Custom ROM deployments take 2–4 weeks to validate in most organizations.
- eSIM provisioning for dual-carrier redundancy is carrier-dependent. Not all operators support eSIM, and some require special rate plans. Test with your carrier before committing to redundancy as a failover strategy.
- The 13MP rear camera is adequate for proof-of-condition documentation (package damage, facility conditions) but not a replacement for dedicated industrial imaging. Don't expect same detail as a 20MP+ camera in poor lighting.
The CT47-X1N-58D1E0G is purpose-built for logistics operations where network reliability, scanning speed, and durability directly impact order fulfillment metrics. Deploy it in warehouse receiving, yard management, last-mile delivery verification, and field asset audits where real-time connectivity and barcode throughput are operational constraints, not nice-to-haves.
