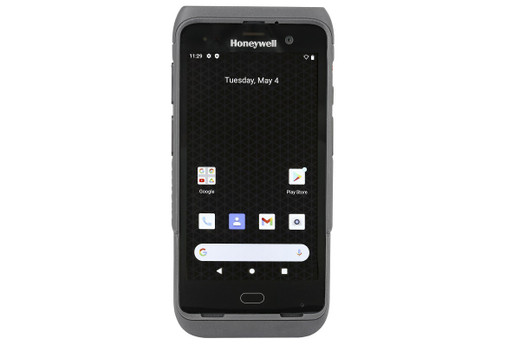

Honeywell CT45P-X0N-3ED100G Rugged Android Mobile Computer
The Honeywell CT45P-X0N-3ED100G is a purpose-built enterprise handheld mobile computer for warehouse, retail, and field service environments where barcode scanning, real-time data entry, and durability are non-negotiable. Built on the Qualcomm QCS4290 octa-core processor running at 2.0 GHz with 6 GB RAM, this device handles simultaneous WMS transactions, barcode image processing, and wireless synchronization without the lag that slows down high-transaction environments. The 64 GB internal storage with microSD expansion supports both on-device applications and local data caching—useful when network availability drops during shift changes or device roaming between facility zones.
Key Features
- FlexRange XLR Imager: Extended-range 1D/2D barcode engine captures codes from near-contact distance up to 20+ meters. Eliminates the need for separate long-range scanners on high-shelf inventory or pallet reads, consolidating hardware and training requirements into a single device.
- 5.0-inch Full HD display (1920 x 1080) with day/night imaging: Indoor brightness reaches 600+ nits, outdoor visibility remains usable; night-mode switches automatically in low-light loading dock or outdoor asset-tracking workflows. Reduces documentation delays when visual proof-of-condition is required.
- WiFi 6 (802.11 a/b/g/n/ac/ax) connectivity: Achieves 2–3x throughput of WiFi 5 on comparable infrastructure, meaning faster WMS uploads and reduced latency during shift-dense warehouse operations. Future-proofs investment as enterprises upgrade wireless access points.
- Bluetooth 5.1 pairing: Maintains simultaneous connections to ring scanners, Bluetooth headsets, and wearable devices without device reconnection delays—critical when operators work one-handed or need to keep hands free during pallet movement.
- IP65 ingress protection with 1.8 m (6 ft) drop rating: Water spray and dust won't degrade performance during dock washdown or heavy daily handling. Six-foot drops onto concrete occur in real warehouses; this rating means device replacement isn't triggered by drops that would destroy consumer-grade equipment.
- 7000 mAh Li-Ion battery with warm-swap capability: Operational staff can swap batteries between shifts or during extended operations without powering down, eliminating device unavailability during shift handoffs—a key cost factor in 24/7 operations.
- 8 MP front and 13 MP rear cameras: Rear camera handles document scanning and high-resolution condition photos for damage claims or proof-of-delivery; front camera enables barcode reading or selfie-style proof images. Eliminates the need for separate document scanners or dedicated photo devices.
- Android with Google Mobile Services (GMS): Access to Google Play ecosystem for third-party logistics, scanning, and communication apps, while Honeywell's enterprise MDM integration ensures centralized device management and security policy enforcement across the fleet.
- Compact form factor: 157 x 75 x 14.5 mm, 350 g: One-handed operation is genuinely possible, unlike heavier models. Reduces operator fatigue over 8–10 hour shifts and enables use while carrying small parcels or holding onto equipment.
Deployment Context
The CT45P-X0N-3ED100G is positioned for high-volume, real-time barcode-centric operations. Warehouse receiving and shipping, retail inventory management, field service dispatch with proof-of-work documentation, and asset tracking all benefit from the combination of extended-range scanning, outdoor visibility, and robust battery management. WiFi 6 support makes this a natural fit for enterprises upgrading wireless infrastructure; backward compatibility with WiFi 5 and legacy networks ensures no forklift-upgrade risk during rollout.
Frequently Asked Questions
Q: Does the CT45P-X0N-3ED100G work with standard warehouse management systems?
A: Yes. The device runs Android GMS and connects via WiFi 6 or Bluetooth 5.1 to enterprise networks. It integrates with any WMS that supports HTTPS, REST APIs, or SOAP—which covers the major platforms (SAP, Oracle, NetSuite, Manhattan, Blue Yonder). MDM enrollment allows centralized app deployment and certificate management.
Q: Can I use the CT45P-X0N-3ED100G outdoors in daylight?
A: The 5.0-inch Full HD display with day/night imaging is rated for outdoor brightness conditions. The 600+ nit brightness and anti-glare polarization support outdoor loading dock and asset yard operations. IP65 rating protects against rain spray and dust.
Q: What happens if the battery dies mid-shift?
A: The 7000 mAh battery typically runs a full 8–10 hour shift under normal scanning and data-entry load. The warm-swap battery slot allows operators to exchange a depleted battery for a charged one without shutting down the device—critical for uninterrupted shift operations. Pre-position spare batteries at shift handoff points.
Q: Is the CT45P-X0N-3ED100G rugged enough to survive warehouse drops?
A: The 1.8 m (6 ft) drop rating and IP65 ingress protection handle typical forklift-proximity and hand-drop incidents. This is not a military-spec device—extreme multistory drops or repeated concrete-floor impacts may exceed the rating. The cost-per-unit and ruggedness balance is designed for enterprise warehouse, not underground mining.
Q: Can I expand storage on the CT45P-X0N-3ED100G?
A: Yes. The device includes microSD card expansion support, allowing you to add up to 512 GB or more depending on microSD evolution. Useful for storing high-resolution image buffers, offline maps, or cached WMS snapshots.
Q: How does the FlexRange XLR Imager compare to a handheld ring scanner?
A: The built-in FlexRange XLR captures 1D/2D codes at extended range (up to 20+ meters) without requiring a separate wearable device. This reduces hardware complexity and training overhead. Ring scanners remain useful if you need dedicated hands-free scanning, but the integrated imager consolidates most barcode workflows into the main device.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CT45P-X0N-3ED100G occupies a practical middle ground in the enterprise mobile computer market. The combination of the Qualcomm QCS4290 processor, WiFi 6 support, and FlexRange XLR barcode imager hits a useful sweet spot for operations that demand extended-range scanning (pallets at distance, high-shelf reading) alongside real-time WMS integration. This is not an ultra-rugged military device—it's engineered for the friction points of actual warehouse work: battery swaps during shift changes, outdoor loading dock visibility, and barcode reads at varying distances without operator repositioning.
Technical Highlights:
- Qualcomm QCS4290 Octa-Core 2.0 GHz processor with 6 GB RAM: Handles simultaneous WMS transaction processing, barcode image recognition, and background network sync without perceptible lag. This matters in high-transaction environments (receiving, order fulfillment) where cumulative seconds across hundreds of scans translate to measurable labor cost.
- FlexRange XLR Imager with 20+ meter range: Eliminates the need for separate long-range or ring scanners in most workflows. A single device consolidates barcode capture, cameras, and data entry—reduces training complexity and hardware replacement overhead.
- 7000 mAh warm-swap battery with full-shift runtime: Operational staff swap batteries without powering down, eliminating the device-downtime friction that occurs during shift handoffs in 24/7 facilities. Critical for compliance-heavy environments where device lockout or power-off creates audit gaps.
- WiFi 6 connectivity: Offers 2–3x the throughput of WiFi 5 on equivalent infrastructure. In high-density wireless deployments (multi-floor warehouses, retail chains), this translates to faster uploads and reduced latency during peak transaction windows.
Deployment Considerations:
- The 1.8 m drop rating is rated for hand-drop and typical forklift-proximity incidents, not multistory falls or industrial abuse. If your operation includes drop zones (mezzanines, elevated platforms), validate the rating against actual usage patterns.
- IP65 protects against spray and dust, but not full submersion. If devices are regularly washed on high-pressure dock systems, confirm water-handling protocols with your MDM deployment team.
- The 350 g weight and compact form factor enable one-handed operation, which reduces fatigue in shift-based picking and receiving. However, if your operators wear bulky gloves in cold environments, test screen responsiveness during pilot deployment.
The CT45P-X0N-3ED100G is well-positioned for warehouse automation, retail inventory, and field service dispatch workflows where barcode speed, outdoor durability, and shift-based battery management are driving cost factors. It's not the ruggedness leader in its class, but for the typical high-volume logistics operation, the balance of performance, battery life, and WiFi 6 future-proofing justifies the investment cycle.
