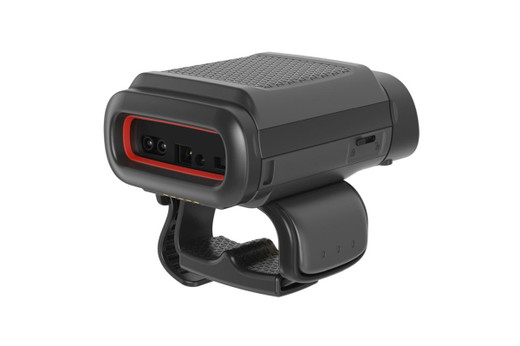

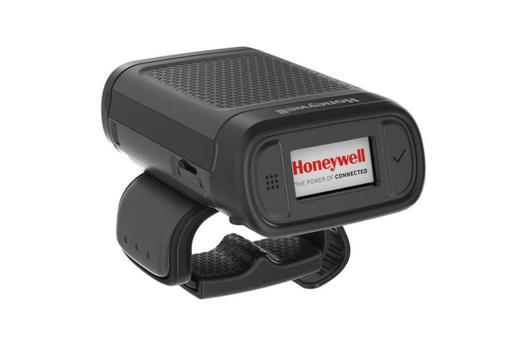

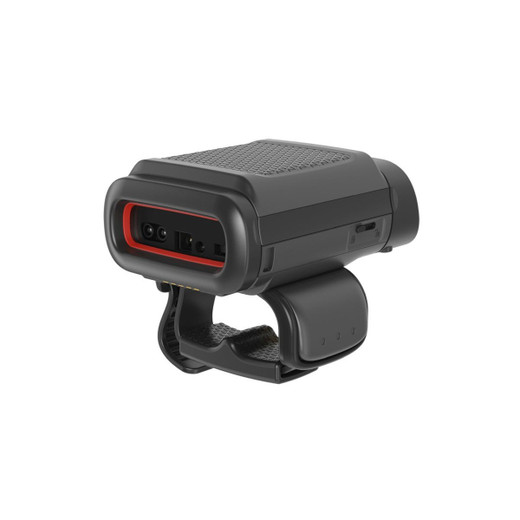

Honeywell 8680I505FNGRSTRAP2 Wearable Ring Barcode Scanner
The Honeywell 8680I505FNGRSTRAP2 is a hands-free wearable ring scanner purpose-built for warehouse, manufacturing, retail, and logistics operations where workers need to capture barcode data without interrupting workflow. At 26 grams, this compact device balances durability with comfort—critical when operators wear it continuously throughout a shift. Unlike handheld scanners that require constant gripping, the ring form factor eliminates operator fatigue and keeps both hands available for material handling, picking, or sorting tasks.
Key Features
- 1D/2D Barcode Decoding: Reads linear and 2D symbologies with aggressive decoding algorithms, meaning the scanner handles high-density, damaged, and poorly printed barcodes that would stall slower engines—a real advantage in high-velocity environments where time-to-scan matters.
- Wearable Ring Form Factor: Slip-on finger strap design frees both hands during scanning, enabling simultaneous material handling. Eliminates the reach-and-grip cycle of handheld models, reducing fatigue and repetitive strain during 8–10 hour shifts.
- IP55 Environmental Rating: Dust and water spray won't disable the scanner—critical in warehouse dock areas, wet manufacturing floors, and outdoor logistics hubs. IP55 stops short of full submersion (that requires IP67), but covers splashes, washdown spray, and dusty picking environments.
- Wireless Bluetooth Connectivity: Pairs with mobile computers, tablets, and point-of-sale systems without physical cables. No tethering means workers move freely through warehouse aisles or across a manufacturing floor without being constrained by a scanner cord.
- 420 mAh Rechargeable Battery: Supports a full shift of continuous scanning before requiring a charge dock. Minimizes downtime and eliminates the need to swap hot-swap batteries mid-shift in high-throughput operations.
- Day/Night Vision Capability: Built-in illumination lets the scanner capture barcodes under varied lighting—dim warehouse corners, bright outdoor dock areas, and nighttime receiving operations. Expands usability across 24/7 facility schedules without lighting upgrades.
- Ultra-Lightweight Design: At 26 grams, the 8680i won't fatigue fingers or wrists during all-day wear. Lighter than most handheld scanners, making it the ergonomic choice for high-volume picking environments where per-scan speed and operator comfort directly impact throughput.
Integration & Compatibility
The 8680I505FNGRSTRAP2 integrates with any Bluetooth-capable host device—standard mobile computers running Android or Windows Mobile, iOS tablets, retail POS terminals, and warehouse management system (WMS) workstations. No proprietary connectivity hardware required. Bluetooth pairing is straightforward, and data flows directly into your existing barcode capture workflow without custom middleware. If your warehouse already runs Bluetooth mobile computers from Zebra, Honeywell, or Intermec, the 8680i pairs immediately.
Deployment Context
The wearable ring scanner excels in high-velocity settings: pick-and-pack operations, inventory counts, manufacturing floor verification, and parcel logistics. Any scenario where operators manage multiple tasks simultaneously benefits from hands-free scanning. In retail stock take, warehouse cycle counts, or manufacturing assembly lines, the ability to scan without setting down materials or stopping motion translates to measurable throughput gains. The IP55 rating makes it viable in dock areas and outdoor yards where handheld scanners risk water damage.
Frequently Asked Questions
Q: What barcode formats does the 8680I505FNGRSTRAP2 decode?
A: The scanner decodes both 1D (linear) barcodes—UPC, Code128, EAN, etc.—and 2D symbologies including QR codes and Data Matrix. The aggressive decoding algorithms handle damaged, low-contrast, and densely printed codes that slower engines miss.
Q: How long does the 420 mAh battery last on a single charge?
A: The battery supports full-shift runtime, meaning an 8–10 hour operational period with typical scanning frequency. Actual duration depends on scanning volume and Bluetooth radio usage. Dock the scanner on the charger overnight or during breaks.
Q: Can the 8680I505FNGRSTRAP2 work in wet environments?
A: Yes. The IP55 rating protects against dust and water spray, so it handles dock washdown, wet manufacturing floors, and rain in outdoor receiving areas. However, IP55 does not guarantee full submersion—if the scanner is dropped into water, the device may not survive. For full submersion, you would need an IP67-rated alternative.
Q: Is there a charging dock included, or do I need to purchase it separately?
A: Check your order details or contact the vendor. The base unit includes a rechargeable battery, but charging dock availability depends on the package configuration.
Q: What host devices pair with the 8680i?
A: Any Bluetooth-capable device—Android/Windows Mobile computers, iOS tablets, retail POS terminals, WMS workstations. No proprietary hardware required. Standard Bluetooth Classic pairing applies.
Q: How durable is the finger strap, and can it be replaced?
A: The ergonomic finger strap is designed for all-day comfort and extended wear. Strap durability depends on material and usage. Contact the manufacturer or your reseller about replacement strap availability if the original wears out after months of daily use.
The Honeywell 8680I505FNGRSTRAP2 addresses a critical gap in mobile data capture: enabling continuous scanning without operator fatigue or workflow interruption. The wearable ring design is particularly valuable in high-velocity operations where workers manage multiple tasks simultaneously—picking, packing, sorting, and material handling all happen in parallel. Unlike handheld scanners that demand reach-and-grip cycles, the 8680i keeps both hands free, reducing repetitive strain and accelerating throughput in warehouse and manufacturing environments.
Technical Highlights:
- 26-Gram Weight: Achieves the optimal balance between durability and comfort. A device this light won't fatigue fingers or wrists during 8–10 hour shifts, critical for adoption in high-volume picking operations where operator comfort directly impacts scan speed and accuracy.
- IP55 Rating: Dust and water spray won't disable the scanner, expanding deployment beyond climate-controlled warehouses into dock areas, wet manufacturing floors, and outdoor receiving yards. IP55 is the practical threshold—more rugged than handheld scanners, but less expensive than IP67 variants.
- 420 mAh Battery & Full-Shift Runtime: One charge covers an entire shift, eliminating mid-day battery swaps or charger downtime. In high-volume operations, battery management is overhead; the 8680i eliminates that friction.
- Day/Night Vision: Built-in illumination expands usability across varied lighting—dim warehouse corners, bright outdoor docks, nighttime receiving. No environmental lighting upgrades needed.
Deployment Considerations:
- Bluetooth Pairing Required: Ensure your host devices (mobile computers, POS terminals, tablets) support Bluetooth. Most modern warehouse systems do, but older dedicated barcode terminals may not. Verify compatibility before rollout.
- IP55 Limit: IP55 handles splashes and spray, but NOT full submersion. If scanners are dropped into water regularly (rare in typical warehouse work), IP67-rated alternatives are necessary.
- Charging Infrastructure: Confirm a dock station is included or available. Without a dedicated charger, overnight top-ups become manual and error-prone. Plan for at least one dock per 3–4 wearable scanners to ensure shift-to-shift continuity.
Best Fit: The 8680i is the right choice for high-velocity pick-and-pack, inventory cycles, retail stock take, and manufacturing floor verification where operator speed and comfort matter equally. In facilities running Bluetooth-capable mobile computers and WMS systems, deployment is straightforward. Avoid this model only if submersion, extreme ruggedness, or integration with older non-Bluetooth barcode terminals are requirements.
