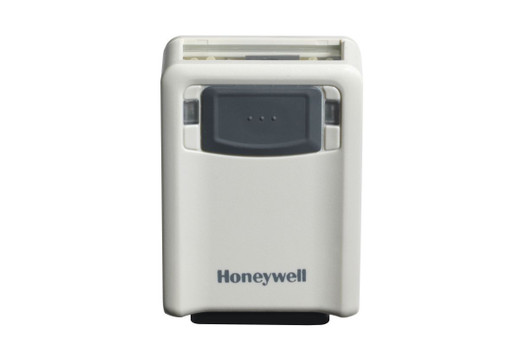

Honeywell 3320G-4USB-0-N Vuquest 3320g Presentation Barcode Scanner

The Honeywell 3320G-4USB-0-N is a wired USB presentation scanner engineered for retail point-of-sale and high-volume checkout environments where barcode throughput and operational continuity matter. This is a genuine OEM device built to read both 1D and 2D symbologies from a fixed presentation position — eliminating the need for handheld scanning in lanes where transaction speed directly affects customer throughput. The 3320G-4USB-0-N (often searched as 3320G 4USB 0 N) integrates directly into existing POS infrastructure without the overhead of wireless pairing, battery management, or latency concerns.

Key Features

• 1D and 2D Barcode Reading: Decodes linear symbologies (Code 128, UPC, EAN) and 2D codes (QR, Data Matrix, PDF417) from a single presentation engine — meaning a single device handles product barcodes and promotional QR codes without switching scanners or manual intervention.
• 15–120 cm Working Range (6–48 inches): Accommodates both tabletop checkout counters and elevated presentation angles without operator adjustment — critical when barcode label placement varies by product size, packaging shape, or orientation. The wide range eliminates the need for multiple scanner positions or workarounds for non-standard item sizes.
• Wired USB Connectivity: Direct USB connection integrates with any POS terminal, cash register, or self-checkout kiosk with standard USB input. No pairing delays, no battery replacements, no wireless interference — the tethered design is ideal for fixed checkout stations where the scanner stays mounted at one location.
• IP42 Environmental Rating: Dust and splash resistance protects against incidental liquid spills and dust common in retail checkout areas. IP42 means the scanner tolerates accidental splashes from beverages, cleaning spray, or condensation — but it is not rated for washdown environments or direct spray-cleaning. If you need submersion or high-pressure washdown capability, specify a higher IP-rated variant in the Vuquest family.
• Compact 0.17 lb Form Factor: Lightweight and space-efficient design fits tight checkout counters without dominating retail workspace. The small footprint reduces mounting complexity and installation time compared to larger presentation scanners, and it won't interfere with payment terminals, bagging areas, or customer space.
• Operating Temperature Range -20°C to +50°C (-4°F to +122°F): Handles both climate-controlled retail interiors and non-climate-controlled warehouse or back-office scanning without thermal shutdown. Useful for seasonal retail locations, outdoor kiosk deployments, or inventory areas without HVAC.

Integration and Compatibility

The 3320G-4USB-0-N integrates via standard USB keyboard emulation or raw barcode output — compatible with virtually all modern POS systems, registers, and software platforms. As a genuine Honeywell barcode scanner, it maintains full manufacturer warranty coverage and technical support eligibility, critical for enterprise deployments where vendor support response time affects transaction continuity. Standardized OEM procurement across retail chains simplifies spare parts management, driver consistency, and lifecycle planning compared to mixed third-party or refurbished alternatives. Direct USB integration also means no additional middleware, gateway devices, or configuration software — plug in and assign device settings through your POS application.

When to Choose a Different Model

If your environment requires washdown or direct spray-cleaning (e.g., produce departments, meat counters, processing areas), specify a higher IP-rated presentation scanner — IP67 or above is necessary. If you need wireless mobility, handheld convenience, or scanning from multiple lanes or positions, evaluate cordless or corded handheld barcode scanners from the Honeywell range instead. If you require specialized integration such as embedded scale functionality, payment symbology reading, or custom barcode formatting, consult a systems integrator to evaluate hybrid or modular POS hardware.

Frequently Asked Questions

Q: Does the 3320G-4USB-0-N work with any USB-equipped POS terminal or cash register?

A: Yes. The 3320G-4USB-0-N uses standard USB connectivity and barcode keyboard emulation, compatible with virtually all modern POS systems, registers, and software. Verify with your POS vendor or integrator that USB barcode input is enabled in your configuration — most systems support it out of the box.

Q: Can I use the 3320G-4USB-0-N for outdoor or wet-environment scanning?

A: IP42 rating means splash and dust resistance — it tolerates incidental spills and dust. It is not rated for direct spray-wash, submersion, or washdown environments. For outdoor or high-moisture scanning, specify an IP67-rated variant in the Vuquest family or contact an integrator for environment-specific recommendations.

Q: What is the cable length on the 3320G-4USB-0-N?

A: Cable length is not specified in the manufacturer documentation. Verify with your supplier or integrator — standard USB extension cables can extend reach if needed, though active repeaters are not recommended for presentation scanners to avoid latency.

Q: Does the 3320G-4USB-0-N require drivers or software installation?

A: Standard USB barcode scanners typically work as plug-and-play keyboard devices without driver installation. Verify with your POS vendor or systems integrator that USB input is configured and enabled. Some POS software requires barcode input field focus or special formatting — your integrator can advise on configuration.

Q: Is the 3320G-4USB-0-N suitable for a self-checkout kiosk?

A: Yes, the wired USB connection and presentation scanning design make it compatible with self-checkout kiosk installations. The 15–120 cm range accommodates customer-facing scanning angles, and IP42 rating tolerates incidental spills in high-traffic kiosk environments.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Honeywell 3320G-4USB-0-N is a straightforward, no-nonsense choice for checkout lanes where barcode throughput and uptime drive transaction velocity. The 1D/2D presentation design eliminates handheld scanning labor and the complications that come with wireless pairing or battery swaps — critical in high-volume retail where checkout speed directly affects customer satisfaction and lane efficiency. The 15–120 cm working range is wider than you might expect, meaning it handles everything from standard product barcodes to irregular packaging without operator adjustment or repositioning. IP42 rating is the practical boundary here: splashes and dust are fine, but washdown is not.

Technical Highlights:

• IP42 Environmental Rating: Dust and splash protection means incidental liquid spills and dust accumulation won't fail the scanner in typical retail checkout environments. But IP42 is not washdown-rated — if you need spray-cleaning capability, that's a different conversation (IP67 or higher in the Vuquest line).
• 15–120 cm Working Range: Wide enough to handle both standard tabletop barcodes and elevated angles on tall products or kiosk mounting without requiring the operator to reposition items or adjust the scanner angle — saves time in high-transaction lanes.
• Wired USB, No Battery Management: Direct USB eliminates wireless pairing overhead, battery replacements, and the periodic dropout issues that plague wireless scanners in congested retail RF environments. Tethered is reliable in fixed-position deployments.
• 0.17 lb Compact Form: Lightweight enough to mount on tight checkout counters without dominating space or requiring heavy-duty mounting hardware. Easier to install and move if lanes are reconfigured.

Deployment Considerations:

• IP42 is splash-resistant, not washdown-proof — if your environment includes spray-cleaning, ice melt spray, or direct washdown, you will need an IP67 variant. Confirm the use case before ordering.
• Cable management: wired USB means you need a clear, protected run from the scanner to the POS terminal or USB hub. In cluttered checkout lanes, route the cable under counters or use protective clips to avoid tripping hazards or accidental disconnects.
• Standard USB keyboard emulation means integration is plug-and-play with most POS systems, but confirm with your POS vendor or integrator that USB barcode input is enabled and tested — some legacy or heavily customized systems may require configuration.

The 3320G-4USB-0-N is positioned for fixed retail checkout deployments where reliability, simplicity, and checkout speed are non-negotiable and washdown capability is not required. Ideal for supermarket lanes, convenience stores, and point-of-sale kiosks where presentation scanning replaces handheld labor and network stability matters more than wireless mobility.
